S&P MBW Hot Water Heating Coil, DN 100 to 400

36299 € 48552 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

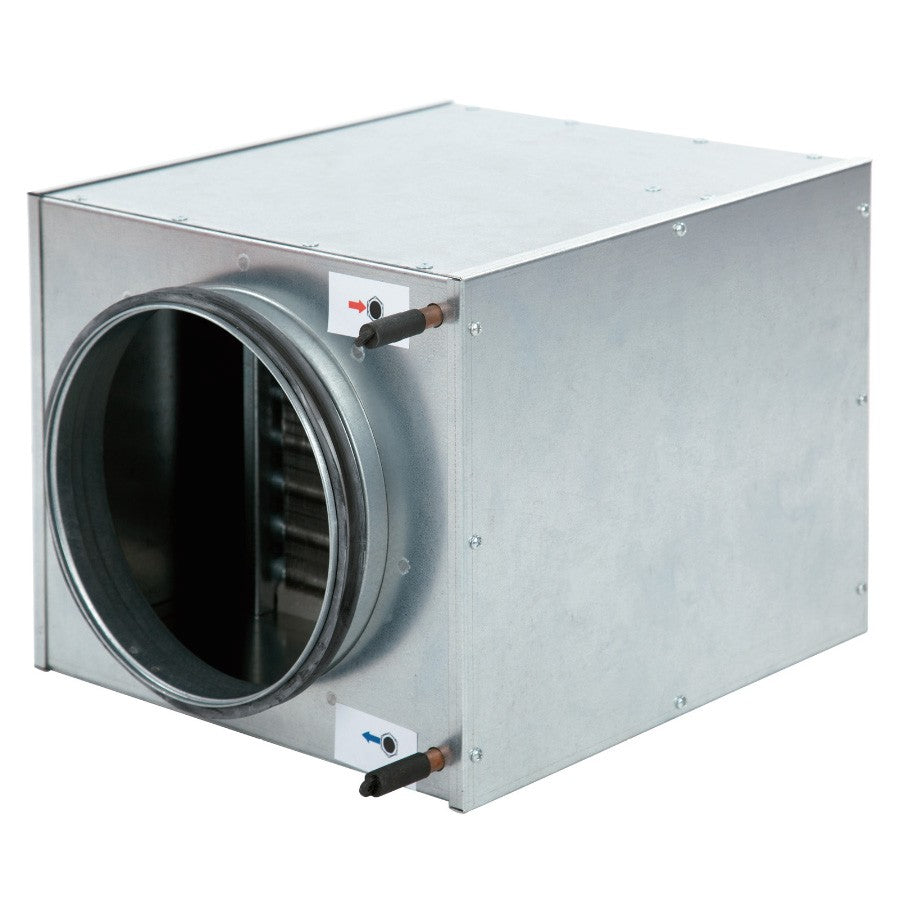

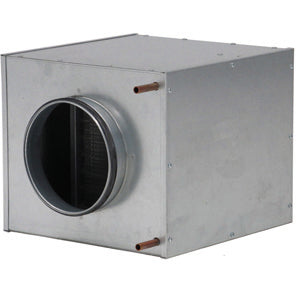

S&P MBW Warmwasser-Heizregister, DN 100 bis 400 is a hot water heater for installation in circular ventilation ducts from the S&P MBW series. The housing is made of galvanised sheet steel with connection spigots and rubber seals; a removable side panel makes inspection and cleaning easier. The air heater consists of aluminium fins pressed onto copper tubes.

According to the manufacturer, the heater should be installed on the pressure side of the fan. The "Model" selection denotes the nominal diameter of the duct connection in mm.

Technical data
SeriesMBW
Installationin circular ventilation ducts, according to the manufacturer preferably on the pressure side of the fan
Housinggalvanised sheet steel, connection spigots with rubber seals, removable side panel
Heat exchangeraluminium fins pressed onto copper tubes
Operating pressuremax. 10 bar
Operating temperaturemax. 100 °C
Reference values of the tableoutdoor air 0 °C; flow/return 80/60 °C or 60/40 °C
ModelArticle numberNominal diameterHeating output 80/60Heating output 60/40Temperature rise 80/60Temperature rise 60/40AirflowWater pressure drop 80/60Water flow 80/60Dimensions W x H x LWeightControl/frost protection (accessory)
MBW-1005132864000100 mm1.7 kW1.0 kW33 K18 K150 m³/h1 kPa70 l/h183 x 225 x 380 mm5.8 kgTRW + THE-F
MBW-1255132864100125 mm2.1 kW1.2 kW29 K17 K220 m³/h1 kPa90 l/h183 x 225 x 380 mm5.8 kgTRW + THE-F
MBW-1605132864200160 mm4.6 kW3.0 kW39 K25 K360 m³/h4 kPa200 l/h258 x 305 x 380 mm7.7 kgTRW + THE-F
MBW-2005132864300200 mm6.1 kW4.0 kW32 K21 K560 m³/h7 kPa270 l/h258 x 305 x 380 mm7.7 kgTRW + THE-F
MBW-2505132864400250 mm9.7 kW6.2 kW32 K20 K900 m³/h4 kPa430 l/h333 x 385 x 380 mm9.6 kgPWW-N1
MBW-3155132864500315 mm16.6 kW10.9 kW35 K23 K1,400 m³/h6 kPa730 l/h408 x 460 x 380 mm11.9 kgPWW-N1
MBW-3555132864600355 mm22.3 kW14.9 kW36 K24 K1,800 m³/h9 kPa980 l/h479 x 534 x 430 mm14.5 kgPWW-N1
MBW-4005132864700400 mm25.6 kW16.9 kW34 K22 K2,300 m³/h9 kPa1,130 l/h479 x 534 x 430 mm20.5 kgPWW-N1

Features
  • According to the manufacturer, screw connections must be provided for the water connection; the heater must be able to be drained and vented during installation.
  • According to the S&P safety note, a frost protection device must be provided which switches off the fan and, if necessary, closes a damper in the outdoor air if the air or return temperature is too low.
  • To protect against contamination and loss of output, S&P recommends installing an MFL air filter box.
  • As accessories, S&P lists the TRW temperature control unit for MBW-100 to MBW-200 (thermostat with 5 m capillary remote sensor and 3/4" straight-through valve, set point 7 to 28 °C, max. 300 l/h) and the THE-F frost protection thermostat, and the PWW-N1 pump hot water control for MBW-250 to MBW-400.
  • Curves for temperature rise and pressure drop and the dimension drawing are given in the data sheet.

Note on variants

The "Model" selection corresponds to the S&P type MBW with the respective nominal diameter (for example 160 = MBW-160, article number 5132864200).
