Sanha  |  SKU: 6910015

Sanha NiroTherm System Pipe, Stainless Steel

3349 €
558 € / m
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: long goods by freight carrier, €89.25 per order, free from €2,975 pipe value, delivery within Germany only
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroTherm system pipe is the stainless steel system pipe for the NiroTherm press fitting system, available as NiroTherm (1.4301) or nickel-free NiroTherm F (1.4520), in bars of 3 m or 6 m. According to Sanha, NiroTherm is intended for closed heating and cooling circuits, technical gases, compressed air, rainwater and treated water and is not permitted for drinking water.

The versions in detail

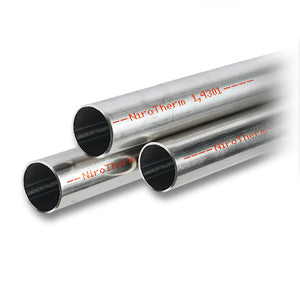

NiroTherm: Sanha NiroTherm system pipe is the system pipe made of stainless steel 1.4301 for the NiroTherm press fitting system, supplied in bars of 3 m or 6 m. According to Sanha, it is not DVGW-approved for drinking water; according to Sanha, NiroTherm is intended for closed heating and cooling circuits, technical gases, compressed air, rainwater and treated water.

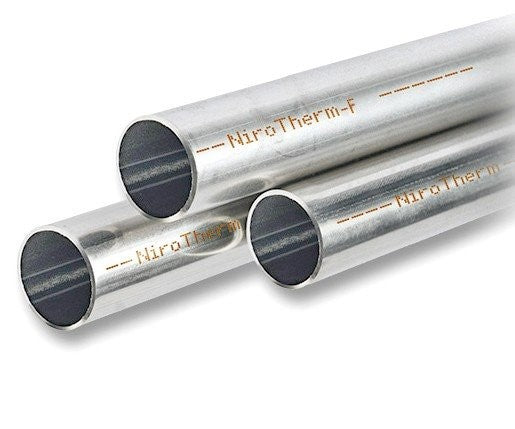

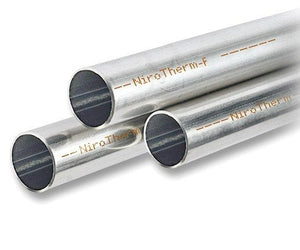

NiroTherm F: Sanha NiroTherm F system pipe is the nickel-free system pipe made of stainless steel 1.4520 for the NiroTherm press fitting system, supplied in bars of 3 m or 6 m. According to Sanha, NiroTherm is intended for closed heating and cooling circuits, technical gases, compressed air, rainwater and treated water; according to Sanha, it is not permitted for drinking water.

Technical data
Strength limited at the upper end (according to Sanha)

Data per version:

Feature NiroTherm NiroTherm F
Material Cr-Ni steel, material no. 1.4301 according to EN 10088 stainless steel 1.4520, nickel-free
Pipe according to EN 10312, longitudinally welded, weld seam smoothed on the outside, pressure-tested (according to Sanha) not specified
Fire behaviour A1 according to EN 13501-1 (according to Sanha) not specified
Pipe dimensions not specified according to EN 10312 and DVGW GW 541 (according to Sanha)
Marking on the pipe not specified brown lettering with standards, manufacturer, batch number, dimension and system name (according to Sanha)

Note on variants

Select version, bar length and size.

Version Bar length Size Item number System Outside diameter d in mm Wall thickness s in mm
NiroTherm (1.4301) 6 m 108x1.5 69100108 NiroTherm, catalogue number 9100 108 1.5
NiroTherm (1.4301) 6 m 139.7x2.0 69100140 NiroTherm, catalogue number 9100 139.7 2.0
NiroTherm (1.4301) 6 m 15x0.6 6910015 NiroTherm, catalogue number 9100 15 0.6
NiroTherm (1.4301) 6 m 168.3x2.0 69100168 NiroTherm, catalogue number 9100 168.3 2.0
NiroTherm (1.4301) 6 m 18x0.7 6910018 NiroTherm, catalogue number 9100 18 0.7
NiroTherm (1.4301) 6 m 22x0.7 6910022 NiroTherm, catalogue number 9100 22 0.7
NiroTherm (1.4301) 6 m 28x0.8 6910028 NiroTherm, catalogue number 9100 28 0.8
NiroTherm (1.4301) 6 m 35x1.0 6910035 NiroTherm, catalogue number 9100 35 1.0
NiroTherm (1.4301) 6 m 42x1.1 6910042 NiroTherm, catalogue number 9100 42 1.1
NiroTherm (1.4301) 6 m 54x1.2 6910054 NiroTherm, catalogue number 9100 54 1.2
NiroTherm (1.4301) 6 m 76.1x1.5 6910076 NiroTherm, catalogue number 9100 76.1 1.5
NiroTherm (1.4301) 6 m 88.9x1.5 6910089 NiroTherm, catalogue number 9100 88.9 1.5
NiroTherm (1.4301) 3 m 108x1.5 69150108 NiroTherm, catalogue number 9150 108 1.5
NiroTherm (1.4301) 3 m 15x0.6 6915015 NiroTherm, catalogue number 9150 15 0.6
NiroTherm (1.4301) 3 m 18x0.7 6915018 NiroTherm, catalogue number 9150 18 0.7
NiroTherm (1.4301) 3 m 22x0.7 6915022 NiroTherm, catalogue number 9150 22 0.7
NiroTherm (1.4301) 3 m 28x0.8 6915028 NiroTherm, catalogue number 9150 28 0.8
NiroTherm (1.4301) 3 m 35x1.0 6915035 NiroTherm, catalogue number 9150 35 1.0
NiroTherm (1.4301) 3 m 42x1.1 6915042 NiroTherm, catalogue number 9150 42 1.1
NiroTherm (1.4301) 3 m 54x1.2 6915054 NiroTherm, catalogue number 9150 54 1.2
NiroTherm (1.4301) 3 m 76.1x1.5 6915076 NiroTherm, catalogue number 9150 76.1 1.5
NiroTherm (1.4301) 3 m 88.9x1.5 6915089 NiroTherm, catalogue number 9150 88.9 1.5
NiroTherm F (1.4520) 6 m 108x2.0 69400108 NiroTherm, catalogue number 9400 108 2.0
NiroTherm F (1.4520) 6 m 15x1.0 6940015 NiroTherm, catalogue number 9400 15 1.0
NiroTherm F (1.4520) 6 m 18x1.0 6940018 NiroTherm, catalogue number 9400 18 1.0
NiroTherm F (1.4520) 6 m 22x1.2 6940022 NiroTherm, catalogue number 9400 22 1.2
NiroTherm F (1.4520) 6 m 28x1.2 6940028 NiroTherm, catalogue number 9400 28 1.2
NiroTherm F (1.4520) 6 m 35x1.5 6940035 NiroTherm, catalogue number 9400 35 1.5
NiroTherm F (1.4520) 6 m 42x1.5 6940042 NiroTherm, catalogue number 9400 42 1.5
NiroTherm F (1.4520) 6 m 54x1.5 6940054 NiroTherm, catalogue number 9400 54 1.5
NiroTherm F (1.4520) 6 m 76.1x2.0 6940076 NiroTherm, catalogue number 9400 76.1 2.0
NiroTherm F (1.4520) 6 m 88.9x2.0 6940089 NiroTherm, catalogue number 9400 88.9 2.0
NiroTherm F (1.4520) 3 m 108x2.0 69450108 NiroTherm, catalogue number 9450 108 2.0
NiroTherm F (1.4520) 3 m 15x1.0 6945015 NiroTherm, catalogue number 9450 15 1.0
NiroTherm F (1.4520) 3 m 18x1.0 6945018 NiroTherm, catalogue number 9450 18 1.0
NiroTherm F (1.4520) 3 m 22x1.2 6945022 NiroTherm, catalogue number 9450 22 1.2
NiroTherm F (1.4520) 3 m 28x1.2 6945028 NiroTherm, catalogue number 9450 28 1.2
NiroTherm F (1.4520) 3 m 35x1.5 6945035 NiroTherm, catalogue number 9450 35 1.5
NiroTherm F (1.4520) 3 m 42x1.5 6945042 NiroTherm, catalogue number 9450 42 1.5
NiroTherm F (1.4520) 3 m 54x1.5 6945054 NiroTherm, catalogue number 9450 54 1.5
NiroTherm F (1.4520) 3 m 76.1x2.0 6945076 NiroTherm, catalogue number 9450 76.1 2.0
NiroTherm F (1.4520) 3 m 88.9x2.0 6945089 NiroTherm, catalogue number 9450 88.9 2.0

Features
  • NiroTherm: For NiroTherm and NiroTherm Industry press fittings (Sanha recommendation).
  • NiroTherm: Marking on the pipe according to Sanha: red lettering with standards and certifications, manufacturer, batch number, dimension and system name.
  • NiroTherm F: For NiroTherm press fittings (Sanha recommendation).
  • NiroTherm F: According to Sanha, the limited strength is intended to allow secure pressing.

Matching NiroTherm press fittings

The NiroTherm system pipe matches the press fittings of the NiroTherm system, for example the NiroTherm tee, 45° bend, double coupling, reducing coupling, end cap and flat-sealing union. For industrial applications there is NiroTherm Industry, such as the NiroTherm Industry tee. According to Sanha, NiroTherm is not approved for drinking water; for drinking water there is the NiroSan system pipe.

A selection for heating is listed under Heating Pipes and Press Fittings, all Sanha systems under Piping Systems. System pipes in bars are shipped as long goods by freight carrier.
