Sanha NiroTherm Bend 45°, 1 or 2 Sockets

Name: Sanha NiroTherm Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 69104115
Price: 4.99 EUR
Availability: InStock

4^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroTherm Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

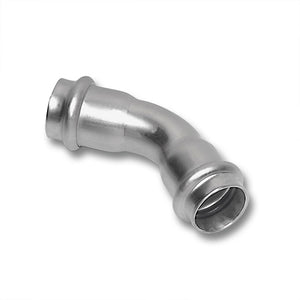

2 sockets: Sanha NiroTherm Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the NiroTherm press fitting system (series 91000) made of stainless steel. According to Sanha, the system is intended for closed heating and cooling circuits, technical gases, compressed air, rainwater and treated water; according to Sanha, it is not permitted for drinking water.

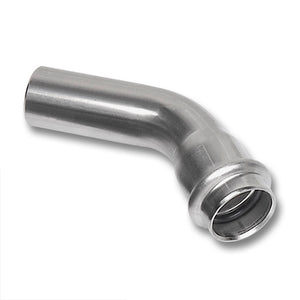

1 socket (socket x spigot): Sanha NiroTherm Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the NiroTherm press fitting system (series 91000) made of stainless steel. According to Sanha, the system is intended for closed heating and cooling circuits, technical gases, compressed air, rainwater and treated water; according to Sanha, it is not permitted for drinking water.

Technical data

Material	stainless steel, material no. 1.4301 according to EN 10088
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Suitable pipes	NiroTherm and NiroTherm F system pipes according to EN 10312 (Sanha recommendation)
Dimensions	d 15 to 168.3 mm

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	NiroTherm, series 91000, catalogue number 91041	NiroTherm, series 91000, catalogue number 91040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	H	L	z	Insertion depth
2 Muffen	108.0	691041108
2 Muffen	139.7	691041140
2 Muffen	15	69104115	15	29	29	7	22
2 Muffen	168.3	691041168
2 Muffen	18	69104118	18	29	29	7	22
2 Muffen	22	69104122	22	34	34	11	23
2 Muffen	28	69104128	28	38	38	14	24
2 Muffen	35	69104135	35	40	40	14	26
2 Muffen	42	69104142	42	56	56	20	36
2 Muffen	54	69104154	54	66	66	26	40
2 Muffen	76.1	69104176
2 Muffen	88.9	69104189
1 Muffe (Muffe x Einsteckende)	108.0	691040108
1 Muffe (Muffe x Einsteckende)	139.7	691040140
1 Muffe (Muffe x Einsteckende)	15	69104015	15	29	39	7	22
1 Muffe (Muffe x Einsteckende)	168.3	691040168
1 Muffe (Muffe x Einsteckende)	18	69104018	18	29	37	7	22
1 Muffe (Muffe x Einsteckende)	22	69104022	22	34	42	11	23
1 Muffe (Muffe x Einsteckende)	28	69104028	28	38	45	14	24
1 Muffe (Muffe x Einsteckende)	35	69104035	35	40	49	14	26
1 Muffe (Muffe x Einsteckende)	42	69104042	42	56	65	20	36
1 Muffe (Muffe x Einsteckende)	54	69104054	54	66	74	26	40
1 Muffe (Muffe x Einsteckende)	76.1	69104076
1 Muffe (Muffe x Einsteckende)	88.9	69104089

Features

Since 2024, according to Sanha, items of this series have new overall dimensions and a slightly smaller insertion depth; items with the new dimensions carry an additional X on the label.
Marking according to Sanha: red dot on the fitting (not permitted for drinking water).
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
Compressed air according to Sanha with residual oil content up to 25 mg/m³.
