Sanha | SKU: 12310016

Sanha MultiFit System Pipe

Name: Sanha MultiFit System Pipe
Brand: Sanha
SKU: 12310016
Price: 39.49 EUR
Availability: InStock

39^{49 €}

7^{90 €} / m

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: long goods by freight carrier, €89.25 per order, free from €2,975 pipe value, delivery within Germany only

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha MultiFit System Pipe combines the following versions in one product: Flex system pipe, 5 m bars, Flex system pipe, coiled, Flex ISO 9 mm system pipe, coiled, PE-RT system pipe for underfloor heating, coiled, Pex system pipe PE-Xc, coiled. Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

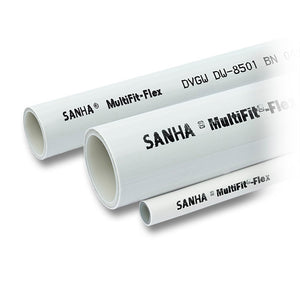

Flex system pipe, 5 m bars: Sanha MultiFit Flex system pipe, 5 m lengths is, according to Sanha, a multilayer plastic system pipe with inner and outer pipes made of PE-RT with increased temperature resistance according to DIN 16833 and a butt-welded aluminium pipe in between. According to the Sanha installation information, MultiFit-Flex system pipes can be used in heating and drinking water installations.

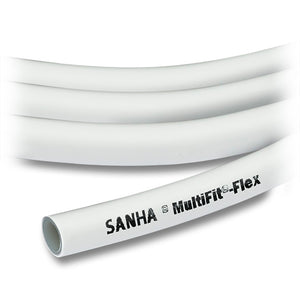

Flex system pipe, coiled: Sanha MultiFit Flex system pipe, coiled is, according to Sanha, a multilayer plastic system pipe with inner and outer pipes made of PE-RT with increased temperature resistance according to DIN 16833 and a butt-welded aluminium pipe in between. According to the Sanha installation information, MultiFit-Flex system pipes can be used in heating and drinking water installations.

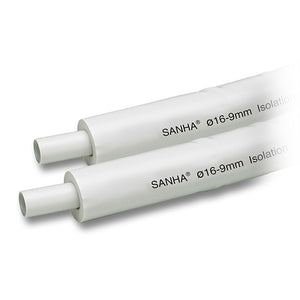

Flex ISO 9 mm system pipe, coiled: Sanha MultiFit Flex ISO system pipe with 9 mm insulation, coiled is, according to Sanha, a multilayer plastic system pipe with inner and outer pipes made of PE-RT with increased temperature resistance according to DIN 16833 and a butt-welded aluminium pipe in between; the pipe has a 9 mm thick thermal insulation. According to the Sanha installation information, MultiFit-Flex system pipes can be used in heating and drinking water installations.

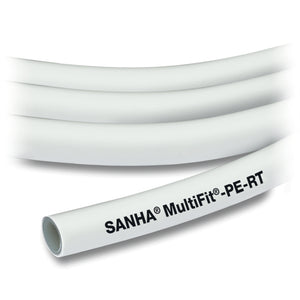

PE-RT system pipe for underfloor heating, coiled: Sanha MultiFit PE-RT system pipe for underfloor heating, coiled is, according to Sanha, an oxygen-tight multilayer plastic system pipe according to DIN 4726 with inner and outer pipes made of PE-RT and an oxygen barrier layer in between. According to the Sanha installation information, it is intended for underfloor heating.

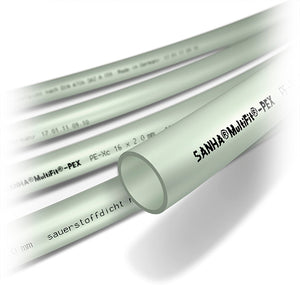

Pex system pipe PE-Xc, coiled: Sanha MultiFit PEX system pipe PE-Xc, coiled is, according to Sanha, an oxygen-tight multilayer plastic system pipe according to DIN 4726 with inner and outer pipes made of PE-Xc and an oxygen barrier layer in between. According to the Sanha installation information, it is intended in particular for heating and cooling applications.

Technical data

Fire behaviour	D-s2 d0 according to EN 13501-1 (according to Sanha)

Data per version:

Feature	Flex system pipe, 5 m bars	Flex system pipe, coiled	Flex ISO 9 mm system pipe, coiled	PE-RT system pipe for underfloor heating, coiled	Pex system pipe PE-Xc, coiled
System	MultiFit-Flex system pipe, catalogue number 23100	MultiFit-Flex system pipe, catalogue number 23000	MultiFit-Flex ISO system pipe, catalogue number 23300	MultiFit-PE-RT system pipe, catalogue number 23500	MultiFit-PEX system pipe, catalogue number 23400
Structure	PE-RT inside and outside (increased temperature resistance according to DIN 16833), butt-welded aluminium pipe in between (according to Sanha)	PE-RT inside and outside (increased temperature resistance according to DIN 16833), butt-welded aluminium pipe in between (according to Sanha)	PE-RT inside and outside (increased temperature resistance according to DIN 16833), butt-welded aluminium pipe in between (according to Sanha)	PE-RT inside and outside, oxygen barrier layer in between, oxygen-tight according to DIN 4726 (according to Sanha)	PE-Xc inside and outside, oxygen barrier layer (EVOH) in between, oxygen-tight according to DIN 4726 (according to Sanha)
Delivery form	in bars, length 5 m (according to Sanha)	coiled, coil length per size see variant (according to Sanha)	coiled, coil length per size see variant (according to Sanha)	coiled (according to Sanha)	coiled (according to Sanha)
Continuous operating temperature	-20 to 70 °C, briefly up to 95 °C (according to the Sanha installation information)	-20 to 70 °C, briefly up to 95 °C (according to the Sanha installation information)	-20 to 70 °C, briefly up to 95 °C (according to the Sanha installation information)	not specified	not specified
Linear expansion coefficient	0.023 mm/(m·K) (according to the Sanha installation information)	0.023 mm/(m·K) (according to the Sanha installation information)	0.023 mm/(m·K) (according to the Sanha installation information)	not specified	not specified
Surface roughness	0.007 mm (according to the Sanha installation information)	0.007 mm (according to the Sanha installation information)	0.007 mm (according to the Sanha installation information)	not specified	not specified
Thermal insulation	not specified	not specified	insulation thickness 9 mm (according to Sanha)	not specified	not specified
Max. continuous temperature	not specified	not specified	not specified	70 °C (according to Sanha)	70 °C (according to Sanha)
Max. operating pressure	not specified	not specified	not specified	6 bar (according to Sanha)	not specified
Nominal pressure	not specified	not specified	not specified	not specified	PN 6 at 70 °C (according to the Sanha installation information)

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	Aluminium layer in mm	Weight empty in kg/m	Weight filled with water in kg/m	Water content in l/m
Flex Systemrohr, Stangen à 5 m	16 x 2.0	12310016	0.20	0.105	0.218	0.113
Flex Systemrohr, Stangen à 5 m	20 x 2.0	12310020	0.25	0.140	0.341	0.201
Flex Systemrohr, Stangen à 5 m	26 x 3.0	12310026	0.35	0.260	0.574	0.314
Flex Systemrohr, Stangen à 5 m	32 x 3.0	12310032	0.50	0.350	0.881	0.531
Flex Systemrohr, Stangen à 5 m	40 x 3.5	12310040	0.50	0.500	1.355	0.855
Flex Systemrohr, Stangen à 5 m	50 x 4.0	12310050	0.60	0.700	2.085	1.385
Flex Systemrohr, Stangen à 5 m	63 x 4.5	12310063	0.80	1.100	3.390	2.290
Flex Systemrohr, aufgerollt	16 x 2.0 (200 m)	12300016	0.20	0.105	0.218	0.113
Flex Systemrohr, aufgerollt	16 x 2.0 (100 m)	12300016100	0.20	0.105	0.218	0.113
Flex Systemrohr, aufgerollt	20 x 2.0 (100 m)	12300020	0.25	0.140	0.341	0.201
Flex Systemrohr, aufgerollt	26 x 3.0 (50 m)	12300026	0.35	0.260	0.574	0.314
Flex Systemrohr, aufgerollt	32 x 3.0 (50 m)	12300032	0.50	0.350	0.881	0.531
Flex ISO 9 mm Systemrohr, aufgerollt	16 x 2.0 (50m)	12330016	0.20			0.113
Flex ISO 9 mm Systemrohr, aufgerollt	20 x 2.0 (50 m)	12330020	0.25			0.201
Flex ISO 9 mm Systemrohr, aufgerollt	26 x 3.0 (25 m)	12330026	0.35			0.314
PE-RT Systemrohr für Fußbodenheizung, aufgerollt	17 x 2.0 (600 m)	12350017
Pex Systemrohr PE-Xc, aufgerollt	16 x 2.0 (200 m)	12340016
Pex Systemrohr PE-Xc, aufgerollt	20 x 2.0 (100 m)	12340020

Features

Flex system pipe, 5 m bars: According to the Sanha installation information, usable with the 3fit-Press system fittings. Areas of application of the 3fit-Press PbFree system according to Sanha: drinking water (only with MultiFit-Flex system pipe), heating and cooling, compressed air (residual oil content up to 25 mg/m³), rainwater and treated water.
Flex system pipe, 5 m bars: DVGW type examination certificate DW-8501CP0140 for the drinking water installation system of metal press connectors (type M-MV) and composite pipes PE-RT/Al/PE-RT, leaky when unpressed, model 3Fit Press PbFree with MultiFit Flex Tube (test bases including DVGW W 534 and W 270), PN 10, valid until 10.04.2030.
Flex system pipe, coiled: According to the Sanha installation information, usable with the 3fit-Press system fittings. Areas of application of the 3fit-Press PbFree system according to Sanha: drinking water (only with MultiFit-Flex system pipe), heating and cooling, compressed air (residual oil content up to 25 mg/m³), rainwater and treated water.
Flex system pipe, coiled: DVGW type examination certificate DW-8501CP0140 for the drinking water installation system of metal press connectors (type M-MV) and composite pipes PE-RT/Al/PE-RT, leaky when unpressed, model 3Fit Press PbFree with MultiFit Flex Tube (test bases including DVGW W 534 and W 270), PN 10, valid until 10.04.2030.
Flex ISO 9 mm system pipe, coiled: According to the Sanha installation information, usable with the 3fit-Press system fittings. Areas of application of the 3fit-Press PbFree system according to Sanha: drinking water (only with MultiFit-Flex system pipe), heating and cooling, compressed air (residual oil content up to 25 mg/m³), rainwater and treated water.
Flex ISO 9 mm system pipe, coiled: DVGW type examination certificate DW-8501CP0140 for the drinking water installation system of metal press connectors (type M-MV) and composite pipes PE-RT/Al/PE-RT, leaky when unpressed, model 3Fit Press PbFree with MultiFit Flex Tube (test bases including DVGW W 534 and W 270), PN 10, valid until 10.04.2030.
PE-RT system pipe for underfloor heating, coiled: According to the Sanha installation information, usable with the 3fit-Press system fittings; for drinking water, Sanha states the 3fit-Press system only in combination with MultiFit-Flex system pipe.
Pex system pipe PE-Xc, coiled: According to the Sanha installation information, usable with the 3fit-Press system fittings; for drinking water, Sanha states the 3fit-Press system only in combination with MultiFit-Flex system pipe.
