InoxAir GmbH  |  SKU: VRDA800-1

InoxAir Roof Fan VRD / VRDI / VRDEC

32349 € 40558 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Roof Fan VRD / VRDI / VRDEC combines the following versions in one product: EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream), single-walled, frequency converter control (VRD), double-walled, frequency converter control (VRDI). Select the required version under Drive and then the matching variant under Size. The details for each version are given below.

The versions in detail

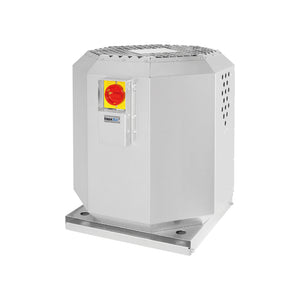

EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream): With VRD-EC and VRDI-EC the EC motor is located outside the air stream according to VDI 2052, with VRDA the motor is located in the air stream. The article number of the variant shows which series you select.

single-walled, frequency converter control (VRD): InoxAir Single-Skin Roof Fan is a single-walled roof fan of the InoxAir VRD series with a 400 V three-phase motor (PROFIline). The motor is located outside the air stream according to VDI 2052; the speed is controllable in operation with a frequency converter (FU).

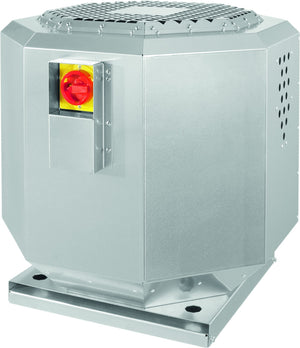

double-walled, frequency converter control (VRDI): InoxAir Double-Walled Roof Fan is a double-walled roof fan of the InoxAir VRDI series with a 400 V three-phase motor (PROFIline). The motor is located outside the air stream according to VDI 2052; the speed is controllable in operation with a frequency converter (FU). The housing has 40 mm sound insulation.

Technical data
Line PROFIline
Outer housing seawater-resistant aluminium
Source InoxAir catalogue Fans, pp. 104 to 107, 142 and 143; InoxAir catalogue Fans, pp. 104 and 105; InoxAir catalogue Fans, pp. 106 and 107

Data per version:

Feature EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) single-walled, frequency converter control (VRD) double-walled, frequency converter control (VRDI)
Design roof fan, vertical air discharge roof fan, single-walled, vertical discharge roof fan, double-walled, vertical discharge
Voltage 230 V, 1~, 50 Hz 400 V, 3~, 50 Hz 400 V, 3~, 50 Hz
Conveyed medium temperature VRD-EC/VRDI-EC up to 120 °C not specified not specified
Control VRD-EC/VRDI-EC via RAE-EC controller, VRDA voltage-controllable via frequency converter, FU 13 assigned in the catalogue via frequency converter, FU 13 assigned in the catalogue
Motor not specified outside the air stream according to VDI 2052 outside the air stream according to VDI 2052
Conveyed medium temperature not specified up to 120 °C up to 120 °C

Note on variants

Select drive and size. Not every combination is available.

Drive Size Item number Catalogue Air flow Pressure Power consumption Voltage Dimensions
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 2,360 m³/h, single-walled, EC motor outside VRDEC2400 VRDEC 2400, p. 105 2360 m³/h 1195 Pa 0.66 kW 230 V, 1~, 50 Hz 514 x 482 mm (W x H), Ø 180 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 2,360 m³/h, double-walled, EC motor outside VRDIEC2400 VRDIEC 2400, p. 107 2360 m³/h 1195 Pa 0.66 kW 230 V, 1~, 50 Hz 553 x 482 mm (W x H), Ø 180 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 2,690 m³/h, single-walled, EC motor outside VRDEC3000 VRDEC 3000, p. 105 2690 m³/h 1240 Pa 0.77 kW 230 V, 1~, 50 Hz 514 x 482 mm (W x H), Ø 180 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 2,690 m³/h, double-walled, EC motor outside VRDIEC3000 VRDIEC 3000, p. 107 2690 m³/h 1240 Pa 0.77 kW 230 V, 1~, 50 Hz 553 x 482 mm (W x H), Ø 180 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 3,230 m³/h, single-walled, EC motor outside VRDEC3500 VRDEC 3500, p. 105 3230 m³/h 1010 Pa 0.80 kW 230 V, 1~, 50 Hz 614 x 551 mm (W x H), Ø 250 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 3,230 m³/h, double-walled, EC motor outside VRDIEC3500 VRDIEC 3500, p. 107 3230 m³/h 1010 Pa 0.80 kW 230 V, 1~, 50 Hz 655 x 551 mm (W x H), Ø 250 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 4,070 m³/h, single-walled, EC motor outside VRDEC4500 VRDEC 4500, p. 105 4070 m³/h 1380 Pa 1.33 kW 230 V, 1~, 50 Hz 614 x 551 mm (W x H), Ø 250 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 4,070 m³/h, double-walled, EC motor outside VRDIEC4500 VRDIEC 4500, p. 107 4070 m³/h 1380 Pa 1.33 kW 230 V, 1~, 50 Hz 655 x 551 mm (W x H), Ø 250 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 5,640 m³/h, single-walled, EC motor outside VRDEC6000 VRDEC 6000, p. 105 5640 m³/h 950 Pa 1.20 kW 230 V, 1~, 50 Hz 742 x 604 mm (W x H), Ø 400 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 5,640 m³/h, double-walled, EC motor outside VRDIEC6000 VRDIEC 6000, p. 107 5640 m³/h 950 Pa 1.20 kW 230 V, 1~, 50 Hz 804 x 604 mm (W x H), Ø 400 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 7,240 m³/h, single-walled, EC motor outside VRDEC8000 VRDEC 8000, p. 105 7240 m³/h 820 Pa 1.24 kW 230 V, 1~, 50 Hz 902 x 776 mm (W x H), Ø 400 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 7,240 m³/h, double-walled, EC motor outside VRDIEC8000 VRDIEC 8000, p. 107 7240 m³/h 820 Pa 1.24 kW 230 V, 1~, 50 Hz 984 x 776 mm (W x H), Ø 400 mm
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 1,100 m³/h VRDA1100-1 VRDA 1100, p. 143 1100 m³/h 220 Pa 82 W 230 V, 1~, 50 Hz see catalogue
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 2,740 m³/h VRDA2800-2 VRDA 2800, p. 143 2740 m³/h 400 Pa 249 W 230 V, 1~, 50 Hz see catalogue
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 3,740 m³/h VRDA3800-2 VRDA 3800, p. 143 3740 m³/h 500 Pa 452 W 230 V, 1~, 50 Hz see catalogue
EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream) 800 m³/h VRDA800-1 VRDA 800, p. 143 800 m³/h 510 Pa 110 W 230 V, 1~, 50 Hz see catalogue
single-walled, frequency converter control (VRD) 11,960 m³/h VRD12000-FU VRD 12000, p. 105 11960 m³/h 1040 Pa 2.42 kW 1136 x 778 mm (W x H), Ø 560 mm
single-walled, frequency converter control (VRD) 14,350 m³/h VRD15000-FU-1 VRD 15000, p. 105 14350 m³/h 1300 Pa 4.12 kW 1135 x 778 mm (W x H), Ø 560 mm
single-walled, frequency converter control (VRD) 18,580 m³/h VRD19000-FU VRD 19000, p. 105 18580 m³/h 720 Pa 2.77 kW 1525 x 1048 mm (W x H), Ø 710 mm
single-walled, frequency converter control (VRD) 6,300 m³/h VRD6000-3 no catalogue data
double-walled, frequency converter control (VRDI) 11,960 m³/h VRDI12000-FU VRDI 12000, p. 107 11960 m³/h 1040 Pa 2.42 kW 1218 x 778 mm (W x H), Ø 560 mm
double-walled, frequency converter control (VRDI) 1,700 m³/h VRDI1418-2 no catalogue data
double-walled, frequency converter control (VRDI) 14,350 m³/h VRDI15000-FU-1 VRDI 15000, p. 107 14350 m³/h 1300 Pa 4.12 kW 1218 x 778 mm (W x H), Ø 560 mm
double-walled, frequency converter control (VRDI) 18,580 m³/h VRDI19000-FU VRDI 19000, p. 107 18580 m³/h 720 Pa 2.77 kW 1525 x 1048 mm (W x H), Ø 710 mm

Features
  • EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream): VRD-EC and VRDI-EC: fan can be swung open for inspection, with isolator switch and condensate grease outlet; according to the catalogue, the drain tray with outlet prevents soiling of the roof with greasy exhaust air.
  • EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream): VRDI-EC: double-walled design with 40 mm sound insulation.
  • EC motor (VRDEC/VRDIEC) or VRDA (motor in air stream): VRDA: backward-curved centrifugal impellers, integrated thermal contact, maintenance-free ball bearings, motor in the air stream; according to inoxair.de with bird and contact protection grille at the outlet.
  • For each size the catalogue lists the matching roof socket (accessory).
  • single-walled, frequency converter control (VRD): Fan can be swung open for inspection.
  • single-walled, frequency converter control (VRD): With isolator switch and condensate grease outlet; according to the catalogue, the drain tray with outlet prevents soiling of the roof with greasy exhaust air.
  • double-walled, frequency converter control (VRDI): Fan can be swung open for inspection.
  • double-walled, frequency converter control (VRDI): With isolator switch and condensate grease outlet; according to the catalogue, the drain tray with outlet prevents soiling of the roof with greasy exhaust air.
