InoxAir Pass-Through Cabinet, also Heated

Name: InoxAir Pass-Through Cabinet, also Heated
Brand: InoxAir GmbH
SKU: ASDS6130
Availability: InStock

2.055^{49 €} ~~2.772^{70 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir pass-through cabinet is a chrome-nickel steel cabinet of the PROFIline range that can be operated from the front and the rear, with base shelf and height-adjustable intermediate shelf, available without heating function or as a pass-through heated cabinet (internally wired for an on-site 230 V supply), each with hinged or sliding doors.

The versions in detail

pass-through cabinet: InoxAir pass-through cabinet is a chrome-nickel steel pass-through cabinet of the PROFIline range with base shelf and height-adjustable intermediate shelf that can be operated from the front and the rear. Available with hinged doors (width 600 to 1200 mm) or sliding doors (width 1300 to 2800 mm).

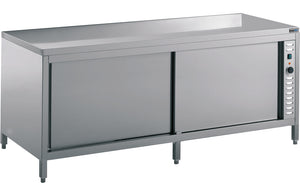

pass-through heated cabinet: InoxAir pass-through heated cabinet is a chrome-nickel steel pass-through heated cabinet of the PROFIline range with base shelf and height-adjustable intermediate shelf. It can be operated from the front and the rear and is internally wired for an on-site supply line (230 V). Available with hinged doors (width 600 to 1200 mm) or sliding doors (width 1300 to 2800 mm).

Technical data

Line	PROFIline
Material	chromium-nickel steel 18/10 (material no. 1.4301, AISI 304)
Surface	Duplo finish
Frame	square tube 40 x 40 mm, welded; from 2500 mm width with centre leg
Feet	height-adjustable
Worktop	edges folded down and hemmed 50 mm on all sides, sound-insulating lining
Drip edge	front and rear
Bottom shelf	notched and welded, with stainless steel profile reinforcement
Intermediate shelf	height-adjustable, with stainless steel profile reinforcement
Access	from the front and from the back
Depth	600, 700 and 800 mm
Working height	850 mm
Source	InoxAir catalogue Stainless steel furniture, p. 382; inoxair.de; InoxAir catalogue Stainless steel furniture, p. 383
Doors	hinged doors (600 to 1200 mm width) or sliding doors (1300 to 2800 mm width), double-walled, vertical handle strip

Data per version:

Feature	pass-through cabinet	pass-through heated cabinet
Electrics	not specified	internally wired for power supply provided by the customer (230 V), cable without plug

Note on variants

Select version, door type and size.

Features

pass-through cabinet: ASDS series according to the InoxAir catalogue Stainless steel furniture (p. 382); the catalogue lists sliding doors for widths of 1300 to 2800 mm.
Welded square tube frame, from 2500 mm width with an additional centre leg; height-adjustable feet.
pass-through cabinet: ASDD series according to the InoxAir catalogue Stainless steel furniture (p. 382); the catalogue lists widths of 600 to 1200 mm with hinged doors, larger widths as ASDS series with sliding doors.
Welded square tube frame; height-adjustable feet.
pass-through heated cabinet: DWS series according to the InoxAir catalogue Stainless steel furniture (p. 383); the catalogue lists sliding doors for widths of 1300 to 2800 mm.
pass-through heated cabinet: Supplied with a cable without plug; the connection is made by the customer.
pass-through heated cabinet: DWSD series according to the InoxAir catalogue Stainless steel furniture (p. 383); the catalogue lists widths of 600 to 1200 mm with hinged doors, larger widths as DWS series with sliding doors.

Data sheets and manuals (PDF)

InoxAir Catalogue Stainless Steel Furniture (PDF)
