InoxAir GmbH  |  SKU: DW1083A-1

InoxAir Wall Spacer

13749 € 14161 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Wall Spacer combines the following versions in one product: wall spacer 50 (wall distance 50 to 150 mm), wall spacer (for pipe clamps or up to 50 mm), adjustable 250 to 360 mm, adjustable 50 to 250 mm, single-walled. Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

wall spacer 50 (wall distance 50 to 150 mm): InoxAir Wall Spacer 50 is an adjustable wall spacer bracket from the accessories of InoxAir's stainless steel pipe systems. Type 83A is designed for a wall distance of 50 to 150 mm and is available for the double-walled (DW) and the single-walled pipe system (EW); in addition, the product contains the double-walled type 836-2 for 50 to 250 mm.

wall spacer (for pipe clamps or up to 50 mm): InoxAir Wall Mount Spacers is a wall spacer. This product combines two article groups: wall spacers for pipe clamps made of galvanised steel (KHW, without pipe clamps) and wall spacer brackets from the accessories of InoxAir's double-walled stainless steel pipe system DW.

adjustable 250 to 360 mm: InoxAir wall spacer adjustable 250 to 360 mm is an adjustable wall spacer for 250 to 360 mm wall distance (type 846), available for the double-walled stainless steel pipe system DW or the single-walled stainless steel pipe system EW from InoxAir.

adjustable 50 to 250 mm, single-walled: InoxAir Adjustable Wall Bracket 50-250mm for Flue Pipe is an adjustable wall spacer bracket for a wall distance of 50 to 250 mm from the accessories of InoxAir's single-walled stainless steel pipe system EW (type 836-2).

Technical data
Source InoxAir catalogue Stainless steel pipes, pp. 187, 197, 199 and 213; inoxair.de; InoxAir catalogue Duct materials, p. 182; InoxAir catalogue Stainless steel pipes, pp. 197 and 198; InoxAir catalogue Stainless steel pipes, pp. 187 and 198; InoxAir catalogue Stainless steel pipes, pp. 199 and 213

Data per version:

Feature wall spacer 50 (wall distance 50 to 150 mm) wall spacer (for pipe clamps or up to 50 mm) adjustable 250 to 360 mm adjustable 50 to 250 mm, single-walled
Design adjustable wall spacer bracket wall spacer adjustable wall spacer bracket, type 846 adjustable wall spacer bracket, type 836-2
Wall distance type 83A 50 to 150 mm, type 836-2 50 to 250 mm not specified 250 to 360 mm, adjustable 50 to 250 mm, adjustable
Height according to the catalogue 50 mm not specified 50 mm not specified
Accessory for stainless steel pipe systems DW (double-walled) and EW (single-walled), PROFIline not specified not specified single-walled stainless steel pipe system EW (PROFIline)
Material stainless steel according to inoxair.de not specified stainless steel according to inoxair.de stainless steel according to inoxair.de
KHW (pipe clamps) not specified wall distance 100 to 250 mm or 200 to 500 mm, galvanised steel, without pipe clamps, packaging unit 2 pieces not specified not specified
DW type 086 not specified wall spacer bracket up to 50 mm for the double-walled stainless steel pipe system DW not specified not specified
DW type 846 not specified adjustable wall spacer bracket 250 to 360 mm (here Ø 300 mm) not specified not specified
Diameters not specified not specified not specified Ø 200, 250, 300, 350, 400, 450 and 500 mm

Note on variants

Select version and size. Not every combination is available.

Version Size Item number Catalogue

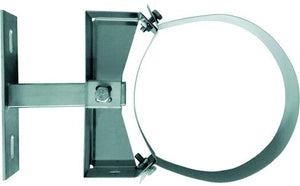

Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 100 mm, double-walled, wall distance 50-150 mm DW1083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 130 mm, double-walled, wall distance 50-150 mm DW1383A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 150 mm, double-walled, wall distance 50-150 mm DW1583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 150 mm, single-walled EW1583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 180 mm, double-walled, wall distance 50-150 mm DW1883A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 180 mm, single-walled EW1883A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 200 mm, double-walled, wall distance 50-150 mm DW2083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 200 mm, single-walled EW2083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 250 mm, double-walled, wall distance 50-150 mm DW2583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 250 mm, single-walled EW2583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 300 mm, double-walled, wall distance 50-150 mm DW3083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 300 mm, single-walled EW3083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 350 mm, double-walled, wall distance 50-150 mm DW3583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 350 mm, single-walled EW3583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 400 mm, double-walled, wall distance 50-150 mm DW4083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 400 mm, single-walled EW4083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 450 mm, double-walled, wall distance 50-150 mm DW4583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 450 mm, single-walled EW4583A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 500 mm, double-walled, wall distance 50-150 mm DW5083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 500 mm, single-walled EW5083A-1
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 130 mm, double-walled, wall distance 50-250 mm, adjustable DW13836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 150 mm, double-walled, wall distance 50-250 mm, adjustable DW15836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 180 mm, double-walled, wall distance 50-250 mm, adjustable DW18836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 200 mm, double-walled, wall distance 50-250 mm, adjustable DW20836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 250 mm, double-walled, wall distance 50-250 mm, adjustable DW25836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 300 mm, double-walled, wall distance 50-250 mm, adjustable DW30836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 350 mm, double-walled, wall distance 50-250 mm, adjustable DW35836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 400 mm, double-walled, wall distance 50-250 mm, adjustable DW40836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 450 mm, double-walled, wall distance 50-250 mm, adjustable DW45836-2
Wandabstandhalter 50 (Wandabstand 50 bis 150 mm) Ø 500 mm, double-walled, wall distance 50-250 mm, adjustable DW50836-2

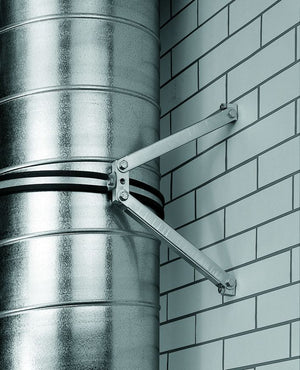

Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) for pipe clamps, 100-250 mm KHW2401 InoxAir catalogue Duct materials, p. 182
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) for pipe clamps, 200-500 mm KHW4801 InoxAir catalogue Duct materials, p. 182
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 100 mm, double-walled, wall distance up to 50 mm, stainless steel DW10086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 130 mm, double-walled, wall distance up to 50 mm, stainless steel DW13086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 150 mm, double-walled, wall distance up to 50 mm, stainless steel DW15086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 180 mm, double-walled, wall distance up to 50 mm, stainless steel DW18086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 200 mm, double-walled, wall distance up to 50 mm, stainless steel DW20086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 250 mm, double-walled, wall distance up to 50 mm, stainless steel DW25086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 300 mm, double-walled, wall distance up to 50 mm, stainless steel DW30086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 300 mm, double-walled, wall distance 250-360 mm, adjustable, stainless steel DW30846-1 InoxAir catalogue Stainless steel pipes, p. 198
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 350 mm, double-walled, wall distance up to 50 mm, stainless steel DW35086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 400 mm, double-walled, wall distance up to 50 mm, stainless steel DW40086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 450 mm, double-walled, wall distance up to 50 mm, stainless steel DW45086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 500 mm, double-walled, wall distance up to 50 mm, stainless steel DW50086-1 InoxAir catalogue Stainless steel pipes, p. 197
Wandabstandhalter (für Rohrschellen bzw. bis 50 mm) Ø 600 mm, double-walled, wall distance up to 50 mm, stainless steel DW60086-1 InoxAir catalogue Stainless steel pipes, p. 197

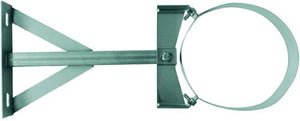

verstellbar 250 bis 360 mm Ø 130 mm, double-walled DW13846-1
verstellbar 250 bis 360 mm Ø 150 mm, double-walled DW15846-1
verstellbar 250 bis 360 mm Ø 180 mm, double-walled DW18846-1
verstellbar 250 bis 360 mm Ø 200 mm, double-walled DW20846-1
verstellbar 250 bis 360 mm Ø 250 mm, double-walled DW25846-1
verstellbar 250 bis 360 mm Ø 350 mm, double-walled DW35846-1
verstellbar 250 bis 360 mm Ø 400 mm, double-walled DW40846-1
verstellbar 250 bis 360 mm Ø 450 mm, double-walled DW45846-1
verstellbar 250 bis 360 mm Ø 500 mm, double-walled DW50846-1
verstellbar 250 bis 360 mm Ø 180 mm, single-walled EW18846-1
verstellbar 250 bis 360 mm Ø 200 mm, single-walled EW20846-1
verstellbar 250 bis 360 mm Ø 250 mm, single-walled EW25846-1
verstellbar 250 bis 360 mm Ø 300 mm, single-walled EW30846-1
verstellbar 250 bis 360 mm Ø 350 mm, single-walled EW35846-1
verstellbar 250 bis 360 mm Ø 400 mm, single-walled EW40846-1
verstellbar 250 bis 360 mm Ø 450 mm, single-walled EW45846-1
verstellbar 250 bis 360 mm Ø 500 mm, single-walled EW50846-1
verstellbar 50 bis 250 mm, einwandig Ø 200 mm, single-walled EW20836-2
verstellbar 50 bis 250 mm, einwandig Ø 250 mm, single-walled EW25836-2
verstellbar 50 bis 250 mm, einwandig Ø 300 mm, single-walled EW30836-2
verstellbar 50 bis 250 mm, einwandig Ø 350 mm, single-walled EW35836-2
verstellbar 50 bis 250 mm, einwandig Ø 400 mm, single-walled EW40836-2
verstellbar 50 bis 250 mm, einwandig Ø 450 mm, single-walled EW45836-2
verstellbar 50 bis 250 mm, einwandig Ø 500 mm, single-walled EW50836-2

Features
  • wall spacer 50 (wall distance 50 to 150 mm): Fastening nut welded according to the catalogue.
  • wall spacer (for pipe clamps or up to 50 mm): KHW: wall spacer for pipe clamps; according to the catalogue, pipe clamps are not included.
  • wall spacer (for pipe clamps or up to 50 mm): DW: accessory of the double-walled pipe system; material according to inoxair.de stainless steel.
  • wall spacer (for pipe clamps or up to 50 mm): Dimensions per diameter see catalogue page.
  • adjustable 250 to 360 mm: Fastening nut welded according to the catalogue.
  • adjustable 50 to 250 mm, single-walled: Fastening nut welded according to the catalogue.
