InoxAir Counter Hood THV and THU

InoxAir Counter Hood THV and THU combines the following versions in one product: THV TOPline, VDI 2052, THU with combination filters. Select the required version under Series and then the matching variant under Size. The details for each version are given below.

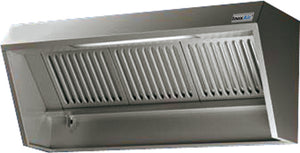

THV TOPline, VDI 2052: InoxAir Counter Hood, Sloped, VDI 2052 is a VDI counter hood in angular form from InoxAir's TOPline, welded and made of chromium nickel steel. According to the manufacturer, it is intended for electrical appliances only. The inner hood body is designed as a collecting and extraction chamber for vapours occurring in surges; the hood is fitted with flame-proof filters of type A.

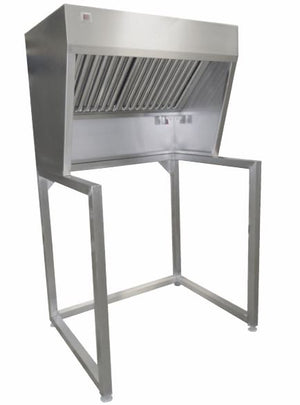

THU with combination filters: InoxAir counter hood THU is a welded sloped counter hood made of chrome-nickel steel, available on an open base frame made of square tube 40 x 40 x 1.2 mm or without base frame (model -OG) with the same hood dimensions according to the catalogue. Combination filters consisting of two filter elements arranged one behind the other (vortex separators) serve as flame protection filters, according to the manufacturer type A separators according to DIN 18869-5 and VDI 2052 with approval.

Data per version:

Select series and size. Not every combination is available.

• THV TOPline, VDI 2052: TOPline: welded version made of chromium nickel steel, material 1.4301; according to the manufacturer welded at the corner and end joints, cut edges protected by folds and rounded burr-free, ground on one side (Duplo finish, grit 320) and coated on one side with plastic film for protection during transport and installation.
• THV TOPline, VDI 2052: Circumferential grease and condensate collection channel made of chromium nickel steel, welded at the bottom; the chrome-plated grease drain cock with ball valve and internal thread sits at the deep-drawn outlet of the channel.
• THV TOPline, VDI 2052: Stainless steel panels close the gaps between the filters.
• THV TOPline, VDI 2052: Filter type A: according to the manufacturer, a separator of construction type A in accordance with DIN 18869-5 and VDI 2052 with TÜV approval, made of chromium nickel steel 1.4301, designed as a vortex filter.
• THV TOPline, VDI 2052: According to the manufacturer, filter type A is wear-free and can be cleaned in the dishwasher.
• THV TOPline, VDI 2052: Lighting cover according to inoxair.de made of polycarbonate, heat-resistant up to 130 °C.
• THU with combination filters: Rear filter can be pulled out, handles supplied loose.
• THU with combination filters: Hood without ceiling cut-out (inoxair.de).
• THU with combination filters: Open base frame made of square tube 40 x 40 x 1.2 mm.
