InoxAir T-Piece 45° and 90°

Name: InoxAir T-Piece 45° and 90°
Brand: InoxAir GmbH
SKU: EW08031-1
Availability: InStock

98^{49 €} ~~188^{00 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir T-Piece 45° and 90°: T-piece with 45° or 90° branch for the InoxAir stainless steel pipe systems, double-walled (DW) or single-walled (EW), and T-pieces made of galvanised sheet steel for ventilation ducts. Options under angle: 90° and 45°.

The versions in detail

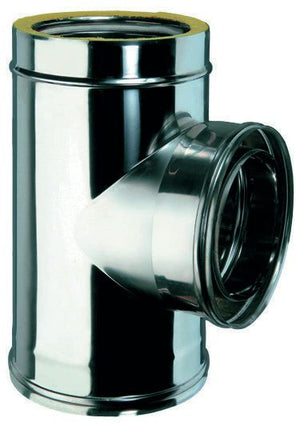

90°: InoxAir T-Piece 90° is a T-piece with 90° branch. This product combines two systems: T-pieces of InoxAir's stainless steel pipe systems, double-walled (DW) or single-walled (EW), and T-pieces made of galvanised steel sheet for ventilation ducts (TST).

45°: InoxAir T-Piece 45° is a T-piece with 45° branch for InoxAir's stainless steel pipe systems (type 030), either for the double-walled (DW) or the single-walled pipe system (EW).

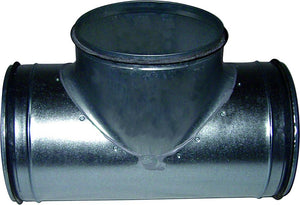

T-piece galvanised, branch equal to duct diameter: InoxAir T-piece is a T-piece made of galvanised steel sheet for round ventilation ducts, with rubber lip seal, in shell or segment design. The branch has the same diameter as the duct.

Technical data

Source	InoxAir catalogue Stainless steel pipes, pp. 187, 189, 199 and 202; InoxAir catalogue Duct materials, p. 169; inoxair.de

Data per version:

Feature	90°	45°	T-piece galvanised, branch equal to duct diameter
Design	T-piece 90°	T-piece 45°, type 030	T-piece, shell or segment
Pipe systems	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline	not specified
Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1	stainless steel exhaust system according to EN 1856-1	not specified
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)	not specified

Note on variants

Select angle and size. Not every combination is available.

Features

90°: DW and EW: fittings of the stainless steel pipe systems.
90°: Dimensions per diameter see catalogue page.
90°: Double-walled fittings on this catalogue page include a locking band according to the catalogue.
90°: According to the catalogue, the double-walled pipe system allows for the linear expansion of the inner pipe and has continuous thermal insulation without cold bridges; connection via push-fit sockets.
90°: According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
90°: According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
45°: Dimensions per diameter see catalogue page.
45°: Double-walled fittings on this catalogue page include a locking band according to the catalogue.
45°: According to the catalogue, the double-walled pipe system allows for the linear expansion of the inner pipe and has continuous thermal insulation without cold bridges; connection via push-fit sockets.
45°: According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
45°: According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
T-piece galvanised, branch equal to duct diameter: Branch with the same diameter as the main duct.
T-piece galvanised, branch equal to duct diameter: Larger diameters (Ø 160 to 450 mm) are included in the product T-piece 90°.
