S&P TREB SG Axial Fan, with Protective Grille, 230 V, Sizes 200 and 300

Name: S&P TREB SG Axial Fan, with Protective Grille, 230 V, Sizes 200 and 300
Brand: S&P Deutschland GmbH
SKU: 9000000104
Price: 512.99 EUR
Availability: InStock

512^{99 €} ~~700^{91 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Model

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P TREB SG is a selection of axial wall-mounted fans from the S&P TREB SG series for single-phase 1~ 230 V in sizes 200 and 300, with 2-pole or 4-pole motor.

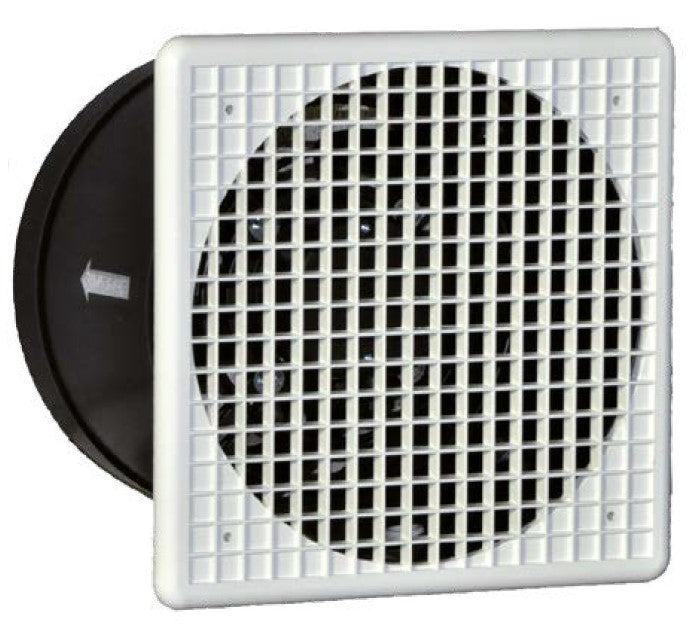

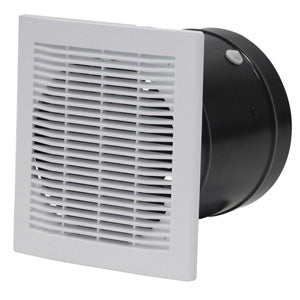

According to S&P, the unit is intended for flush or duct installation in a wall or ceiling construction and can be operated in any axis position. A fixed, flat ventilation grille for the wall finish made of impact-resistant white plastic is included in the scope of delivery.

Technical data

Series	TREB SG, axial wall-mounted fans
Mains connection	1~ 230 V, 50 Hz, capacitor motor
Housing	sheet steel tube sleeve with stiffening beads, entire construction with epoxy polyester coating
Impeller	sickle-shaped axial impeller made of sheet steel with epoxy polyester coating, statically and dynamically balanced according to ISO 1940
Motor	AC motor, insulation class F, protection class IP44, continuous duty S1, thermal contacts with manual reset according to EN 60335-2-80, capacitor in the terminal box on the motor
Ventilation grille	included, fixed, flat, impact-resistant plastic, white
Speed control	by transformer and electronically
Mounting position	any axis position

Model	Article number	Speed	Power input	Motor current	Airflow (free-blowing)	Sound pressure level¹	Weight
TREB/2-200 SG	9000000104	2775 min⁻¹	60 W	0.34 A	845 m³/h	60 dB(A)	3.7 kg
TREB/4-200 SG	9000000106	1475 min⁻¹	35 W	0.19 A	450 m³/h	42 dB(A)	3.6 kg
TREB/4-300 SG	9000000108	1380 min⁻¹	78 W	0.33 A	1,690 m³/h	61 dB(A)	5.4 kg

¹ Sound pressure level in free field, measured at a distance of approx. three times the impeller diameter, at least 1.5 m.

Size	A	B	C	ØD	F	E	H
200	250 mm	174 mm	38 mm	206 mm	13 mm	244 mm	244 mm
300	250 mm	174 mm	38 mm	308.4 mm	13 mm	347 mm	347 mm

Dimensions according to the dimension drawing in the S&P data sheet.

Features

For the external wall finish, S&P lists per size the PER automatic shutter, the PMR manually adjustable shutter, the PAR electric shutter with spring return, the PRG rain guard grille and the TWG weather protection grille made of galvanised sheet steel with bird screen (size 200: PER-200, PMR-200, PAR-200, PRG-200, TWG-200; size 300: PER-315, PMR-315, PAR-315, PRG-315, TWG-315).
Performance curves and sound power spectra according to ISO 5801 are included in the S&P data sheet.

Speed control accessories according to S&P per model:

Model	Step transformer	Speed controller
TREB/2-200 SG	REV-0,5 B or REV-1 B	REB-1 N
TREB/4-200 SG	REV-0,5 B or REV-1 B	REB-1 N
TREB/4-300 SG	REV-0,5 B or REV-1 B	REB-1 N

Note on variants

Type code: TREB/2 or TREB/4 denotes the 2-pole or 4-pole motor, the following number the size. SG stands for the supplied ventilation grille.
