S&P Deutschland GmbH | SKU: 5211318000

S&P TD Inline Duct Fan

Name: S&P TD Inline Duct Fan
Brand: S&P Deutschland GmbH
SKU: 5211318000
Availability: InStock

155^{99 €} ~~188^{02 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

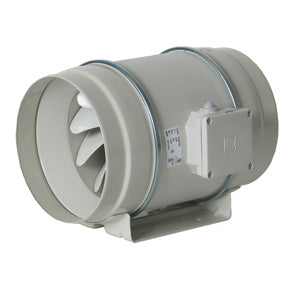

S&P TD: Inline Duct Fan. Available are 16 versions as well as 23 sizes.

Technical data

Manufacturer	S&P
Mounting position	any (any axial position)

S&P type	Item number	Version	Size	Air temperature	Weight	Housing	Impeller	Motor protection	Protection class / thermal class	Design	Motor	Series
TD-160/100	5211318000	TD	160/100	-20 to +40 °C	1.4 kg	impact-resistant PP plastic (models up to 2000); sheet steel with epoxy polyester coating, white (TD-4000 and TD-6000); complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic (models up to 2000); aluminium (TD-4000 and TD-6000)	thermal contacts with manual reset according to EN 60335-2-80 as per series description; TD-6000 with led-out thermal contacts (connection of MSD-2 motor protection switch)	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-250/100	5211320600	TD	250/100	-20 to +40 °C	2.0 kg	impact-resistant PP plastic (models up to 2000); sheet steel with epoxy polyester coating, white (TD-4000 and TD-6000); complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic (models up to 2000); aluminium (TD-4000 and TD-6000)	thermal contacts with manual reset according to EN 60335-2-80 as per series description; TD-6000 with led-out thermal contacts (connection of MSD-2 motor protection switch)	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-350/125	5211306500	TD	350/125	-20 to +40 °C	2.0 kg	impact-resistant PP plastic (models up to 2000); sheet steel with epoxy polyester coating, white (TD-4000 and TD-6000); complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic (models up to 2000); aluminium (TD-4000 and TD-6000)	thermal contacts with manual reset according to EN 60335-2-80 as per series description; TD-6000 with led-out thermal contacts (connection of MSD-2 motor protection switch)	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-4000/355	5211015200	TD	4000/355	-40 to +40 °C	19.0 kg	impact-resistant PP plastic (models up to 2000); sheet steel with epoxy polyester coating, white (TD-4000 and TD-6000); complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic (models up to 2000); aluminium (TD-4000 and TD-6000)	thermal contacts with manual reset according to EN 60335-2-80 as per series description; TD-6000 with led-out thermal contacts (connection of MSD-2 motor protection switch)	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-6000/400	5211016000	TD	6000/400	-40 to +40 °C	26.0 kg	impact-resistant PP plastic (models up to 2000); sheet steel with epoxy polyester coating, white (TD-4000 and TD-6000); complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic (models up to 2000); aluminium (TD-4000 and TD-6000)	thermal contacts with manual reset according to EN 60335-2-80 as per series description; TD-6000 with led-out thermal contacts (connection of MSD-2 motor protection switch)	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-500/150 3V	5211301100	TD 3V	500/150	-20 to +60 °C	2.7 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-500/160 3V	5211301300	TD 3V	500/160	-20 to +60 °C	2.7 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-800/200 3V	5211304900	TD 3V	800/200	-20 to +60 °C	4.9 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-1000/250 3V	5211308000	TD 3V	1000/250	-20 to +60 °C	9.4 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-250/100 ECOWATT	5211021000	TD ECOWATT	250/100	-20 to +40 °C	2.0 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-350/125 ECOWATT	5211022800	TD ECOWATT	350/125	-20 to +40 °C	2.0 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-500/150 ECOWATT	5211023600	TD ECOWATT	500/150	-20 to +40 °C	not stated²	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-500/160 ECOWATT	5211023700	TD ECOWATT	500/160	-20 to +40 °C	2.7 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-800/200 ECOWATT	5211024400	TD ECOWATT	800/200	-20 to +40 °C	4.9 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-1300/250 ECOWATT	5211321500	TD ECOWATT	1300/250	-20 to +40 °C	9.5 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT
TD-2000/315 ECOWATT	5211310000	TD ECOWATT	2000/315	-20 to +40 °C	14.0 kg	models 250 to 800: impact-resistant PP plastic; models 1300 and 2000: sheet steel with epoxy polyester coating, white; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced; models 250 to 800 made of ABS plastic, models 1300 and 2000 made of aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, ball bearings	TD ECOWATT

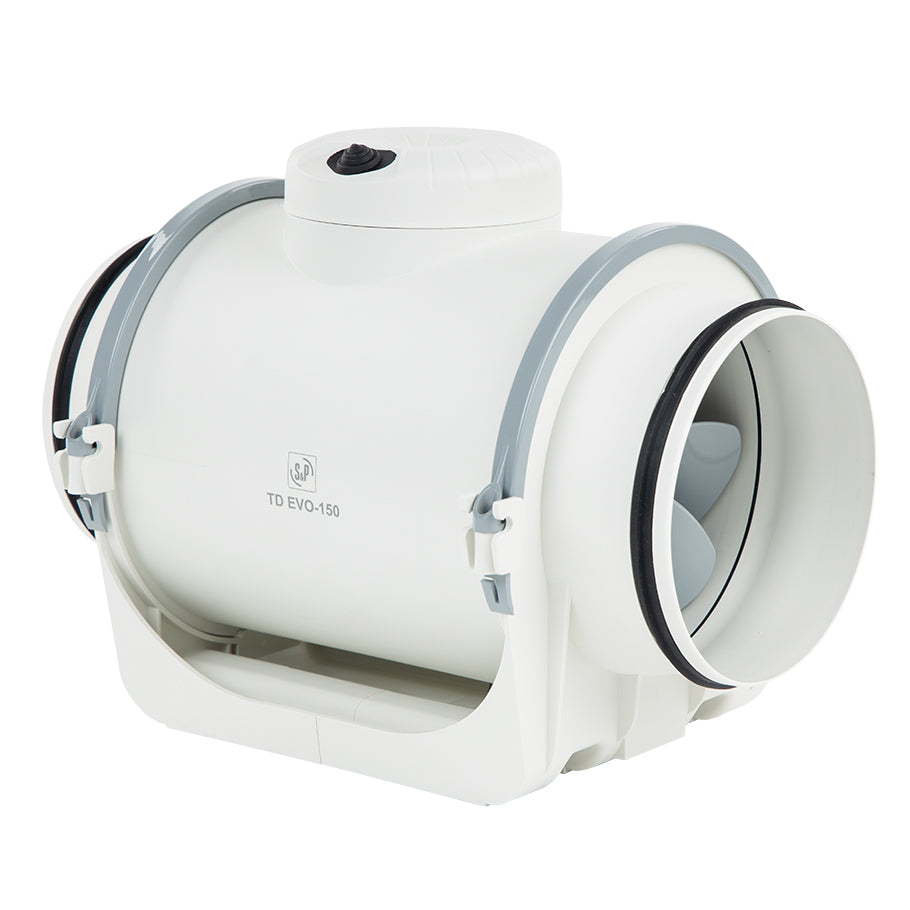

TD EVO-150 N8	5211312200	TD EVO N8	150	-20 to +60 °C	3.0 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-160 N8	5211312300	TD EVO N8	160	-20 to +60 °C	3.0 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-200 N8	5211312400	TD EVO N8	200	-20 to +60 °C	4.1 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-250 N8	5211312500	TD EVO N8	250	-20 to +60 °C	6.2 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-315 N8	5211312600	TD EVO N8	315	-20 to +60 °C	8.4 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO

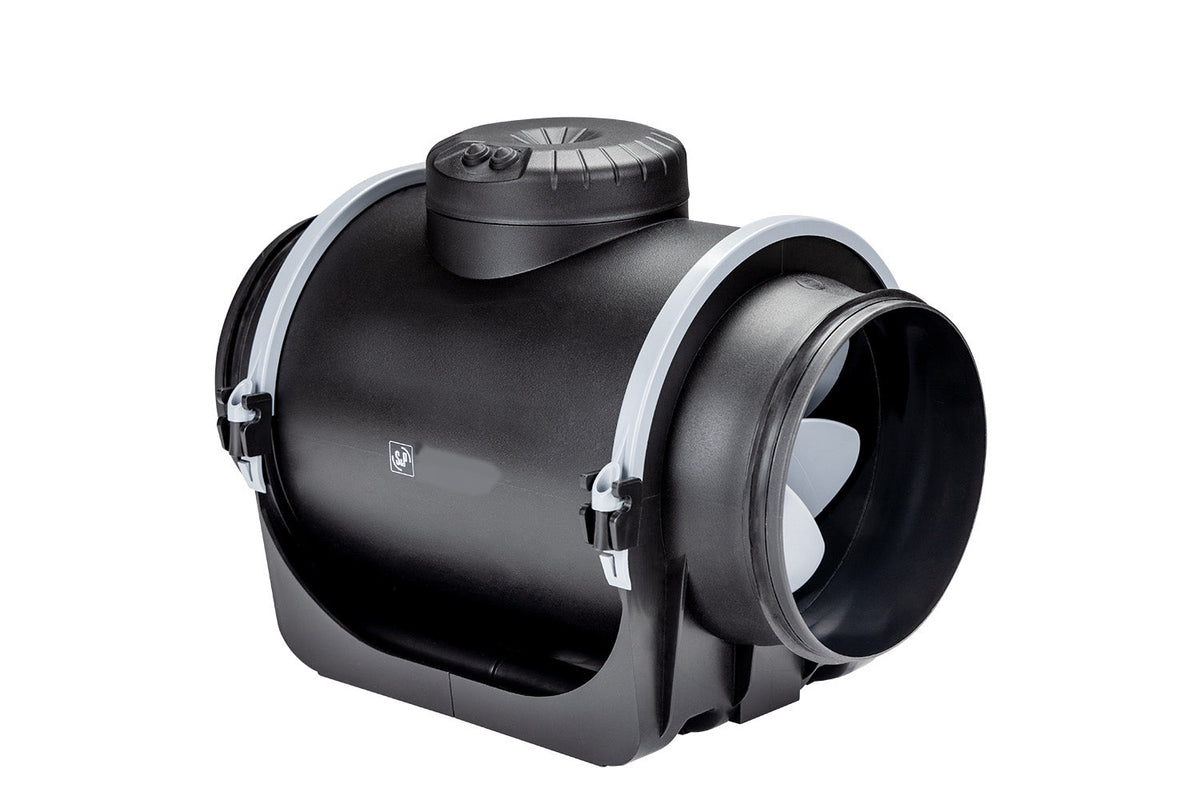

TD EVO-150 PF ECOWATT N8	5211010200	TD EVO PF ECOWATT N8	150	-20 to +40 °C	2.1 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-160 PF ECOWATT N8	5211011000	TD EVO PF ECOWATT N8	160	-20 to +40 °C	2.1 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-200 PF ECOWATT N8	5211011200	TD EVO PF ECOWATT N8	200	-20 to +40 °C	3.4 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-250 PF ECOWATT N8	5211011300	TD EVO PF ECOWATT N8	250	-20 to +40 °C	5.0 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-315 PF ECOWATT N8	5211011400	TD EVO PF ECOWATT N8	315	-20 to +40 °C	7.5 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-100 PF ECOWATT RE	5211009300	TD EVO PF ECOWATT RE	100	-20 to +40 °C	1.7 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-125 PF ECOWATT RE	5211009400	TD EVO PF ECOWATT RE	125	-20 to +40 °C	1.8 kg	PP plastic, impact-resistant, according to the manufacturer; complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow with guide vanes, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, EC motor	EC motor with internal thermal contacts, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO PF ECOWATT
TD EVO-100 RE	5211312000	TD EVO RE	100	-20 to +60 °C	1.7 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-125 RE	5211312100	TD EVO RE	125	-20 to +60 °C	1.8 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	mixed flow, with guide vanes	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO
TD EVO-150 VAR N8	5211007400	TD EVO VAR N8	150	-20 to +60 °C	3.0 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-160 VAR N8	5211007500	TD EVO VAR N8	160	-20 to +60 °C	3.0 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-200 VAR N8	5211007600	TD EVO VAR N8	200	-20 to +60 °C	4.1 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-250 VAR N8	5211007700	TD EVO VAR N8	250	-20 to +60 °C	6.2 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-315 VAR N8	5211007800	TD EVO VAR N8	315	-20 to +60 °C	8.4 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-100 VAR RE	5211007200	TD EVO VAR RE	100	-20 to +60 °C	1.7 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR
TD EVO-125 VAR RE	5211007300	TD EVO VAR RE	125	-20 to +60 °C	1.8 kg	impact-resistant PP plastic, complete with mounting bracket; external terminal box with cover rotatable through 360°	n/a	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, with integrated speed control	AC single-phase motor, single speed, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-EVO VAR

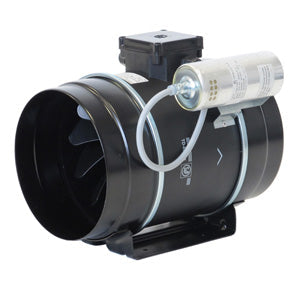

TD-800/200 Ex	5211999800	TD EX	800/200	-20 to +40 °C	5 kg	impact-resistant, conductive PP plastic, black; complete with mounting bracket	mixed flow, statically and dynamically balanced; conductive PP plastic	n/a	IP 44 / B	in-line duct fan, mixed flow, explosion-proof	ATEX capacitor motor, duty S1 according to DIN EN 60034, sealed ball bearings (maintenance-free according to the manufacturer)	TD-ATEX
TD-1100/250 EX	5211995500	TD EX	1100/250	-20 to +40 °C	20 kg	models 1100 and 1200: sheet steel with epoxy polyester coating, black; complete with mounting bracket	mixed flow, statically and dynamically balanced; models 1100 and 1200: aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, explosion-proof	ATEX capacitor motor, duty S1 according to DIN EN 60034, sealed ball bearings (maintenance-free according to the manufacturer)	TD-ATEX
TD-1200/315 EX	5211996900	TD EX	1200/315	-20 to +40 °C	25 kg	models 1100 and 1200: sheet steel with epoxy polyester coating, black; complete with mounting bracket	mixed flow, statically and dynamically balanced; models 1100 and 1200: aluminium	n/a	IP 44 / B	in-line duct fan, mixed flow, explosion-proof	ATEX capacitor motor, duty S1 according to DIN EN 60034, sealed ball bearings (maintenance-free according to the manufacturer)	TD-ATEX
TD-800/200 N 3V	5211304500	TD N 3V	800/200	-20 to +60 °C	4.9 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-1300/250 N 3V N8	5211009000	TD N 3V N8	1300/250	-20 to +60 °C	6.2 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT
TD-2000/315 N 3V N8	5211009100	TD N 3V N8	2000/315	-20 to +60 °C	8.4 kg	impact-resistant PP plastic; complete with mounting bracket, external terminal box	mixed flow, statically and dynamically balanced, ABS plastic	thermal contacts with manual reset according to EN 60335-2-80 as per series description	n/a	in-line duct fan, mixed flow	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-MIXVENT

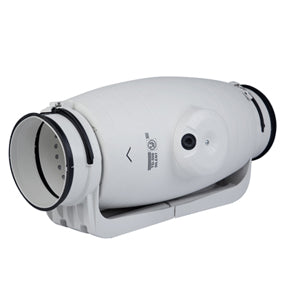

TD-250/100 SILENT	5211360600	TD SILENT	250/100	-20 to +40 °C	5.4 kg	impact-resistant PP plastic with perforated inner skin and sound-absorbing layer, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / B	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-350/125 SILENT	5211360400	TD SILENT	350/125	-20 to +40 °C	5.0 kg	impact-resistant PP plastic with perforated inner skin and sound-absorbing layer, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / B	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-500/150-160 SILENT 3V	5211302100	TD SILENT 3V	500/150 160	-20 to +60 °C	6.0 kg	impact-resistant PP plastic with perforated inner skin and sound-absorbing layer, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / B	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-800/200 SILENT 3V	5211304400	TD SILENT 3V	800/200	-20 to +60 °C	8.7 kg	impact-resistant PP plastic with perforated inner skin and sound-absorbing layer, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / B	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-1000/200 SILENT 3V	5211305300	TD SILENT 3V	1000/200	-20 to +60 °C	8.7 kg	impact-resistant PP plastic with perforated inner skin and sound-absorbing layer, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / B	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-2000/315 SILENT 3V	5212316700	TD SILENT 3V	2000/315	-40 to +60 °C	25.0 kg	sheet steel with epoxy polyester coating, white, with glass fibre sound insulation lining, non-combustible (M0), complete with mounting bracket; external terminal box IP 55	mixed flow, aluminium, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-1300/250 SILENT 3V N8	5212317400	TD SILENT 3V N8	1300/250	-20 to +60 °C	20.0 kg	sheet steel with epoxy polyester coating, white, with glass fibre sound insulation lining, non-combustible (M0), complete with mounting bracket; external terminal box IP 55	mixed flow, aluminium, statically and dynamically balanced	thermal contacts with manual reset according to EN 60335-2-80	IP 44 / F	in-line duct fan, mixed flow, sound-insulated	AC capacitor motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT
TD-350/100-125 SILENT ECOWATT	5211006200	TD SILENT ECOWATT	350/100 125	-20 to +40 °C	5.0 kg	impact-resistant PP plastic with sound-absorbing inner lining, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, sound-insulated, EC motor	EC motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT ECOWATT
TD-500/150-160 SILENT ECOWATT	5211006300	TD SILENT ECOWATT	500/150 160	-20 to +40 °C	6.0 kg	impact-resistant PP plastic with sound-absorbing inner lining, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, sound-insulated, EC motor	EC motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT ECOWATT
TD-1000/200 SILENT ECOWATT	5211006400	TD SILENT ECOWATT	1000/200	-20 to +40 °C	8.7 kg	impact-resistant PP plastic with sound-absorbing inner lining, complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, ABS plastic, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, sound-insulated, EC motor	EC motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT ECOWATT
TD-1300/250 SILENT ECOWATT	5211988100	TD SILENT ECOWATT	1300/250	-20 to +40 °C	9.5 kg	sheet steel with epoxy polyester coating, white, with sound insulation lining, non-combustible (M0), complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, aluminium, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, sound-insulated, EC motor	EC motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT ECOWATT
TD-2000/315 SILENT ECOWATT	5211988200	TD SILENT ECOWATT	2000/315	-20 to +40 °C	14.0 kg	sheet steel with epoxy polyester coating, white, with sound insulation lining, non-combustible (M0), complete with mounting bracket; external terminal box, cover with cable gland rotatable through 360°	mixed flow, aluminium, statically and dynamically balanced	n/a	IP 44 / B	in-line duct fan, mixed flow, sound-insulated, EC motor	EC motor, continuous duty S1, sealed ball bearings (maintenance-free according to the manufacturer)	TD-SILENT ECOWATT

Note on variants

The table above lists the S&P type and the item number for each option.
