S&P Deutschland GmbH  |  SKU: 5148005500

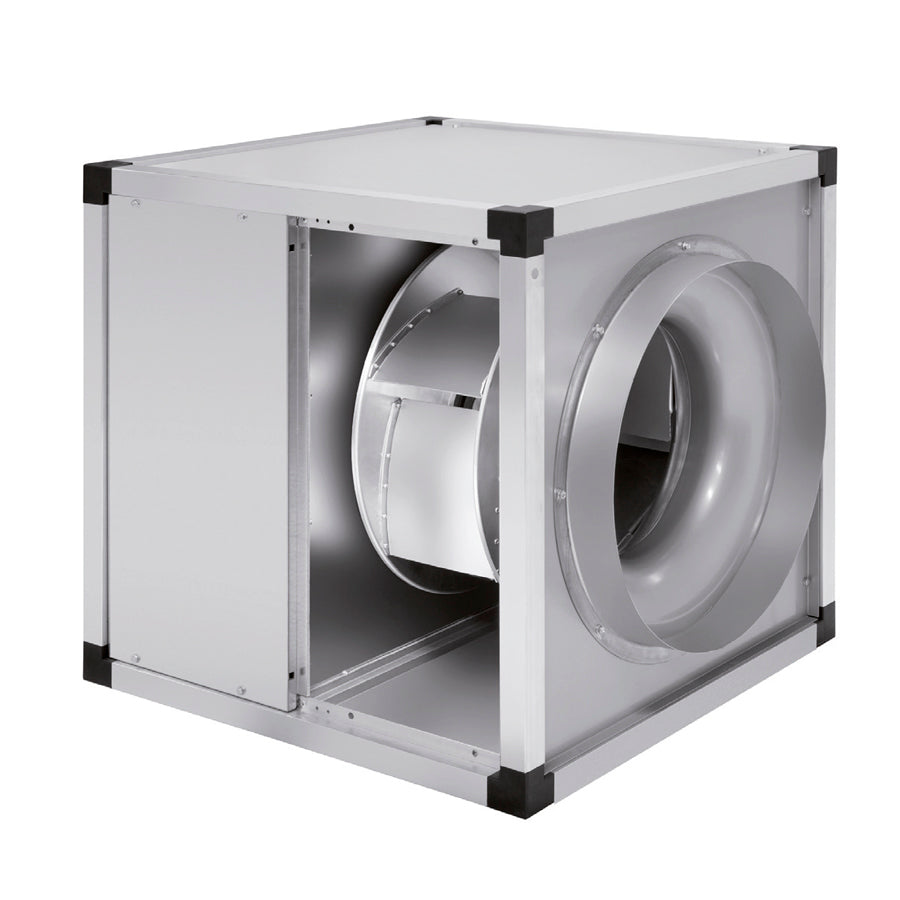

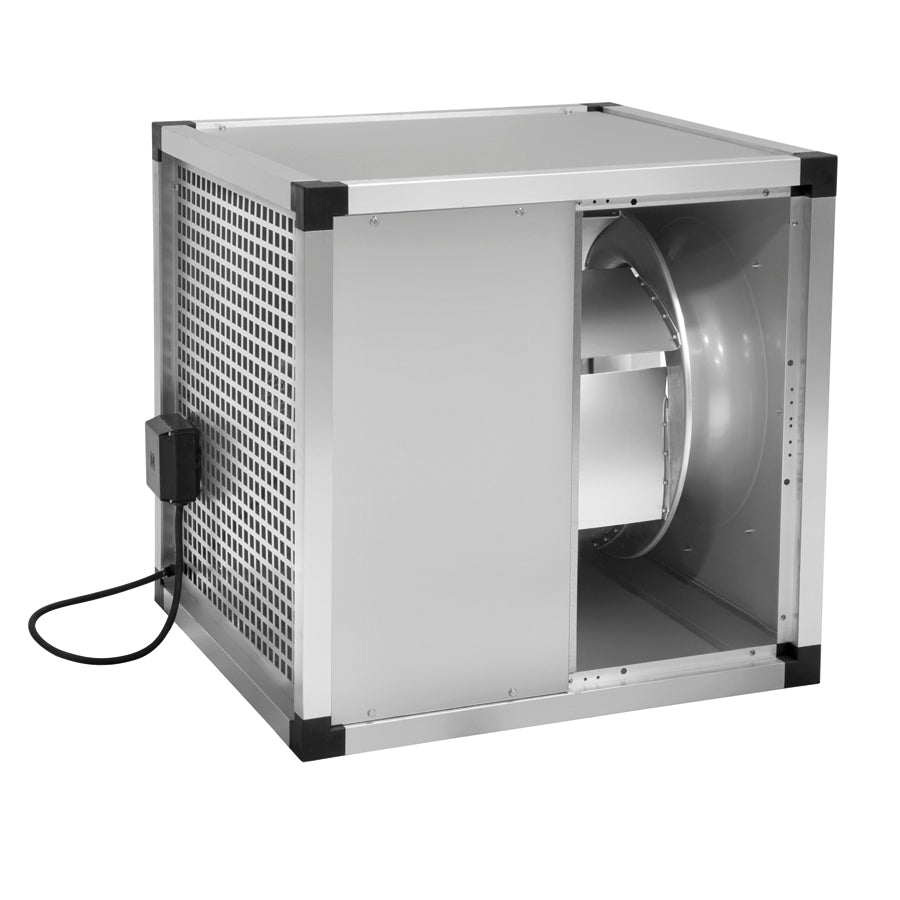

S&P KABT Ventilation Box

3.95449 € 5.65250 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P KABT: Ventilation Box. Available are the versions KABT -ECOWATT, KABT ECOWATT and KABT/4 as well as the sizes 12000/560, 9000/500, 3000/315, 4000/355 and 6000/450.

Technical data
Manufacturer S&P
Impeller centrifugal impeller, free-running, backward-curved, aluminium, statically and dynamically balanced to ISO 1940
Casing self-supporting frame of hollow aluminium profiles with plastic corners, side panels of galvanised sheet steel
Sound insulation 17 mm, non-combustible (M0)
Protection class / insulation class IP55 / F
Air temperature -20 to +100 °C
Condensate drain 1"
Mounting position horizontal shaft only
S&P typeItem numberVersionSizeDuct connectionAir flow¹SpeedPower inputMotor current 230 V² / 400 VDimensions A x B x C³WeightSeriesPower supply
KABT-12000/560 -ECOWATT5148005500KABT -ECOWATT12000/560n/an/an/an/an/an/a98 kgKABB/KABT ECOWATT3~ 400 V, 50/60 Hz
KABT-9000/500-ECOWATT5148005400KABT ECOWATT9000/500n/an/an/an/an/an/a69 kgKABB/KABT ECOWATT3~ 400 V, 50/60 Hz
KABT/4-3000/3155148518700KABT/43000/315Ø 315 mm2,750 m³/h1430 min⁻¹327 W1.20 A / 0.7 A505 x 547 x 405 mm33 kgKABB/KABTsizes 3000 to 9000: 3~ 230/400 V, 50 Hz (on 3~ 400 V in star connection, delta only with S&P frequency inverter FUW N); size 12000: 3~ 400 V, 50 Hz in delta connection
KABT/4-4000/3555148518800KABT/44000/355Ø 355 mm4,000 m³/h1450 min⁻¹561 W2.10 A / 1.2 A550 x 592 x 450 mm40 kgKABB/KABTsizes 3000 to 9000: 3~ 230/400 V, 50 Hz (on 3~ 400 V in star connection, delta only with S&P frequency inverter FUW N); size 12000: 3~ 400 V, 50 Hz in delta connection
KABT/4-6000/4505148518900KABT/46000/450Ø 450 mm6,120 m³/h1495 min⁻¹1094 W4.20 A / 2.4 A630 x 675 x 530 mm58 kgKABB/KABTsizes 3000 to 9000: 3~ 230/400 V, 50 Hz (on 3~ 400 V in star connection, delta only with S&P frequency inverter FUW N); size 12000: 3~ 400 V, 50 Hz in delta connection
KABT/4-9000/5005148519000KABT/49000/500Ø 500 mm8,840 m³/h1430 min⁻¹2022 W6.10 A / 3.5 A710 x 753 x 590 mm75 kgKABB/KABTsizes 3000 to 9000: 3~ 230/400 V, 50 Hz (on 3~ 400 V in star connection, delta only with S&P frequency inverter FUW N); size 12000: 3~ 400 V, 50 Hz in delta connection
KABT/4-12000/5605148518600KABT/412000/560Ø 560 mm11,400 m³/h1460 min⁻¹2673 W400 V only: 5.0 A800 x 844 x 680 mm120 kgKABB/KABTsizes 3000 to 9000: 3~ 230/400 V, 50 Hz (on 3~ 400 V in star connection, delta only with S&P frequency inverter FUW N); size 12000: 3~ 400 V, 50 Hz in delta connection

¹ Free-blowing. ² At 3~ 230 V only with S&P frequency inverter FUW N. ³ Dimensions according to the dimensional drawing in the data sheet. Performance curves, sound pressure and sound power values are given in the S&P data sheet.

¹ Free-blowing at 10 V control voltage; sound pressure level measured at 1.5 m distance in free field. ² Dimensions according to the dimensional drawing in the data sheet. Values for control voltages of 4, 6 and 8 V, performance curves and sound power spectra are given in the S&P data sheet.

Features
  • Side panels and cover can be removed for inspection; according to the manufacturer, the box is supplied complete with mounting brackets.
  • Inlet spigot for connection to standard ducts; on the outlet side, according to S&P, connection to spiral duct via the transition piece USD NV or to rectangular duct via the flexible connector EVD NV.
  • Further mounting accessories according to S&P: flexible connector KAA, vibration dampers KSE-45 (packing unit 4 pieces).

Note on variants

The table above lists the S&P type and the item number for each option.
