S&P Deutschland GmbH  |  SKU: 5145895600

S&P JETLINE Inline Duct Fan

22149 € 28203 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

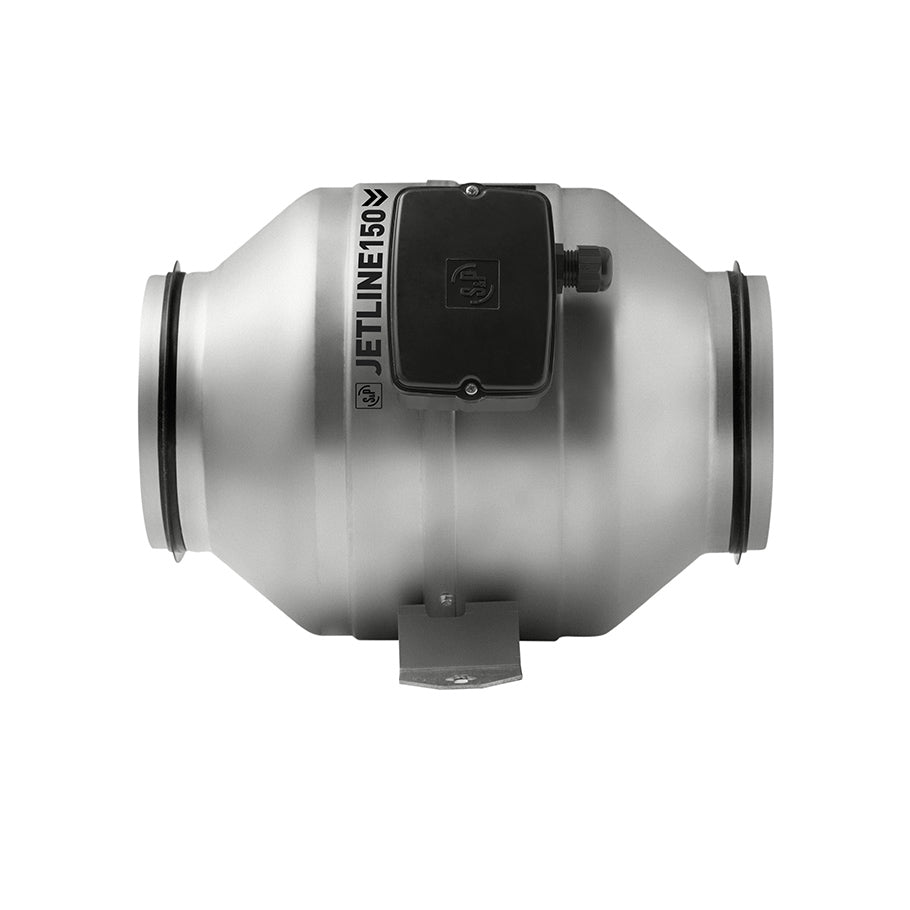

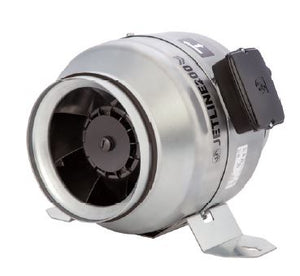

S&P JETLINE: Inline Duct Fan. Available are the versions JETLINE, JETLINE ECOWATT, JETLINE ECOWATT N8 and JETLINE N8 as well as the sizes 100, 125, 160, 200, 250 and 315.

Technical data
Manufacturer S&P
Casing galvanised sheet steel, with mounting bracket
Connection spigots with rubber lip seals, matching common duct diameters
Impeller centrifugal design made of plastic, with guide vanes and diffuser
Terminal box IP65, low profile
Mounting position any axis position
S&P typeItem numberVersionSizeNominal sizeSpeedPower inputMotor currentAirflow (free-blowing)Sound pressure level inlet/casing/outlet¹WeightSeriesMotor
JETLINE-1005145895600JETLINE100DN 1002,650 rpm16 W0.1 A267 m³/h40 / 22 / 39 dB(A)3.0 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80
JETLINE-100 ECOWATT5145897700JETLINE ECOWATT100DN 1002,650 rpm16 W0.14 A258 m³/h40 / 23 / 39 dB(A)2.5 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-125 ECOWATT5145897800JETLINE ECOWATT125DN 1252,650 rpm26 W0.21 A393 m³/h46 / 25 / 46 dB(A)2.8 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-160 ECOWATT N85145898000JETLINE ECOWATT N8160DN 1602,650 rpm60 W0.47 A720 m³/h50 / 31 / 49 dB(A)3.6 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-200 ECOWATT N85145898100JETLINE ECOWATT N8200DN 2002,630 rpm109 W0.75 A1,050 m³/h59 / 40 / 56 dB(A)4.7 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-250 ECOWATT N85145898200JETLINE ECOWATT N8250DN 2502,740 rpm135 W0.88 A1,270 m³/h57 / 43 / 57 dB(A)5.8 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-315 ECOWATT N85145898300JETLINE ECOWATT N8315DN 3152,640 rpm194 W1.28 A1,570 m³/h58 / 42 / 61 dB(A)8.0 kgJETLINE ECOWATTEC motor with internal thermal contacts, continuous duty S1, maintenance-free ball bearings, protection class IP44, insulation class B
JETLINE-125 N85145895700JETLINE N8125DN 1252,680 rpm38 W0.18 A411 m³/h47 / 25 / 47 dB(A)3.4 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80
JETLINE-160 N85145895900JETLINE N8160DN 1602,720 rpm79 W0.4 A750 m³/h52 / 31 / 51 dB(A)4.5 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80
JETLINE-200 N85145896000JETLINE N8200DN 2002,620 rpm117 W0.55 A1,040 m³/h57 / 40 / 54 dB(A)5.6 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80
JETLINE-250 N85145896100JETLINE N8250DN 2502,715 rpm160 W0.67 A1,279 m³/h59 / 45 / 58 dB(A)6.5 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80
JETLINE-315 N85145896200JETLINE N8315DN 3152,595 rpm215 W0.89 A1,610 m³/h59 / 49 / 60 dB(A)8.4 kgJETLINEAC capacitor motor, protection class IP44, insulation class F, continuous duty S1, maintenance-free ball bearings, thermal contacts with manual reset to EN 60335-2-80

¹ Measured at a distance of 1.5 m in free field at point 2 of the characteristic curve.

¹ Measured at a distance of 1.5 m in free field. All values at 10 V control voltage; data for 8, 6 and 4 V are given in the S&P data sheet.

Features
  • Connection spigots with rubber lip seals for common duct diameters.
  • Terminal box IP65; according to S&P, bracket and terminal box do not add to the height.
  • Can be operated in any axis position.
  • For speed control, S&P specifies the REV-1 B 5-step transformer and the REB-1 N speed controller.

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)
