S&P Deutschland GmbH  |  SKU: 5700612800

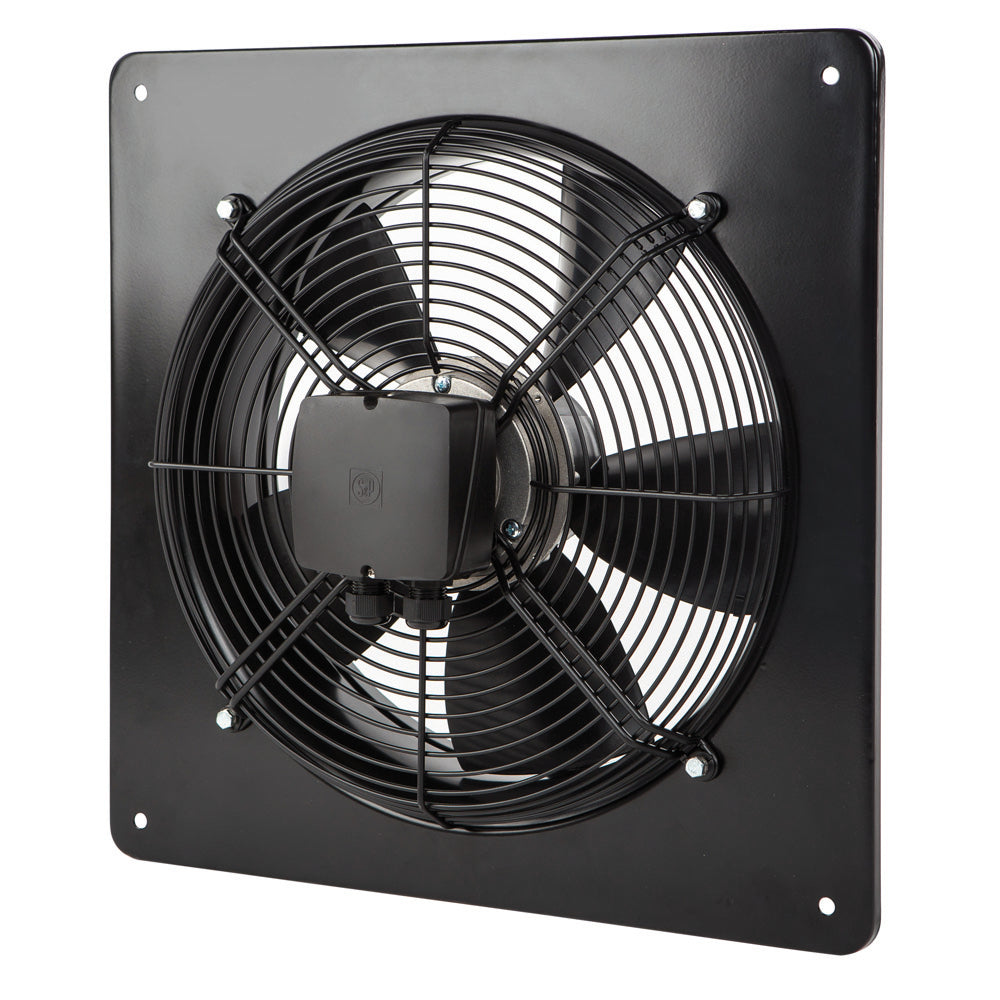

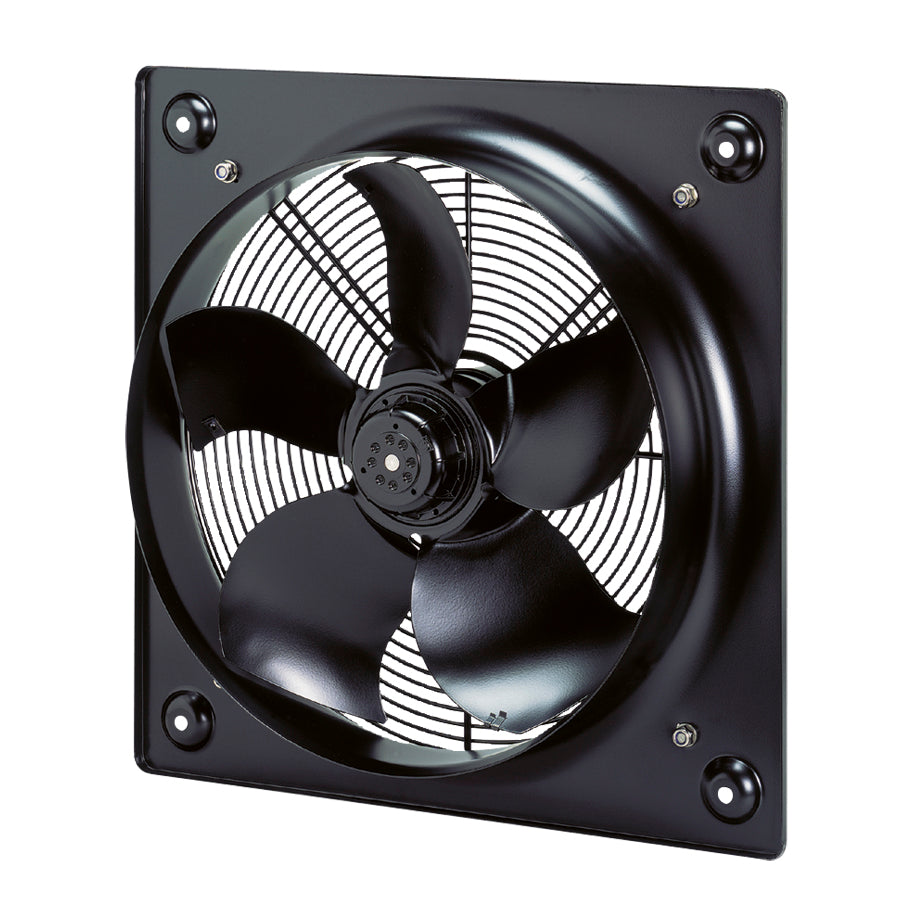

S&P HXBR Axial Fan

1.59199 € 2.25386 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P HXBR: Axial Fan. Available are the versions HXBR A ECOWATT V5, HXBR ECOWATT, HXBR/4 and HXBR/6 as well as 9 sizes.

Technical data
Manufacturer S&P
Design axial wall fan with wall plate
Mounting position any axis position
S&P typeItem numberVersionSizeMax. power inputMotor currentWeightSeriesWall plateImpellerPower supplyMotor
HXBR-500-A ECOWATT V55700612800HXBR A ECOWATT V5500745 W3.1 A22.0 kgHXBR/HXTR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller with sickle blades made of sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor in the airflow, internal thermal contacts, sealed maintenance-free ball bearings, continuous operation S1
HXBR-560-A ECOWATT V55700612900HXBR A ECOWATT V5560886 W3.7 A26.5 kgHXBR/HXTR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller with sickle blades made of sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor in the airflow, internal thermal contacts, sealed maintenance-free ball bearings, continuous operation S1
HXBR-630-A ECOWATT V55700612200HXBR A ECOWATT V5630930 W3.9 A32.5 kgHXBR/HXTR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller with sickle blades made of sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor in the airflow, internal thermal contacts, sealed maintenance-free ball bearings, continuous operation S1
HXBR-200 ECOWATT5750399800HXBR ECOWATT200103 W0.7 A4.0 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR-250 ECOWATT5750399900HXBR ECOWATT250118 W0.8 A4.5 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR-315 ECOWATT5750400100HXBR ECOWATT315167 W1.1 A6.0 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR-355 ECOWATT5750400200HXBR ECOWATT355184 W1.2 A8.0 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR-400 ECOWATT5750400300HXBR ECOWATT400375 W1.6 A8.5 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR-450 ECOWATT5750400400HXBR ECOWATT450352 W1.5 A9.0 kgHXBR ECOWATTsheet steel with integral inlet nozzle, steel wire guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwsaxial impeller "AMAX" made of plastic (polyamide), statically and dynamically balanced to ISO 19401~ 230 V, 50/60 HzEC motor with internal thermal contacts, insulation class B, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-2505750251000HXBR/425042 W0.2 A6.5 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-3155750252800HXBR/4315112 W0.6 A7.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-3555750256900HXBR/4355145 W0.7 A7.5 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-4005740039300HXBR/4400268 W1.2 A9.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-4505740042600HXBR/4450457 W2.0 A11.5 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-5005700381700HXBR/4500867 W3.6 A16.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-5605700597300HXBR/45601,084 W4.6 A21.5 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/4-6305700390800HXBR/46301,252 W5.5 A24.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/6-4005740052500HXBR/6400124 W0.6 A9.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1
HXBR/6-6305700590900HXBR/6630587 W2.6 A24.0 kgHXBR/HXTRsheet steel with integral inlet nozzle, steel guard to EN 60335-1 and EN 60335-2-80, entire construction epoxy polyester coated, stainless steel screwssickle blades, sizes 250 to 355 sheet steel, 400 to 630 sheet aluminium, statically and dynamically balanced to ISO 19401~ 230 V, 50 Hz, capacitor motorAC motor, insulation class F, sealed maintenance-free ball bearings, continuous operation S1

Features
  • The S&P data table also gives speed, power input, current, airflow and sound pressure level for control voltages of 8 V, 6 V and 4 V.
  • According to S&P, the core hole for installation must be at least dimension G.

Note on variants

The table above lists the S&P type and the item number for each option.
