S&P Deutschland GmbH  |  SKU: L0121085010

S&P FUD N and FUW N Frequency Inverters, IP66 or Control Cabinet Installation

1.05649 € 1.19249 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P FUD N and FUW N Frequency Inverters, IP66 or Control Cabinet Installation: frequency inverters for stepless speed control of three-phase motors: FUD N for 3 x 400 V mains input, FUW N for 1 x 230 V mains input (output 3 x 230 V), each in an IP66 housing or as version S for control cabinet installation. 4 versions are available under version.

The versions in detail

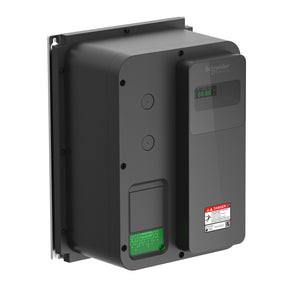

FUD N, IP66, input 3 x 400 V, output 3 x 400 V: S&P FUD N are frequency inverters from S&P with degree of protection IP 66 for the continuous speed control of fans with three-phase motors. According to S&P, an external setpoint device is required for this version. According to S&P, the selection is based on the maximum motor current of the fan; the accessory tables of the S&P fans state the suitable frequency inverter for each model.

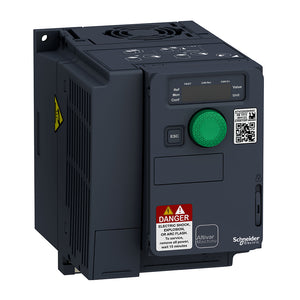

FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V: S&P FUD N S are frequency inverters from S&P with degree of protection IP 20 for installation in a control cabinet, for the continuous speed control of fans with three-phase motors. According to S&P, the selection is based on the maximum motor current of the fan; the accessory tables of the S&P fans state the suitable frequency inverter for each model.

FUW N, IP66, input 1 x 230 V, output 3 x 230 V: S&P FUW N are frequency inverters from S&P with degree of protection IP 66 for the continuous speed control of fans with three-phase motors. According to S&P, an external setpoint device is required for this version. According to S&P, the selection is based on the maximum motor current of the fan; the accessory tables of the S&P fans state the suitable frequency inverter for each model.

FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V: S&P FUW N S are frequency inverters from S&P with degree of protection IP 20 for installation in a control cabinet, for the continuous speed control of fans with three-phase motors. According to S&P, the selection is based on the maximum motor current of the fan; the accessory tables of the S&P fans state the suitable frequency inverter for each model.

Technical data
EMC filter C2

Data per version:

Feature FUD N, IP66, input 3 x 400 V, output 3 x 400 V FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V FUW N, IP66, input 1 x 230 V, output 3 x 230 V FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V
Input 3~ 400 V, 50 Hz 3~ 400 V, 50 Hz 1~ 230 V, 50 Hz 1~ 230 V, 50 Hz
Output 3~ 400 V, 20 to 50 Hz 3~ 400 V, 20 to 50 Hz 3~ 230 V, 20 to 50 Hz 3~ 230 V, 20 to 50 Hz
Motor connection Supply 3~ 400 V, 50 Hz; connect motors with 230/400 V winding in star, motors with 400/690 V winding in delta Supply 3~ 400 V, 50 Hz; connect motors with 230/400 V winding in star, motors with 400/690 V winding in delta Supply 1~ 230 V, 50 Hz, for motors with 230/400 V winding, motor connection in delta Supply 1~ 230 V, 50 Hz, for motors with 230/400 V winding, motor connection in delta
Degree of protection IP 66 IP 20 IP 66 IP 20
Installation Surface mounting Control cabinet Surface mounting Control cabinet

Note on variants

Select version and power. Not every combination is available.

Version Power Item number Max. output power Permissible device current Dimensions Weight
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 0.37 kW L0121085010 0.37 kW 1.5 A 250 x 340 x 200 mm 5.9 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 1.1 kW L0121085016 1.10 kW 3.0 A 250 x 340 x 200 mm 6.0 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 1.5 kW L0121085018 1.50 kW 4.1 A 250 x 340 x 200 mm 6.0 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 2.2 kW L0121085020 2.20 kW 5.5 A 250 x 340 x 235 mm 7.7 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 3 kW L0121085022 3.00 kW 7.1 A 250 x 340 x 235 mm 7.7 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 4 kW L0121085024 4.00 kW 9.5 A 250 x 340 x 235 mm 7.8 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 5.5 kW L0121085026 5.50 kW 14.3 A 230 x 521 x 300 mm 22.0 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 7.5 kW L0121085028 7.50 kW 17.0 A 230 x 521 x 300 mm 22.0 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 0.55 kW L0121085012 0.55 kW 1.9 A 250 x 340 x 200 mm 5.9 kg
FUD N, IP66, input 3 x 400 V, output 3 x 400 V 0.75 kW L0121085014 0.75 kW 2.3 A 250 x 340 x 200 mm 5.9 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 0.37 kW L0121085011 0.37 kW 1.5 A 105 x 143 x 158 mm 1.2 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 0.55 kW L0121085013 0.55 kW 1.9 A 105 x 143 x 158 mm 1.2 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 0.75 kW L0121085015 0.75 kW 2.3 A 105 x 143 x 158 mm 1.2 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 1.1 kW L0121085017 1.10 kW 3.0 A 105 x 143 x 158 mm 1.3 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 1.5 kW L0121085019 1.50 kW 4.1 A 105 x 143 x 158 mm 1.3 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 2.2 kW L0121085021 2.20 kW 5.5 A 140 x 184 x 158 mm 2.1 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 3 kW L0121085023 3.00 kW 7.1 A 140 x 184 x 158 mm 2.1 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 4 kW L0121085025 4.00 kW 9.5 A 140 x 184 x 158 mm 2.2 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 5.5 kW L0121085027 5.50 kW 14.3 A 150 x 232 x 232 mm 7.5 kg
FUD N S, control cabinet installation, input 3 x 400 V, output 3 x 400 V 7.5 kW L0121085029 7.50 kW 17.0 A 150 x 232 x 232 mm 7.5 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 0.37 kW L0121085030 0.37 kW 3.3 A 250 x 340 x 182 mm 5.1 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 0.55 kW L0121085032 0.55 kW 3.7 A 250 x 340 x 182 mm 5.1 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 0.75 kW L0121085034 0.75 kW 4.8 A 250 x 340 x 182 mm 5.1 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 1.1 kW L0121085036 1.10 kW 6.9 A 250 x 340 x 235 mm 7.4 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 1.5 kW L0121085038 1.50 kW 8.0 A 250 x 340 x 235 mm 7.4 kg
FUW N, IP66, input 1 x 230 V, output 3 x 230 V 2.2 kW L0121085040 2.20 kW 11.0 A 250 x 340 x 235 mm 7.4 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 0.37 kW L0121085031 0.37 kW 3.3 A 72 x 143 x 128 mm 1.0 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 0.55 kW L0121085033 0.55 kW 3.7 A 72 x 143 x 138 mm 1.1 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 0.75 kW L0121085035 0.75 kW 4.8 A 72 x 143 x 138 mm 1.1 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 1.1 kW L0121085037 1.10 kW 6.9 A 105 x 142 x 158 mm 1.6 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 1.5 kW L0121085039 1.50 kW 8.0 A 105 x 142 x 158 mm 1.6 kg
FUW N S, control cabinet installation, input 1 x 230 V, output 3 x 230 V 2.2 kW L0121085041 2.20 kW 11.0 A 105 x 142 x 158 mm 1.6 kg

Features
  • FUD N, IP66, input 3 x 400 V, output 3 x 400 V: External setpoint device required
  • For motors with thermal contacts or PTC
  • Integrated EMC filter C2
  • Permissible ambient temperature -10 °C to +50 °C
  • Signal input 0 to 10 V, for example for the S&P SWG or CONTROL ECOWATT setpoint controllers
  • Stepped control via fixed speeds possible, for example 30 Hz and 50 Hz
  • Communication protocols CANopen and Modbus
  • According to the manufacturer, the S&P series fans are approved for operation from 20 to 50 Hz; exceeding the maximum frequency overloads the motors.
  • According to S&P, the motor supply line and control lines must be made with shielded cables.
  • FUW N, IP66, input 1 x 230 V, output 3 x 230 V: External setpoint device required
