S&P Deutschland GmbH  |  SKU: 8020283640

S&P ERL Control Module for Single-Duct Fans

8799 € 9649 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P ERL: Control Module for Single-Duct Fans. Available are the versions ERL G, ERL V-EC-H, ERL V-N, ERL V-NB, ERL V-NE, ERL V-NF and ERL V-NIE as well as the sizes 30/100, 30/60, 30/60/100, 60, 100, not specified, 30 and 20/30/60.

Technical data
Manufacturer S&P
S&P typeItem numberVersionSizeSwitch-on delayOverrun timeAir flowManufacturer
ERL G-30/1008020283640ERL G30/100n/an/a30 / 100 m³/hS&P
ERL G-30/608020283639ERL G30/60n/an/a30 / 60 m³/hS&P
ERL G-30/60/1008020283641ERL G30/60/100n/an/a30 / 60 / 100 m³/h (three-stage)S&P
ERL G-608020283637ERL G60n/an/a60 m³/hS&P
ERL G-1008020283638ERL G100n/an/a100 m³/hS&P

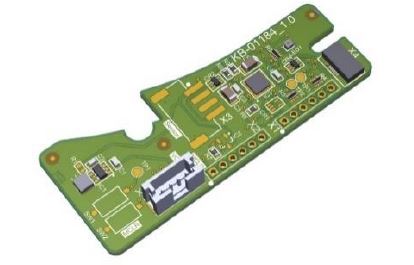

ERL V-EC-HL012110405ERL V-EC-Hnot specifiedn/an/an/an/a
ERL V-N 308020283622ERL V-N3060 s7 min30 m³/hS&P
ERL V-N 30/608020283625ERL V-N30/6060 s7 min30 / 60 m³/h (two-stage)S&P
ERL V-N 608020283623ERL V-N6060 s7 min60 m³/h (single-stage)S&P
ERL V-N 1008020283624ERL V-N10060 s7 min100 m³/hS&P
ERL V-NB 30/608020283607ERL V-NB30/6060 s7 min30 / 60 m³/h (two-stage)S&P

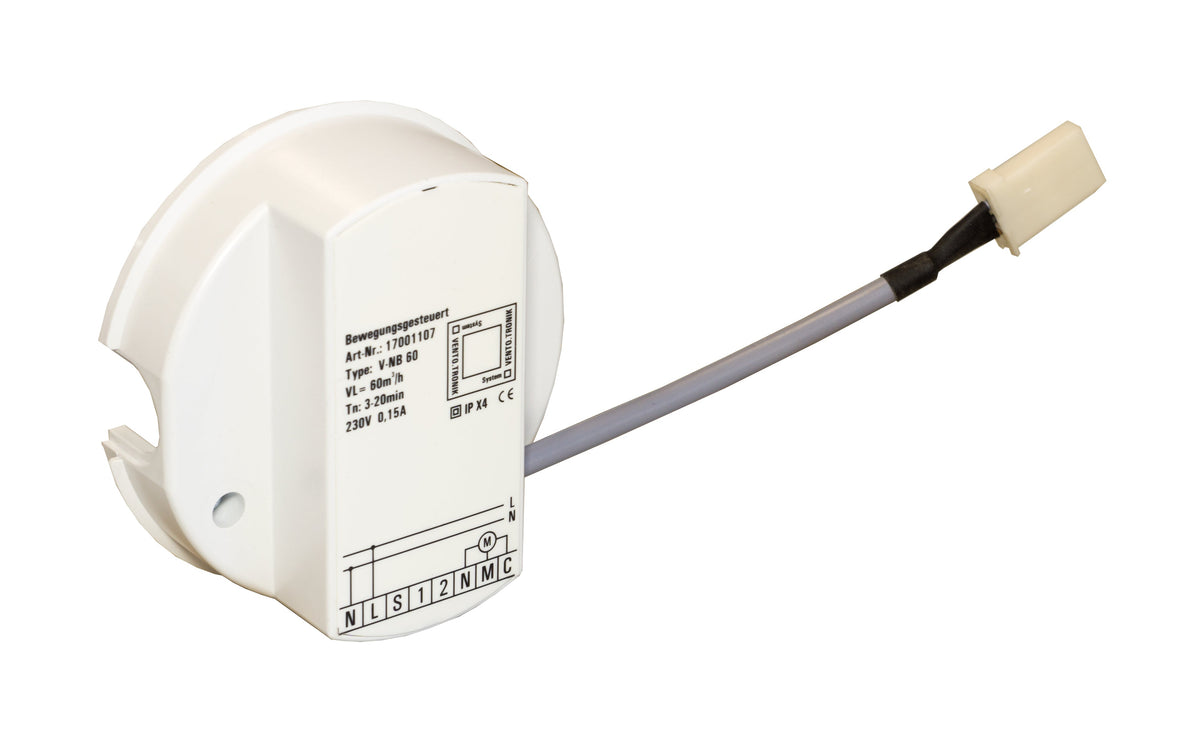

ERL V-NB 608020283635ERL V-NB6060 s7 min60 m³/hS&P
ERL V-NB 1008020283636ERL V-NB10060 s7 min100 m³/hS&P
ERL V-NE 20/30/608020283627ERL V-NE20/30/603 s to 2.5 min (adjustable)3 to 30 min (adjustable)n/aS&P
ERL V-NE 30/1008020283628ERL V-NE30/1003 s to 2.5 min3 to 30 minn/aS&P
ERL V-NE 30/608020283610ERL V-NE30/603 s to 2.5 min3 to 30 minn/aS&P
ERL V-NE 30/60/1008020283626ERL V-NE30/60/1003 s to 2.5 min (adjustable)3 to 30 min (adjustable)n/aS&P
ERL V-NE 608020283611ERL V-NE603 s to 2.5 min3 to 30 minn/aS&P
ERL V-NE 1008020283612ERL V-NE1003 s to 2.5 min3 to 30 minn/aS&P
ERL V-NF 30/1008020283633ERL V-NF30/10060 s7 min30 / 100 m³/h (two-stage)S&P
ERL V-NF 30/608020283608ERL V-NF30/6060 s7 min30 / 60 m³/h (two-stage)S&P

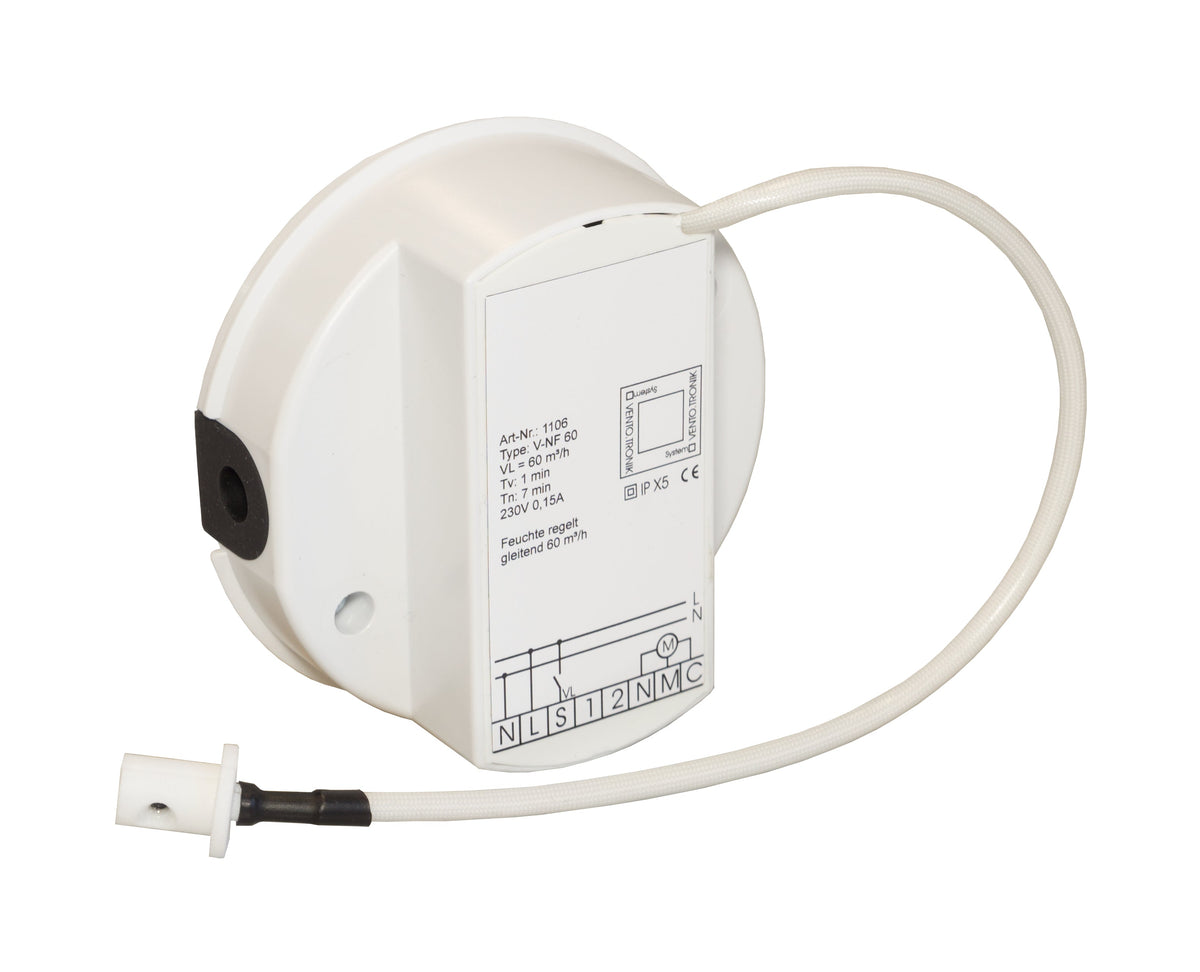

ERL V-NF 608020283631ERL V-NF6060 s7 min60 m³/hS&P
ERL V-NF 1008020283632ERL V-NF10060 s7 min100 m³/hS&P
ERL V-NIE 30/608020283609ERL V-NIE30/6060 s3 to 10 min30 / 60 m³/h (two-stage)S&P

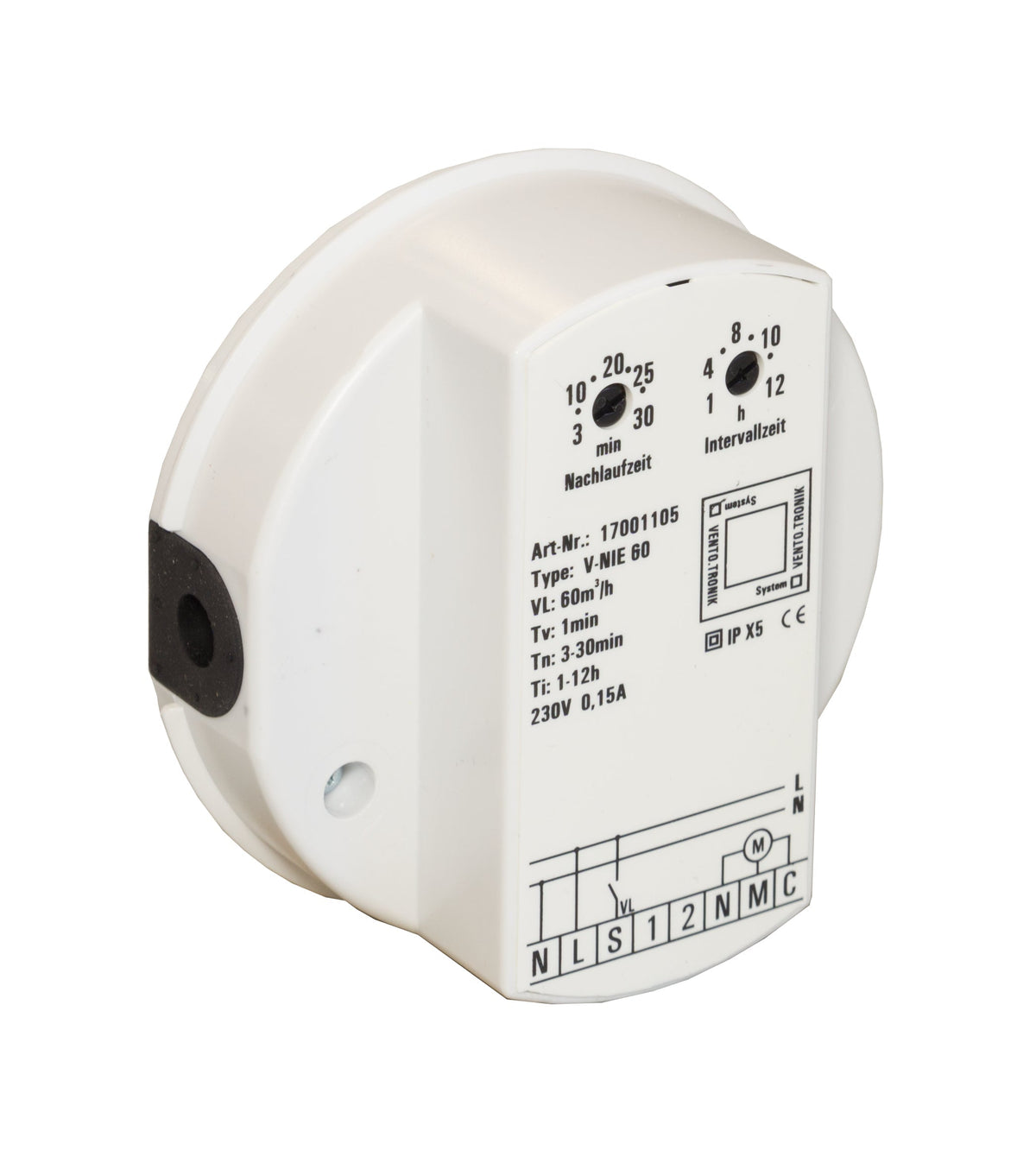

ERL V-NIE 608020283629ERL V-NIE6060 s3 to 10 min60 m³/h (single-stage)S&P
ERL V-NIE 1008020283630ERL V-NIE10060 s3 to 10 min100 m³/h (single-stage)S&P

Features
  • Plug-in module for the universal fan insert L-G or L-W; housing and fan insert are required separately.
  • The control module can be replaced later with the fan insert installed (provided the electrical supply cable is suitable).
  • According to S&P, the wiring diagram is printed on the control module; detailed wiring diagrams are contained in installation manual part 2.
  • According to S&P, tested to VDE, TÜV, GS and EMC (89/336 EEC).

Note on variants

The table above lists the S&P type and the item number for each option.
