S&P Deutschland GmbH  |  SKU: 5154009700

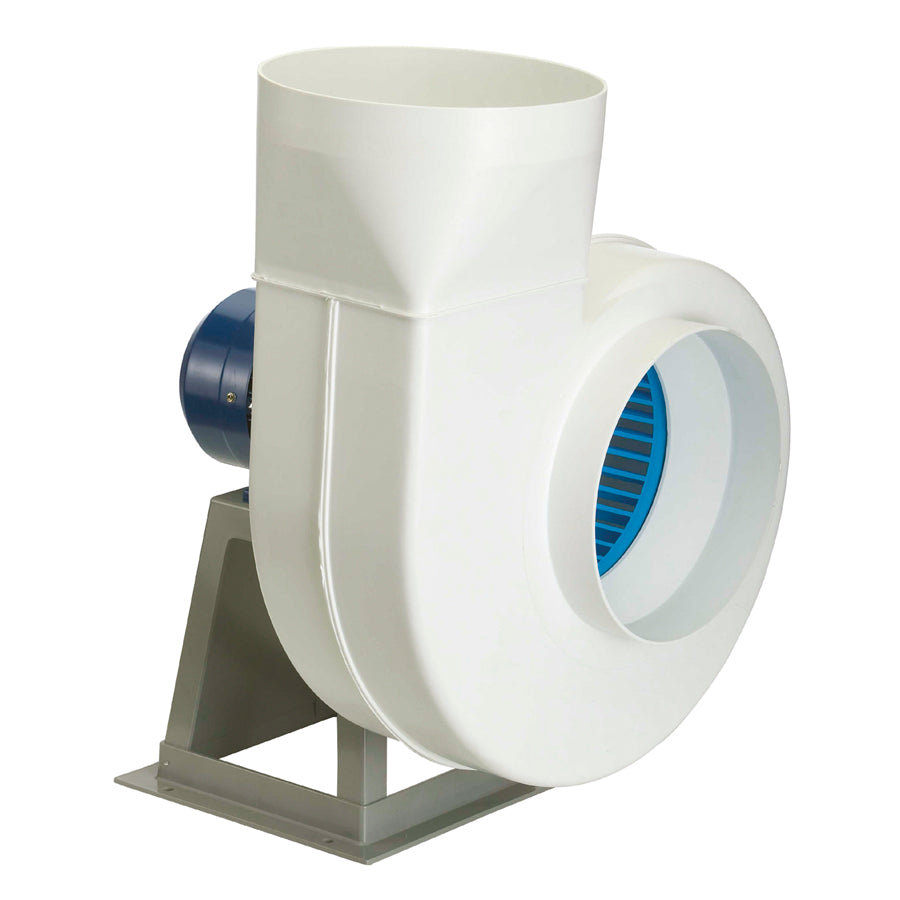

S&P CMPB Centrifugal Fan, Plastic, Sizes 14 and 20

1.31899 € 1.86116 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P CMPB is a plastic centrifugal fan from the S&P CMPB / CMPT series for single-phase 1~ 230 V. According to the manufacturer, the units are suitable for extracting aggressive gases and vapours; scroll housing and impeller are made of polypropylene and the motor is separated from the airflow.

The three types move 350 to 1,220 m³/h free-blowing. According to S&P, the CMPB/4-20 can be speed-controlled by transformer and electronically.

Technical data
Designmedium-pressure centrifugal fan, motor separated from the airflow
Scroll housingpolypropylene (PP), stainless steel screws
Motor mountnylon composite
Impellercentrifugal impeller made of polypropylene, free-running, forward curved, balanced to ISO 1940
MotorAC motor, insulation class F, protection class IP55, continuous duty S1, maintenance-free ball bearings
Power supply1~ 230 V, 50 Hz, capacitor motor
Motor protectionthermal contact, wired separately to the terminal board
Air temperature-10 °C to +60 °C
Housing positionLG 0 to LG 315 on site in 45° steps, RD on request
ModelItem numberS&P typeSpeedMotor powerRated currentAirflowSound pressure level²Inlet/outlet ØWeight
CMPB/2-145154009700CMPB/2-14-0.18 REG TP2,900 rpm0.18 kW1.53 A730 m³/h60 dB(A)125 / 125 mm4.5 kg
CMPB/4-145154009800CMPB/4-14-0.18 REG TP1,470 rpm0.05¹ kW0.25 A350 m³/h45 dB(A)125 / 125 mm4.5 kg
CMPB/4-205154009900CMPB/4-20-0.12 REG TP1,450 rpm0.12 kW1.2 A1,220 m³/h60 dB(A)200 / 200 mm8 kg

¹ Power input. ² Measured at a distance of 1.5 m in free field at point A of the characteristic curve.

Features
  • Scroll housing and forward curved impeller made of polypropylene, stainless steel screws.
  • Capacitor motor with thermal contact wired separately to the terminal board; all-pole motor protection according to S&P in combination with the MSD-2 motor protection switch.
  • For the CMPB/4-20, S&P specifies the REV-1.6 N 5-step transformer for speed control.
  • Performance data according to the manufacturer to ISO 5801 and AMCA 210-99; characteristic curves and sound power spectra are given in the S&P data sheet.
  • Accessories listed by S&P include MFP-N flexible connectors, CARP-N manual shut-off dampers and APP-N outlet spigots with bird guard, made of polypropylene.

Note on variants

The "Model" option names the type: "/2" or "/4" stands for the 2-pole or 4-pole motor, "14" and "20" for the size. In the S&P catalogue the full type names are CMPB/2-14-0.18 REG TP, CMPB/4-14-0.18 REG TP and CMPB/4-20-0.12 REG TP.
