InoxAir Connector DW/EW and EW/DW

Name: InoxAir Connector DW/EW and EW/DW
Brand: InoxAir GmbH
SKU: EW08106-1
Price: 67.49 EUR
Availability: InStock

67^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Connector DW/EW and EW/DW combines the following versions in one product: connector DW/EW (type 106), connector EW/DW (type 105). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

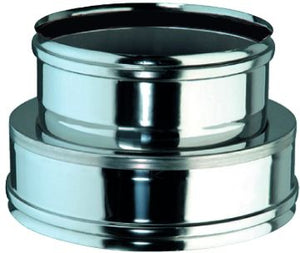

connector DW/EW (type 106): InoxAir Connectors Dw/ew is an adapter DW/EW (type 106) for the transition between InoxAir's double-walled (DW) and single-walled stainless steel pipe system (EW).

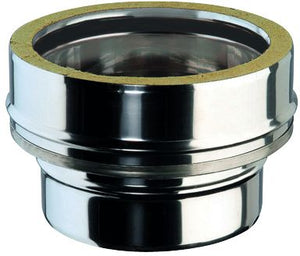

connector EW/DW (type 105): InoxAir Connectors EW/DW is an adapter EW/DW (type 105) for the transition between InoxAir's single-walled (EW) and double-walled stainless steel pipe system (DW).

Technical data

Height according to the catalogue	160 mm
Pipe systems	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline
Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source	InoxAir catalogue Stainless steel pipes, pp. 187, 191, 199 and 206; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 187, 192, 199 and 206

Data per version:

Feature	connector DW/EW (type 106)	connector EW/DW (type 105)
Design	adapter DW/EW, type 106	adapter EW/DW, type 105

Note on variants

Select version and size. Not every combination is available.

Features

connector DW/EW (type 106): For the transition in the opposite direction, the catalogue lists the adapter EW/DW (type 105).
Dimensions per diameter see catalogue page.
According to the catalogue, the double-walled pipe system allows for the linear expansion of the inner pipe and has continuous thermal insulation without cold bridges; connection via push-fit sockets.
According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
connector EW/DW (type 105): For the transition in the opposite direction, the catalogue lists the adapter DW/EW (type 106).
