S&P TT-S Extension Modules for TTC Temperature Controllers

Name: S&P TT-S Extension Modules for TTC Temperature Controllers
Brand: S&P Deutschland GmbH
SKU: 8000106271
Price: 249.49 EUR
Availability: InStock

249^{49 €} ~~322^{49 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Type

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P TT-S Extension Modules for TTC Temperature Controllers: extension module for the S&P temperature controllers of electric heater batteries, as TT-S1 for the TTC-2000 or as TT-S4 for the TTC-40. Options under type: TT-S1 for TTC-2000 and TT-S4 for TTC-40.

The versions in detail

TT-S1 for TTC-2000: S&P TT-S1 is an extension module for the S&P TTC-2000 temperature controller. According to S&P, it is installed in the TTC-2000 as a base load board for contactor control, extending the controller's range of application with electric heating coils. According to the TTC-2000 instructions, the controller first activates its triac output when the heat demand rises; once this output is fully modulated, the relay output of the TT-S1 is switched on and the triac output is reduced slightly.

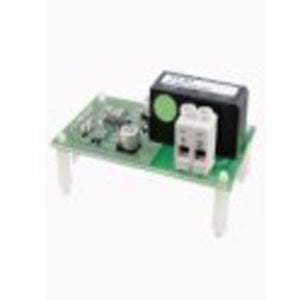

TT-S4 for TTC-40: S&P TT-S4 is an extension module for the S&P TTC-40 temperature controller. According to S&P, it extends the range of application of the TTC-40 with electric heating coils and is used for contactor control in the control cabinet.

Technical data

Data per version:

Feature	TT-S1 for TTC-2000	TT-S4 for TTC-40
Suitable for	TTC-2000 temperature controller	TTC-40 temperature controller
Voltage	single-phase AC 1~ 230 V, 50 Hz	single-phase AC 1~ 24 V, 50 Hz (TRAFO 60 required)
Installation	in the TTC-2000 temperature controller as a base load board for contactor control	control cabinet installation, DIN rail mounting
Function	not specified	contactor control

Note on variants

Select the required version under Type.

Type	Item number
TT-S1 for TTC-2000	8000106271
TT-S4 for TTC-40	8000103656

Features

TT-S1 for TTC-2000: According to the instructions, the load switched via the triac output and the load switched via the TT-S1 must be equal for precise control.
TT-S1 for TTC-2000: In the S&P main catalogue 2026, the combination TTC-2000 + TT-S1 is specified for the IBE-315/30 T and IBE-355/30 T electric heating coils (30 kW each).
TT-S1 for TTC-2000: According to S&P, the wiring diagram and further details are given in the TT-S1 instructions.
TT-S4 for TTC-40: Power supply via the TRAFO 60 transformer (230 V to 24 V AC) according to S&P.
TT-S4 for TTC-40: In the S&P main catalogue 2026, the combination TTC-40 + TT-S4 is specified for the IBE-400/50 T electric heating coil (50 kW).
