S&P Deutschland GmbH | SKU: 9000000137

S&P TRW

Name: S&P TRW
Brand: S&P Deutschland GmbH
SKU: 9000000137
Price: 327.49 EUR
Availability: InStock

327^{49 €} ~~435^{54 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

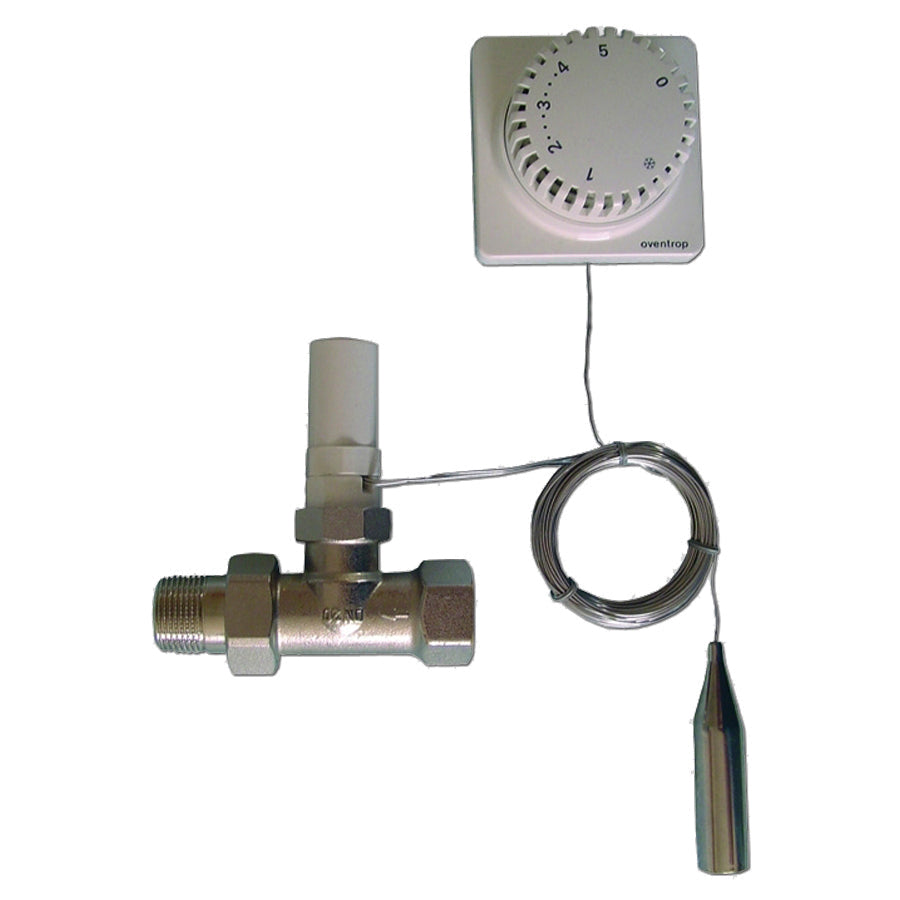

S&P TRW is a temperature control unit for the S&P hot water heating coils MBW 100 to 200. According to S&P, it consists of a thermostat with capillary remote sensor and a straight-through valve; for temperature control, the flow is continuously adapted to the heat demand.

Technical data

Manufacturer	S&P
Type	TRW
Article number	9000000137
Suitable for according to S&P	hot water heating coils MBW-100 to MBW-200
Valve body	gunmetal, nickel-plated, 3/4"
Heating medium temperature	up to +120 °C
Max. closing pressure	1 bar
Max. operating pressure	10 bar
Max. flow rate	300 l/h
Setpoint range	7 to 28 °C
Capillary tube length	5 m

Features

According to S&P, the valve is supplied in position 6; settings 1 to 6 are possible to adapt it to lower water quantities.
According to S&P, the remote sensor can alternatively be mounted at a suitable place in the room for room temperature control.
As frost protection element, S&P lists the frost protection thermostat THE-F (accessory).

Notes on installation

According to S&P, the general rules for hydraulic balancing of the overall system must be observed. The wiring of the electrical components must be carried out specifically for the installation; details are given in the S&P operating instructions TRW.

Data sheets and manuals (PDF)
