S&P Deutschland GmbH | SKU: L012103004

S&P THE-F-N

Name: S&P THE-F-N
Brand: S&P Deutschland GmbH
SKU: L012103004
Price: 176.49 EUR
Availability: InStock

176^{49 €} ~~217^{77 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

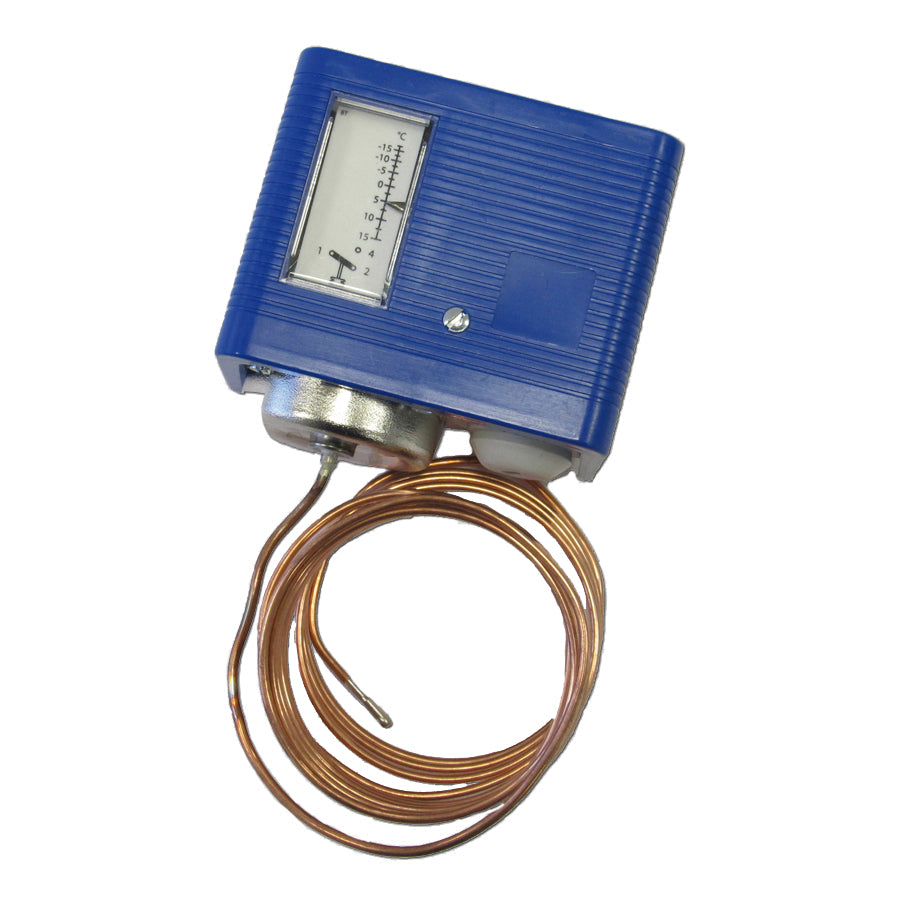

S&P THE-F-N is a frost protection thermostat from S&P for protecting heat exchangers and hot water heating coils against freezing. According to S&P, it is intrinsically safe, which means that in the event of damage, frost is signalled and the system is switched off.

Technical data

Article number	L012103004
Temperature range	-18 to +13 °C
Voltage	1~ 230 V, 50 Hz
Max. switching capacity	16 A (1 A for signal output)
Degree of protection	IP 30
Dimensions	86 x 80 x 50 mm
Capillary tube length	3 m

Features

Scope of delivery according to S&P: mounting bracket, duct feed-through and 1 set of capillary holders
S&P shows the THE-F among others as a frost protection element on the TRW hot water heating coils.

Note on the type designation

In the S&P main catalogue 2026, article number L012103004 is listed in the table as THE-F, while the heading reads THE-F-N; it is the same frost protection thermostat.
