S&P Deutschland GmbH | SKU: 8070402442

S&P REV Step Transformer, Single-Phase

Name: S&P REV Step Transformer, Single-Phase
Brand: S&P Deutschland GmbH
SKU: 8070402442
Price: 137.49 EUR
Availability: InStock

137^{49 €} ~~161^{84 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P REV: Step Transformer, Single-Phase. Available are the versions REV B, REV K, REV N and REV S as well as the sizes 0,5, 1, 1,5, 3, 5, 1,6, 7 and 10.

Technical data

Manufacturer	S&P
Output voltages (steps)	0 / 105 / 130 / 145 / 160 / 230 V
Power supply	1~ 230 V, 50 Hz

S&P type	Item number	Version	Size	Permissible device current	Degree of protection	Dimensions	Weight	Motor protection	Installation

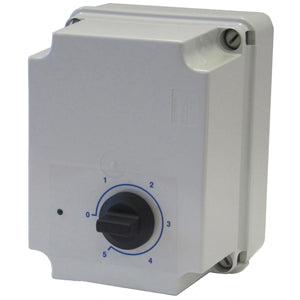

REV-0,5 B	8070402442	REV B	0,5	0.5 A	IP 54	69 x 114 x 57 mm	0.7 kg	none (thermal contact in the motor winding)	Surface mounting

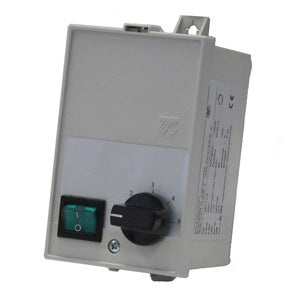

REV-1 B	8020125301	REV B	1	1.0 A	IP 30	75 x 120 x 85 mm	1.2 kg	none (thermal contact in the motor winding)	Surface mounting
REV-1,5 B	8070402341	REV B	1,5	1.5 A	IP 44	135 x 170 x 110 mm	2.8 kg	none (thermal contact in the motor winding)	Surface mounting
REV-3 B	8070402342	REV B	3	3.0 A	IP 44	155 x 200 x 180 mm	4.2 kg	none (thermal contact in the motor winding)	Surface mounting
REV-5 B	8070402343	REV B	5	5.0 A	IP 44	155 x 200 x 180 mm	5.0 kg	none (thermal contact in the motor winding)	Surface mounting
REV-1,6 K	8001223001	REV K	1,6	1.6 A	n/a	n/a	n/a	for motors with thermal contact routed separately to the terminal board	n/a
REV-3 K	8001223002	REV K	3	3.0 A	n/a	n/a	n/a	for motors with thermal contact routed separately to the terminal board	n/a
REV-5 K	8001223003	REV K	5	5.0 A	n/a	n/a	n/a	for motors with thermal contact routed separately to the terminal board	n/a
REV-1,6 N	8020125303	REV N	1,6	1.6 A	IP 54	190 x 240 x 120 mm	3.0 kg	for motors with thermal contact routed separately to the terminal board	Surface mounting
REV-3 N	8020125304	REV N	3	3.0 A	IP 54	190 x 240 x 120 mm	5.0 kg	for motors with thermal contact routed separately to the terminal board	Surface mounting
REV-5 N	8020125305	REV N	5	5.0 A	IP 54	190 x 240 x 120 mm	6.0 kg	for motors with thermal contact routed separately to the terminal board	Surface mounting
REV-7 N	8020125306	REV N	7	7.0 A	IP 54	190 x 240 x 120 mm	7.0 kg	for motors with thermal contact routed separately to the terminal board	Surface mounting
REV-10 N	8020125314	REV N	10	10.0 A	IP 54	240 x 290 x 160 mm	12.0 kg	for motors with thermal contact routed separately to the terminal board	Surface mounting
REV-1,6 S	8070402257	REV S	1,6	1.6 A	IP 20	84 x 80 x 96 mm	2.1 kg	none	Control cabinet
REV-3 S	8070402258	REV S	3	3.0 A	IP 20	105 x 85 x 113 mm	2.8 kg	none	Control cabinet
REV-5 S	8070402259	REV S	5	5.0 A	IP 20	105 x 115 x 113 mm	4.2 kg	none	Control cabinet
REV-7 S	8070402260	REV S	7	7.0 A	IP 20	120 x 110 x 121 mm	5.2 kg	none	Control cabinet

Features

Five speed steps and 0 position

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)

Catalogue page electrical accessories transformers (PDF)
