S&P Deutschland GmbH  |  SKU: 5122008100

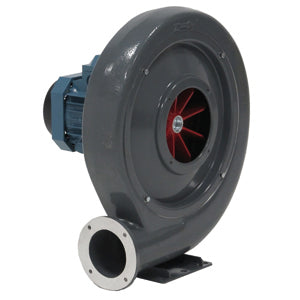

S&P CBB/CBT N Centrifugal Fan, Die-Cast Aluminium

2.06349 € 2.93335 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P CBB/CBT N Centrifugal Fan, Die-Cast Aluminium: medium-pressure centrifugal fan of the S&P CBB / CBT-N series with housing and impeller made of die-cast aluminium, for industrial applications; the motor is outside the air stream. CBB and CSB run on single-phase 1~ 230 V, CBT and CST on three-phase 3~ 230/400 V. Options under version: CBT N, 3~ 230/400 V, CBB N, 1~ 230 V, CSB, 1~ 230 V and CST, 3~ 230/400 V.

The versions in detail

CBT N, 3~ 230/400 V: S&P CBT N is a medium-pressure centrifugal fan from the S&P CBB / CBT-N series for three-phase 3~ 230/400 V, with housing and impeller made of die-cast aluminium. According to the manufacturer, the series is intended for industrial applications; the motor is located outside the airflow. Sizes 40 to 130 move 250 to 1,910 m³/h free-blowing; according to S&P, air temperatures up to 120 °C are permitted in continuous operation. According to the manufacturer, the speed can be controlled steplessly via a frequency inverter (20 to 50 Hz).

CBB N, 1~ 230 V: S&P CBB N is a medium-pressure centrifugal fan from the S&P CBB / CBT-N series for single-phase 1~ 230 V, with housing and impeller made of die-cast aluminium. According to the manufacturer, the series is intended for industrial applications; the motor is located outside the airflow. Sizes 60 to 100 move 400 to 1,250 m³/h free-blowing; according to S&P, air temperatures up to 120 °C are permitted in continuous operation.

CSB, 1~ 230 V: S&P CSB-60 is a medium-pressure centrifugal fan from the S&P CBB / CBT-N series with housing and impeller made of die-cast aluminium. According to the manufacturer, the series is intended for industrial applications; the motor is located outside the airflow. The CSB-60 runs on single-phase 1~ 230 V and moves up to 310 m³/h free-blowing. S&P specifies a maximum air temperature of 70 °C for this model.

CST, 3~ 230/400 V: S&P CST-60 is a medium-pressure centrifugal fan from the S&P CBB / CBT-N series with housing and impeller made of die-cast aluminium. According to the manufacturer, the series is intended for industrial applications; the motor is located outside the airflow. The CST-60 runs on three-phase 3~ 230/400 V and moves up to 310 m³/h free-blowing. S&P specifies a maximum air temperature of 120 °C for this model.

Technical data
Design medium-pressure centrifugal fan, single inlet, motor outside the airflow
Housing die-cast aluminium with epoxy-polyester coating
Impeller centrifugal impeller made of die-cast aluminium with epoxy-polyester coating, free-running, straight blades, statically and dynamically balanced to ISO 1940
Motor AC motor, 2-pole, continuous duty S1, sealed maintenance-free ball bearings

Data per version:

Feature CBT N, 3~ 230/400 V CBB N, 1~ 230 V CSB, 1~ 230 V CST, 3~ 230/400 V
Power supply 3~ 230/400 V, 50 Hz (3~ 400 V in star connection; delta only with S&P FUW-N frequency inverter) 1~ 230 V, 50 Hz, capacitor motor 1~ 230 V, 50 Hz, capacitor motor 3~ 230/400 V, 50 Hz (3~ 400 V in star connection; delta only with S&P FUW-N frequency inverter)
Motor protection class / insulation class IP55 / F (CBT-40 N: IP44 / B) IP55 / F IP44 / B IP44 / B
Max. air temperature 120 °C 120 °C 70 °C 120 °C
Housing position adjustable in 45° steps, LG 0 to LG 315 and RD 0 to RD 315, standard LG 270 adjustable in 45° steps, LG 0 to LG 315 and RD 0 to RD 315, standard LG 270 LG 270 only LG 270 only
Speed not specified not specified 2,750 rpm 2,750 rpm
Max. power input not specified not specified 0.20 kW 0.18 kW
Motor current not specified not specified 1.2 A at 230 V 0.67 A at 230 V, 0.39 A at 400 V
Airflow (free-blowing) not specified not specified 310 m³/h 310 m³/h
Sound pressure level¹ not specified not specified 69 dB(A) 69 dB(A)
Outlet connection diameter not specified not specified 60 mm 60 mm
Weight not specified not specified 6.6 kg 6.5 kg

Note on variants

Select version and size. Not every combination is available.

Version Size Item number Speed Power input Motor current 230/400 V Airflow Sound pressure level¹ Outlet Ø Weight Motor current 230 V
CBT N, 3~ 230/400 V 40 5122008100 2,800 rpm 0.25 kW 0.75 / 0.43 A 250 m³/h 78 dB(A) 40 mm 10.0 kg
CBT N, 3~ 230/400 V 60 5122227100 2,800 rpm 0.18 kW 1.09 / 0.63 A 400 m³/h 69 dB(A) 60 mm 10.5 kg
CBT N, 3~ 230/400 V 80 5122230500 2,800 rpm 0.37 kW 2.1 / 1.21 A 730 m³/h 71 dB(A) 80 mm 14.5 kg
CBT N, 3~ 230/400 V 100 5122228900 2,800 rpm 0.75 kW 2.9 / 1.7 A 1,250 m³/h 78 dB(A) 100 mm 19.5 kg
CBT N, 3~ 230/400 V 130 5122229700 2,800 rpm 1.10 kW 4.3 / 2.5 A 1,910 m³/h 80 dB(A) 130 mm 27.5 kg
CBB N, 1~ 230 V 60 5122207300 2,800 rpm 0.18 kW 400 m³/h 69 dB(A) 60 mm 10.0 kg 1.18 A
CBB N, 1~ 230 V 80 5122208100 2,800 rpm 0.37 kW 730 m³/h 71 dB(A) 80 mm 13.5 kg 2.2 A
CBB N, 1~ 230 V 100 5122209900 2,800 rpm 0.75 kW 1,250 m³/h 78 dB(A) 100 mm 18.5 kg 3.9 A
CSB, 1~ 230 V 60 5124602300 2,750 rpm 69 dB(A) 6.6 kg
CST, 3~ 230/400 V 60 5124005900 2,750 rpm 69 dB(A) 6.5 kg

Features
  • CBT N, 3~ 230/400 V: Housing and impeller made of die-cast aluminium, epoxy-polyester coated; housing position can be changed on site in 45° steps.
  • CBT N, 3~ 230/400 V: Motor protection via PTC thermistor in combination with the MSK-EX motor protection switch according to S&P.
  • CBT N, 3~ 230/400 V: Stepless speed control via S&P frequency inverters FUW N (1~ 230 V supply) or FUD N (3~ 400 V supply) according to the manufacturer.
  • Performance data according to the manufacturer to ISO 5801 and AMCA 210-99; characteristic curves and sound power spectra are given in the S&P data sheet.
  • CBT N, 3~ 230/400 V: Accessories listed by S&P include the MSK-EX motor protection switch, the PM-55/3 NV isolator switch, FUW N / FUD N frequency inverters, BRS protective guards and GFS (inlet) and GFD (outlet) counter flanges for sizes 60 to 130.
  • CBB N, 1~ 230 V: Housing and impeller made of die-cast aluminium, epoxy-polyester coated; housing position can be changed on site in 45° steps.
  • CBB N, 1~ 230 V: Capacitor motor with thermal contact; S&P specifies the MS-EX-1.6 (size 60), MS-EX-2.5 (80) and MS-EX-4.0 (100) motor protection switches.
  • CBB N, 1~ 230 V: Accessories listed by S&P include the MS-EX motor protection switches and the PM-55/3 NV isolator switch.
  • CSB, 1~ 230 V: Housing and impeller made of die-cast aluminium, epoxy-polyester coated.
  • CSB, 1~ 230 V: According to the manufacturer, the CSB and CST models are only available in housing position LG 270.
  • CSB, 1~ 230 V: Motor protection: thermal contact; S&P specifies the MSD-2 motor protection switch.
  • CSB, 1~ 230 V: Accessories listed by S&P include the MSD-2 motor protection switch and the PM-55/3 NV isolator switch.
  • CST, 3~ 230/400 V: Housing and impeller made of die-cast aluminium, epoxy-polyester coated.
  • CST, 3~ 230/400 V: According to the manufacturer, the CSB and CST models are only available in housing position LG 270.
  • CST, 3~ 230/400 V: Motor protection: thermal contact; S&P specifies the MSD-2 motor protection switch.
  • CST, 3~ 230/400 V: Accessories listed by S&P include the MSD-2 motor protection switch and the PM-55/3 NV isolator switch.

¹ Casing radiation, measured at a distance of 1.5 m in free field.
