S&P Deutschland GmbH | SKU: L012122202

S&P SFT Humidity and Temperature Sensors for Room and Duct

Name: S&P SFT Humidity and Temperature Sensors for Room and Duct
Brand: S&P Deutschland GmbH
SKU: L012122202
Price: 363.49 EUR
Availability: InStock

363^{49 €} ~~486^{71 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Type

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P SFT Humidity and Temperature Sensors for Room and Duct: sensors from S&P for measuring temperature and relative humidity with analogue output signal 0 to 10 V, as room sensors for surface mounting or as duct sensors. Options under type: SFT-A-N, room sensor humidity and temperature, SFT-A, room sensor humidity and temperature and SFT-K-N, duct sensor humidity and temperature.

The versions in detail

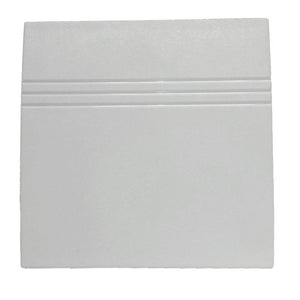

SFT-A-N, room sensor humidity and temperature: S&P SFT-A-N is a room sensor from S&P for measuring temperature and relative humidity with an analogue 0 to 10 V output signal, for surface mounting. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

SFT-A, room sensor humidity and temperature: S&P SFT-A is a room sensor from S&P for measuring temperature and relative humidity with an analogue 0 to 10 V output signal, for surface mounting. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

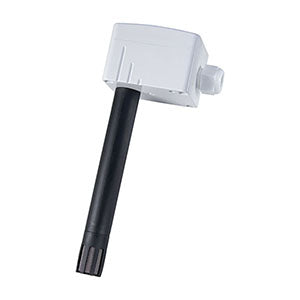

SFT-K-N, duct sensor humidity and temperature: S&P SFT-K-N is a duct sensor from S&P for measuring temperature and relative humidity in ventilation ducts, with an analogue 0 to 10 V output signal. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

Technical data

Supply voltage	24 V AC/DC (±10%)
Output signal	0 to 10 V

Data per version:

Feature	SFT-A-N, room sensor humidity and temperature	SFT-A, room sensor humidity and temperature	SFT-K-N, duct sensor humidity and temperature
Measured variables	temperature 0 to 50 °C, relative humidity 0 to 100%	temperature 0 to 50 °C, relative humidity 0 to 100%	temperature -20 to +80 °C, relative humidity 0 to 100%
Power consumption	3 to 5 W	3 to 5 W	0.4 W
Installation	Surface mounting (room sensor)	Surface mounting (room sensor)	Duct
Recommended mounting height	1.5 to 3.5 m	1.5 to 3.5 m	not specified
Degree of protection	IP 30	IP 30	IP 30 (sensor) / IP 65 (housing)
Dimensions	85 x 85 x 25 mm	85 x 85 x 25 mm	housing 68 x 63 x 40 mm, probe Ø 19.5 x 140 mm

Note on variants

Select the required version under Type.

Type	Item number
SFT-A-N, room sensor humidity and temperature	L012122202
SFT-A, room sensor humidity and temperature	8007090017
SFT-K-N, duct sensor humidity and temperature	8007090032

Features

SFT-A-N, room sensor humidity and temperature: No display
SFT-A, room sensor humidity and temperature: No display
SFT-A, room sensor humidity and temperature: S&P lists the SFT-A as room sensor for humidity and temperature among others for the CAD-COMPACT ADVANCED and CADB/T-HE PRO-REG ventilation units.
SFT-K-N, duct sensor humidity and temperature: S&P lists the SFT-K-N as duct sensor for humidity and temperature among others for the CAD-COMPACT ADVANCED, CADB/T-HE PRO-REG and RHE ventilation units.

Data sheets and manuals (PDF)

Catalogue page electrical accessories sensors 0 to 10 V (PDF)
