S&P Deutschland GmbH  |  SKU: L012122203

S&P SCO2 CO2 Sensors for Room and Duct

51049 € 69734 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P SCO2 CO2 Sensors for Room and Duct: carbon dioxide sensors from S&P for demand-controlled ventilation, as room sensors for surface mounting or as duct sensors, some additionally with temperature and humidity measurement. 6 versions are available under type.

The versions in detail

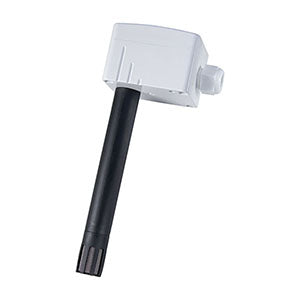

SCO2-K, duct sensor CO2, 0 to 10 V: S&P SCO2-K is a duct sensor from S&P for measuring carbon dioxide in ventilation ducts, with an analogue 0 to 10 V output signal. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

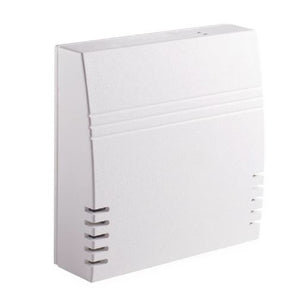

SCO2-AC-N, room sensor CO2, 0 to 10 V: S&P SCO2-AC-N is a room sensor from S&P for measuring carbon dioxide with an analogue 0 to 10 V output signal, for surface mounting. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

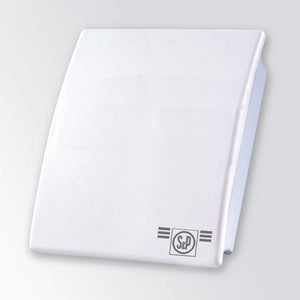

SCO2-AR, room sensor CO2, switching: S&P SCO2-AR is a room sensor from S&P for the carbon dioxide dependent control of one or more fans with hysteresis function. It switches via a potential-free contact; set point and switching differential are adjustable.

SCO2FT-K-N, duct sensor CO2, humidity and temperature: S&P SCO2FT-K-N is a duct sensor from S&P for measuring carbon dioxide, temperature and relative humidity in ventilation ducts, with an analogue 0 to 10 V output signal. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

SCO2T-A, room sensor CO2 and temperature: S&P SCO2T-A is a room sensor from S&P for measuring carbon dioxide and temperature with an analogue 0 to 10 V output signal, for surface mounting. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

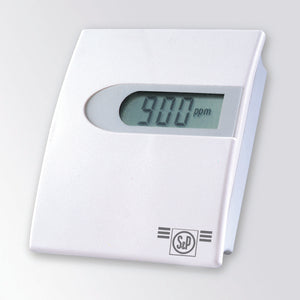

SCO2T-AD, room sensor CO2 and temperature, with display: S&P SCO2T-AD is a room sensor with display from S&P for measuring carbon dioxide and temperature with an analogue 0 to 10 V output signal, for surface mounting. According to S&P, the measured value is converted into a proportional signal of 0 to 10 V (for example 45% relative humidity = 4.5 V). For fan control, an additional control unit is required, for example CONTROL ECOWATT AC/DC; the sensors can also be connected to the control system of ventilation units. In both cases, the set point is set on the controller.

Technical data

Data per version:

Feature SCO2-K, duct sensor CO2, 0 to 10 V SCO2-AC-N, room sensor CO2, 0 to 10 V SCO2-AR, room sensor CO2, switching SCO2FT-K-N, duct sensor CO2, humidity and temperature SCO2T-A, room sensor CO2 and temperature SCO2T-AD, room sensor CO2 and temperature, with display
Measured variables carbon dioxide 0 to 2,000 ppm carbon dioxide 0 to 2,000 ppm not specified carbon dioxide 0 to 2,000 ppm, temperature -20 to +80 °C, relative humidity 0 to 100% carbon dioxide 0 to 2,000 ppm, temperature 0 to 50 °C carbon dioxide 0 to 2,000 ppm, temperature 0 to 50 °C
Supply voltage 24 V AC/DC (±10%) 24 V AC/DC (±10%) 15 to 35 V DC or 24 V AC (transformer required for power supply) 24 V AC/DC (±10%) 24 V AC/DC (±10%) 24 V AC/DC (±10%)
Output signal 0 to 10 V 0 to 10 V not specified 0 to 10 V 0 to 10 V 0 to 10 V
Installation Duct Surface mounting (room sensor) Surface mounting Duct Surface mounting (room sensor) Surface mounting (room sensor)
Degree of protection IP 30 (sensor) / IP 65 (housing) not specified IP 20 IP 30 (sensor) / IP 65 (housing) IP 20 IP 20
Power consumption 2.3 W not specified not specified not specified 3 to 5 W 3 to 5 W
Dimensions housing 90 x 88 x 52 mm 85 x 85 x 25 mm 85 x 100 x 26 mm housing 84 x 84 x 44 mm, probe Ø 19.5 x 180 mm 85 x 100 x 26 mm 85 x 100 x 26 mm

Note on variants

Select the required version under Type.

Type Item number
SCO2-K, duct sensor CO2, 0 to 10 V L012122203
SCO2-AC-N, room sensor CO2, 0 to 10 V L012122201
SCO2-AR, room sensor CO2, switching 5416803800
SCO2FT-K-N, duct sensor CO2, humidity and temperature 8007090033
SCO2T-A, room sensor CO2 and temperature 5401221000
SCO2T-AD, room sensor CO2 and temperature, with display 5416730900

Features
  • SCO2-K, duct sensor CO2, 0 to 10 V: Duct sensor for demand-controlled ventilation according to carbon dioxide concentration in combination with a control unit
  • SCO2-AC-N, room sensor CO2, 0 to 10 V: Room sensor for demand-controlled ventilation according to carbon dioxide concentration in combination with a control unit
  • SCO2-AR, room sensor CO2, switching: Potential-free contact (ventilation ON/OFF)
  • SCO2-AR, room sensor CO2, switching: Set point and switching differential adjustable
  • SCO2-AR, room sensor CO2, switching: According to S&P, a transformer is required for the power supply.
  • SCO2FT-K-N, duct sensor CO2, humidity and temperature: S&P lists this sensor as a duct sensor among others for the CAD-COMPACT ADVANCED and CADB/T-HE PRO-REG ventilation units.
  • SCO2T-A, room sensor CO2 and temperature: No display
  • SCO2T-A, room sensor CO2 and temperature: According to S&P, humidity can also be measured with the S-RF retrofit module (article number 8070304103).
  • SCO2T-A, room sensor CO2 and temperature: S&P lists this room sensor among others for the CAD-COMPACT ADVANCED and CADB/T-HE PRO-REG ventilation units.
  • SCO2T-AD, room sensor CO2 and temperature, with display: Display for showing the measured values
  • SCO2T-AD, room sensor CO2 and temperature, with display: According to S&P, humidity can also be measured with the S-RF retrofit module (article number 8070304103).
