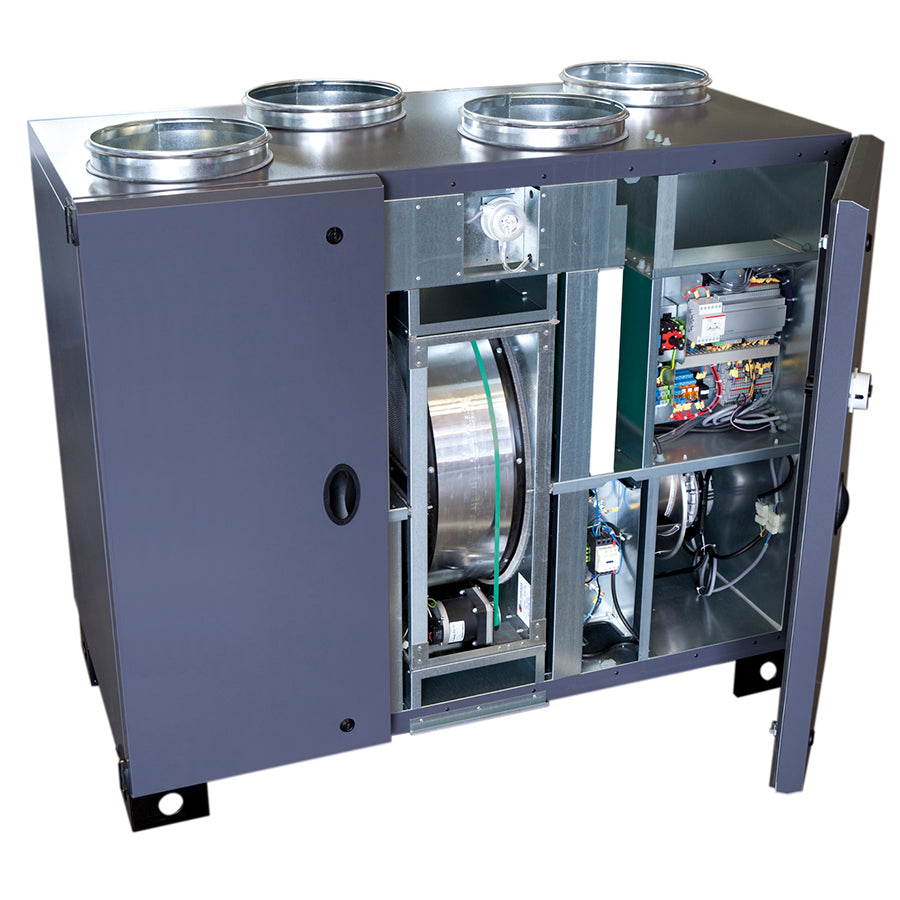

S&P RHE Ventilation Unit with Rotary Heat Exchanger

From11.63299 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Configure your version

Select the attributes in any order. Only combinations that exist are offered.

Loading configurator …
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P RHE Ventilation Unit with Rotary Heat Exchanger: Ventilation unit with rotary heat exchanger, EC fans (plug fan) and integrated PRO-REG control from the S&P RHE series. The version determines the air post-treatment: without coil (D), hot water heating coil (DC), separate hot water and chilled water coils (DC/DF), reversible water coil for heating or cooling (DFR, with four rows as DFR4R), electric heating coil (DI, also as DI 4KW) or direct expansion coil (DX). The design indicates the position of the air connections, at the side, one above the other (HD) or on top of the unit pointing upwards (VD), plus the operating side in supply air direction on the left (L) or right (R); OI stands for the version with rain roof, which according to the manufacturer allows outdoor installation.

Technical data
Manufacturer S&P
Heat exchanger rotary heat exchanger (standard rotor), heat recovery up to 88% according to the manufacturer, EUROVENT certified according to the manufacturer
Fans plug fan with backward curved centrifugal impeller made of galvanised sheet steel, EC motor, thermal contacts integrated in the electronics
Filters extract air M5 (ePM10 ≥ 75%); supply air G4 (ISO Coarse 60%) as pre-filter and F7 (ePM1 ≥ 55%); F9 (ePM1 ≥ 80%) available as an accessory on request; filter monitoring via integrated differential pressure measurement
Housing self-supporting, double-walled; outer coating with corrosion resistance class RC3 and UV resistance class RUV3 according to EN 10169 in RAL 7024; inner walls made of galvanised sheet steel
Insulation mineral wool 50 mm (40 kg/m³, thermal conductivity 0.037 W/(m·K)), non-combustible (A1 according to EN 13501-1)
Casing classes EN 1886: D2/L2/F7/T3/TB3 according to the manufacturer's in-house laboratory tests; internal leakage C2 (below 2%) according to EN 13141-7
Operation ETD touch display, 10 m cable with RJ10 plug (maximum 100 m)
Building management Modbus RTU (RS485), BACnet TCP/IP, web server TCP/IP
Series RHE
Control PRO-REG, integrated

Data per version:

Feature RHE DI RHE D RHE DC RHE DC/DF RHE DFR RHE DFR4R RHE DX
Fan motor protection not specified not specified not specified size 6000: IP54, insulation class B; sizes 8000 and 10000: IP54, insulation class F; size 15000: IP55, insulation class F sizes 700, 1300, 1900, 2500, 3500, 4500 and 6000: IP54, insulation class B; sizes 8000 and 10000: IP54, insulation class F; size 15000: IP55, insulation class F size 6000: IP54, insulation class B; sizes 8000 and 10000: IP54, insulation class F; size 15000: IP55, insulation class F sizes 700, 1300, 1900, 2500, 3500, 4500 and 6000: IP54, insulation class B; sizes 8000 and 10000: IP54, insulation class F
Delivery form not specified not specified not specified sizes 6000, 8000, 10000 and 15000 in two parts on mounting rails (100 mm, 156 mm for size 15000) sizes 700, 1300, 1900, 2500, 3500 and 4500 as a compact unit on 100 mm high powder-coated feet; sizes 6000, 8000, 10000 and 15000 in two parts on mounting rails (100 mm, 156 mm for size 15000) sizes 6000, 8000, 10000 and 15000 in two parts on mounting rails (100 mm, 156 mm for size 15000) sizes 700, 1300, 1900, 2500, 3500 and 4500 as a compact unit on 100 mm high powder-coated feet; sizes 6000, 8000 and 10000 in two parts on 100 mm high mounting rails

Note on variants

Select version, design and size. Not every combination is available.

Version Design Size Item number Max. airflow Power supply Heating output Total power Total current Duct connection Dimensions¹ Weight²

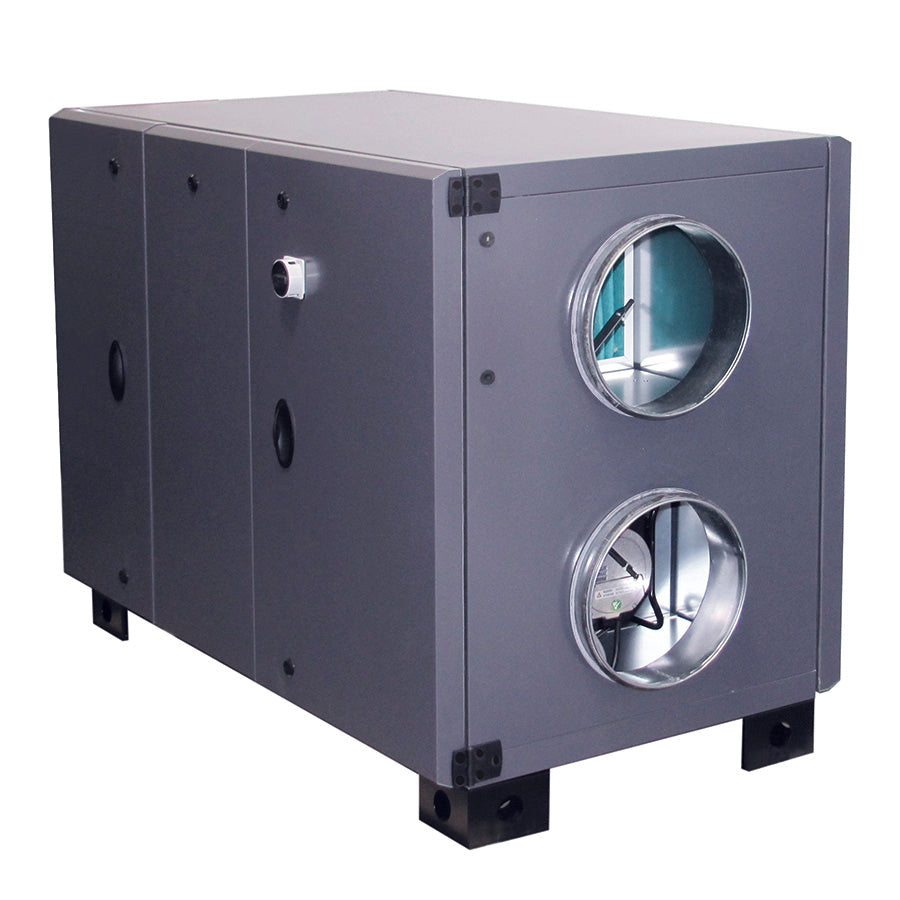

DI (electric heating coil) HDL 700 5153707100 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DI (electric heating coil) HDL 1300 5153694000 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DI (electric heating coil) HDL 1900 5153694100 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DI (electric heating coil) HDL 2500 5153694200 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DI (electric heating coil) HDL 3500 5153694300 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DI (electric heating coil) HDL 4500 5153707500 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DI (electric heating coil) HDL 6000 5153697200 6,000 m³/h 3/400 V, 50 Hz + N 24 kW 28 kW 41.9 A 700 x 510 mm 1972 x 1315 x 1553 mm 596 kg
DI (electric heating coil) HDL 8000 5153697400 8,000 m³/h 3/400 V, 50 Hz + N 36 kW 42 kW 61.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 779 kg
DI (electric heating coil) HDL 10000 5153698500 10,000 m³/h 3/400 V, 50 Hz + N 48 kW 55 kW 79.8 A 1100 x 610 mm 2412 x 1735 x 1971 mm 948 kg
DI (electric heating coil) HDL 15000 5153142800 15,000 m³/h 3/400 V, 50 Hz + N 72 kW³ 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1730 kg

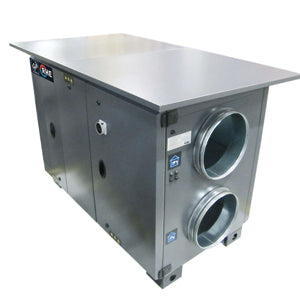

DI 4KW (electric heating coil, 4KW version) HDL 1900 L012800096 n/a n/a n/a n/a n/a Ø 355 mm n/a n/a
DI 4KW (electric heating coil, 4KW version) HDL OI 1900 L012800097 n/a n/a n/a n/a n/a Ø 355 mm n/a n/a
DI (electric heating coil) HDL OI 700 5153707900 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DI (electric heating coil) HDL OI 1300 5153695600 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DI (electric heating coil) HDL OI 1900 5153695700 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DI (electric heating coil) HDL OI 2500 5153695800 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DI (electric heating coil) HDL OI 3500 5153695900 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DI (electric heating coil) HDL OI 4500 5153708300 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DI (electric heating coil) HDL OI 6000 5153697300 6,000 m³/h 3/400 V, 50 Hz + N 24 kW 28 kW 41.9 A 700 x 510 mm 2232 x 1500 x 1659 mm 636 kg
DI (electric heating coil) HDL OI 8000 5153697500 8,000 m³/h 3/400 V, 50 Hz + N 36 kW 42 kW 61.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 827 kg
DI (electric heating coil) HDL OI 10000 5153698900 10,000 m³/h 3/400 V, 50 Hz + N 48 kW 55 kW 79.8 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1005 kg
DI (electric heating coil) HDL OI 15000 5153144000 15,000 m³/h 3/400 V, 50 Hz + N 72 kW³ 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1865 kg
DI (electric heating coil) HDR 700 5153704900 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DI (electric heating coil) HDR 1300 5153530500 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DI (electric heating coil) HDR 1900 5153530600 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DI (electric heating coil) HDR 2500 5153530700 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DI (electric heating coil) HDR 3500 5153530800 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DI (electric heating coil) HDR 4500 5153705600 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DI (electric heating coil) HDR 6000 5153575400 6,000 m³/h 3/400 V, 50 Hz + N 24 kW 28 kW 41.9 A 700 x 510 mm 1972 x 1315 x 1553 mm 596 kg
DI (electric heating coil) HDR 8000 5153575600 8,000 m³/h 3/400 V, 50 Hz + N 36 kW 42 kW 61.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 779 kg
DI (electric heating coil) HDR 10000 5153666400 10,000 m³/h 3/400 V, 50 Hz + N 48 kW 55 kW 79.8 A 1100 x 610 mm 2412 x 1735 x 1971 mm 948 kg
DI (electric heating coil) HDR 15000 5153142200 15,000 m³/h 3/400 V, 50 Hz + N 72 kW³ 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1730 kg
DI 4KW (electric heating coil, 4KW version) HDR 1900 L012800094 n/a n/a n/a n/a n/a Ø 355 mm n/a n/a
DI 4KW (electric heating coil, 4KW version) HDR OI 1900 L012800095 n/a n/a n/a n/a n/a Ø 355 mm n/a n/a
DI (electric heating coil) HDR OI 700 5153706300 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DI (electric heating coil) HDR OI 1300 5153532100 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DI (electric heating coil) HDR OI 1900 5153532200 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DI (electric heating coil) HDR OI 2500 5153532300 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DI (electric heating coil) HDR OI 3500 5153532400 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DI (electric heating coil) HDR OI 4500 5153706700 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DI (electric heating coil) HDR OI 6000 5153575500 6,000 m³/h 3/400 V, 50 Hz + N 24 kW 28 kW 41.9 A 700 x 510 mm 2232 x 1500 x 1659 mm 636 kg
DI (electric heating coil) HDR OI 8000 5153575700 8,000 m³/h 3/400 V, 50 Hz + N 36 kW 42 kW 61.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 827 kg
DI (electric heating coil) HDR OI 10000 5153666800 10,000 m³/h 3/400 V, 50 Hz + N 48 kW 55 kW 79.8 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1005 kg
DI (electric heating coil) HDR OI 15000 5153143400 15,000 m³/h 3/400 V, 50 Hz + N 72 kW³ 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1865 kg
DI (electric heating coil) VDL 700 5153183600 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DI (electric heating coil) VDL 1300 5153184000 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DI (electric heating coil) VDL 1900 5153184300 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
DI (electric heating coil) VDL 2500 5153184600 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
DI (electric heating coil) VDL 3500 5153184900 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
DI (electric heating coil) VDL 4500 5153185200 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A 700 x 310 mm see data sheet 444 kg
DI (electric heating coil) VDR 700 5153705300 700 m³/h 1/230 V, 50 Hz 3 kW 4 kW 17.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DI (electric heating coil) VDR 1300 5153533700 1,300 m³/h 1/230 V, 50 Hz 4 kW 6 kW 24.6 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DI (electric heating coil) VDR 1900 5153533800 1,900 m³/h 1/230 V, 50 Hz 8 kW 10 kW 42.2 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
DI (electric heating coil) VDR 2500 5153533900 2,500 m³/h 3/400 V, 50 Hz + N 12 kW 15 kW 21.8 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
DI (electric heating coil) VDR 3500 5153534000 3,500 m³/h 3/400 V, 50 Hz + N 15 kW 18 kW 26.3 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
DI (electric heating coil) VDR 4500 5153706000 4,500 m³/h 3/400 V, 50 Hz + N 15 kW 19 kW 29 A 700 x 310 mm see data sheet 444 kg
DI 4KW (electric heating coil, 4KW version) VDR 1900 L012800098 n/a n/a n/a n/a n/a Ø 315 mm n/a n/a
D (without coil) HDL 700 5153707000 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
D (without coil) HDL 1300 5153693600 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
D (without coil) HDL 1900 5153693700 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
D (without coil) HDL 2500 5153693800 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
D (without coil) HDL 3500 5153693900 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
D (without coil) HDL 4500 5153707400 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
D (without coil) HDL 6000 5153696800 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 569 kg
D (without coil) HDL 8000 5153697000 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 742 kg
D (without coil) HDL 10000 5153698400 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 904 kg
D (without coil) HDL 15000 5153142700 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1640 kg
D (without coil) HDL OI 700 5153707800 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
D (without coil) HDL OI 1300 5153695200 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
D (without coil) HDL OI 1900 5153695300 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
D (without coil) HDL OI 2500 5153695400 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
D (without coil) HDL OI 3500 5153695500 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
D (without coil) HDL OI 4500 5153708200 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
D (without coil) HDL OI 6000 5153696900 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 609 kg
D (without coil) HDL OI 8000 5153697100 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 790 kg
D (without coil) HDL OI 10000 5153698800 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 961 kg
D (without coil) HDL OI 15000 5153143900 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1775 kg
D (without coil) HDR 700 5153704800 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
D (without coil) HDR 1300 5153530100 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
D (without coil) HDR 1900 5153530200 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
D (without coil) HDR 2500 5153530300 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
D (without coil) HDR 3500 5153530400 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
D (without coil) HDR 4500 5153705500 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
D (without coil) HDR 6000 5153575000 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 569 kg
D (without coil) HDR 8000 5153575200 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 742 kg
D (without coil) HDR 10000 5153666300 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 904 kg
D (without coil) HDR 15000 5153142100 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1640 kg
D (without coil) HDR OI 700 5153706200 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
D (without coil) HDR OI 1300 5153531700 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
D (without coil) HDR OI 1900 5153531800 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
D (without coil) HDR OI 2500 5153531900 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
D (without coil) HDR OI 3500 5153532000 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
D (without coil) HDR OI 4500 5153706600 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
D (without coil) HDR OI 6000 5153575100 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 609 kg
D (without coil) HDR OI 8000 5153575300 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 790 kg
D (without coil) HDR OI 10000 5153666700 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 961 kg
D (without coil) HDR OI 15000 5153143300 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1775 kg
D (without coil) VDL 700 5153183500 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
D (without coil) VDL 1300 5153183800 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
D (without coil) VDL 1900 5153184100 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
D (without coil) VDL 2500 5153184400 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
D (without coil) VDL 3500 5153184700 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
D (without coil) VDL 4500 5153185000 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 310 mm see data sheet 432 kg
D (without coil) VDR 700 5153705200 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
D (without coil) VDR 1300 5153533300 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
D (without coil) VDR 1900 5153533400 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
D (without coil) VDR 2500 5153533500 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
D (without coil) VDR 3500 5153533600 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
D (without coil) VDR 4500 5153705900 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 310 mm see data sheet 432 kg
DC (hot water heating coil) HDL 700 5153707200 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DC (hot water heating coil) HDL 1300 5153694400 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DC (hot water heating coil) HDL 1900 5153694500 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DC (hot water heating coil) HDL 2500 5153694600 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DC (hot water heating coil) HDL 3500 5153694700 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DC (hot water heating coil) HDL 4500 5153707600 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DC (hot water heating coil) HDL 6000 5153697600 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 590 kg
DC (hot water heating coil) HDL 8000 5153697800 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 770 kg
DC (hot water heating coil) HDL 10000 5153698600 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 938 kg
DC (hot water heating coil) HDL 15000 5153142900 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1680 kg
DC (hot water heating coil) HDL OI 700 5153708000 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DC (hot water heating coil) HDL OI 1300 5153696000 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DC (hot water heating coil) HDL OI 1900 5153696100 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DC (hot water heating coil) HDL OI 2500 5153696200 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DC (hot water heating coil) HDL OI 3500 5153696300 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DC (hot water heating coil) HDL OI 4500 5153708400 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DC (hot water heating coil) HDL OI 6000 5153697700 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 630 kg
DC (hot water heating coil) HDL OI 8000 5153697900 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 818 kg
DC (hot water heating coil) HDL OI 10000 5153699000 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 995 kg
DC (hot water heating coil) HDL OI 15000 5153144100 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1815 kg
DC (hot water heating coil) HDR 700 5153705000 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DC (hot water heating coil) HDR 1300 5153530900 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DC (hot water heating coil) HDR 1900 5153531000 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DC (hot water heating coil) HDR 2500 5153531100 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DC (hot water heating coil) HDR 3500 5153531200 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DC (hot water heating coil) HDR 4500 5153705700 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DC (hot water heating coil) HDR 6000 5153575800 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 590 kg
DC (hot water heating coil) HDR 8000 5153576000 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 770 kg
DC (hot water heating coil) HDR 10000 5153666500 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 938 kg
DC (hot water heating coil) HDR 15000 5153142300 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1680 kg
DC (hot water heating coil) HDR OI 700 5153706400 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DC (hot water heating coil) HDR OI 1300 5153532500 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DC (hot water heating coil) HDR OI 1900 5153532600 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DC (hot water heating coil) HDR OI 2500 5153532700 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DC (hot water heating coil) HDR OI 3500 5153532800 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DC (hot water heating coil) HDR OI 4500 5153706800 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DC (hot water heating coil) HDR OI 6000 5153575900 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 630 kg
DC (hot water heating coil) HDR OI 8000 5153576100 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 818 kg
DC (hot water heating coil) HDR OI 10000 5153666900 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 995 kg
DC (hot water heating coil) HDR OI 15000 5153143500 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1815 kg
DC (hot water heating coil) VDL 700 5153183700 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DC (hot water heating coil) VDL 1300 5153183900 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DC (hot water heating coil) VDL 1900 5153184200 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
DC (hot water heating coil) VDL 2500 5153184500 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
DC (hot water heating coil) VDL 3500 5153184800 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
DC (hot water heating coil) VDL 4500 5153185100 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 310 mm see data sheet 444 kg
DC (hot water heating coil) VDR 700 5153705400 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DC (hot water heating coil) VDR 1300 5153534100 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 250 mm 1285 x 715 x 1125 mm 196 kg
DC (hot water heating coil) VDR 1900 5153534200 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 315 mm 1490 x 815 x 1250 mm 257 kg
DC (hot water heating coil) VDR 2500 5153534300 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 355 mm 1740 x 965 x 1350 mm 328 kg
DC (hot water heating coil) VDR 3500 5153534400 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1900 x 1125 x 1530 mm 395 kg
DC (hot water heating coil) VDR 4500 5153706100 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 310 mm see data sheet 444 kg
DC/DF (separate hot water and chilled water coils) HDL 6000 5153720500 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 618 kg
DC/DF (separate hot water and chilled water coils) HDL 8000 5153720600 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 809 kg
DC/DF (separate hot water and chilled water coils) HDL 10000 5153720700 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 984 kg
DC/DF (separate hot water and chilled water coils) HDL 15000 5153143100 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1760 kg
DC/DF (separate hot water and chilled water coils) HDL OI 6000 5153720800 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 658 kg
DC/DF (separate hot water and chilled water coils) HDL OI 8000 5153720900 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 857 kg
DC/DF (separate hot water and chilled water coils) HDL OI 10000 5153721000 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1041 kg
DC/DF (separate hot water and chilled water coils) HDL OI 15000 5153144300 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1895 kg
DC/DF (separate hot water and chilled water coils) HDR 6000 5153719900 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 618 kg
DC/DF (separate hot water and chilled water coils) HDR 8000 5153720000 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 809 kg
DC/DF (separate hot water and chilled water coils) HDR 10000 5153720100 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 984 kg
DC/DF (separate hot water and chilled water coils) HDR 15000 5153142500 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1760 kg
DC/DF (separate hot water and chilled water coils) HDR OI 6000 5153720200 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 658 kg
DC/DF (separate hot water and chilled water coils) HDR OI 8000 5153720300 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 857 kg
DC/DF (separate hot water and chilled water coils) HDR OI 10000 5153720400 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1041 kg
DC/DF (separate hot water and chilled water coils) HDR OI 15000 5153143700 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1895 kg
DFR (reversible water coil, heating or cooling) HDL 700 5153707300 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DFR (reversible water coil, heating or cooling) HDL 1300 5153694800 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DFR (reversible water coil, heating or cooling) HDL 1900 5153694900 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DFR (reversible water coil, heating or cooling) HDL 2500 5153695000 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DFR (reversible water coil, heating or cooling) HDL 3500 5153695100 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DFR (reversible water coil, heating or cooling) HDL 4500 5153707700 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DFR (reversible water coil, heating or cooling) HDL 6000 5153698000 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 597 kg
DFR (reversible water coil, heating or cooling) HDL 8000 5153698200 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 780 kg
DFR (reversible water coil, heating or cooling) HDL 10000 5153698700 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 950 kg
DFR (reversible water coil, heating or cooling) HDL 15000 5153143000 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1720 kg
DFR (reversible water coil, heating or cooling) HDL OI 700 5153708100 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DFR (reversible water coil, heating or cooling) HDL OI 1300 5153696400 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DFR (reversible water coil, heating or cooling) HDL OI 1900 5153696500 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DFR (reversible water coil, heating or cooling) HDL OI 2500 5153696600 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DFR (reversible water coil, heating or cooling) HDL OI 3500 5153696700 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DFR (reversible water coil, heating or cooling) HDL OI 4500 5153708500 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DFR (reversible water coil, heating or cooling) HDL OI 6000 5153698100 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 637 kg
DFR (reversible water coil, heating or cooling) HDL OI 8000 5153698300 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 828 kg
DFR (reversible water coil, heating or cooling) HDL OI 10000 5153699100 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1007 kg
DFR (reversible water coil, heating or cooling) HDL OI 15000 5153144200 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm 1855 kg
DFR (reversible water coil, heating or cooling) HDR 700 5153705100 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DFR (reversible water coil, heating or cooling) HDR 1300 5153531300 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DFR (reversible water coil, heating or cooling) HDR 1900 5153531400 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DFR (reversible water coil, heating or cooling) HDR 2500 5153531500 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DFR (reversible water coil, heating or cooling) HDR 3500 5153531600 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DFR (reversible water coil, heating or cooling) HDR 4500 5153705800 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DFR (reversible water coil, heating or cooling) HDR 6000 5153576200 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 597 kg
DFR (reversible water coil, heating or cooling) HDR 8000 5153576400 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 780 kg
DFR (reversible water coil, heating or cooling) HDR 10000 5153666600 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 950 kg
DFR (reversible water coil, heating or cooling) HDR 15000 5134142400 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm 1720 kg
DFR4R (reversible water coil, four rows) HDL 6000 5153850300 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm not specified
DFR4R (reversible water coil, four rows) HDL 8000 5153850400 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm not specified
DFR4R (reversible water coil, four rows) HDL 10000 5153850500 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm not specified
DFR4R (reversible water coil, four rows) HDL 15000 5153143200 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm not specified
DFR4R (reversible water coil, four rows) HDL OI 6000 5153850600 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm not specified
DFR4R (reversible water coil, four rows) HDL OI 8000 5153850700 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm not specified
DFR4R (reversible water coil, four rows) HDL OI 10000 5153850800 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm not specified
DFR4R (reversible water coil, four rows) HDL OI 15000 5153144400 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2500 mm not specified
DFR4R (reversible water coil, four rows) HDR 6000 5153849700 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm not specified
DFR4R (reversible water coil, four rows) HDR 8000 5153849800 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm not specified
DFR4R (reversible water coil, four rows) HDR 10000 5153849900 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm not specified
DFR4R (reversible water coil, four rows) HDR 15000 5153142600 15,000 m³/h 3/400 V, 50 Hz + N 12 kW 18.5 A 1800 x 910 mm 3325 x 2215 x 2460 mm not specified
DX (direct expansion coil) HDL 700 5153848000 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DX (direct expansion coil) HDL 1300 5153843200 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DX (direct expansion coil) HDL 1900 5153844000 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DX (direct expansion coil) HDL 2500 5153844800 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DX (direct expansion coil) HDL 3500 5153845600 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DX (direct expansion coil) HDL 4500 5153846400 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DX (direct expansion coil) HDL 6000 5153847200 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 607 kg
DX (direct expansion coil) HDL 8000 5153848800 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 794 kg
DX (direct expansion coil) HDL 10000 5153842400 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 966 kg
DX (direct expansion coil) HDL OI 700 5153848100 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DX (direct expansion coil) HDL OI 1300 5153843300 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DX (direct expansion coil) HDL OI 1900 5153844100 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DX (direct expansion coil) HDL OI 2500 5153844900 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DX (direct expansion coil) HDL OI 3500 5153845700 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DX (direct expansion coil) HDL OI 4500 5153846500 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DX (direct expansion coil) HDL OI 6000 5153847300 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 647 kg
DX (direct expansion coil) HDL OI 8000 5153848900 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 842 kg
DX (direct expansion coil) HDL OI 10000 5153842500 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1023 kg
DX (direct expansion coil) HDR 700 5153848400 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DX (direct expansion coil) HDR 1300 5153843600 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1309 x 715 x 983 mm 173 kg
DX (direct expansion coil) HDR 1900 5153844400 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1459 x 815 x 1085 mm 217 kg
DX (direct expansion coil) HDR 2500 5153845200 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1558 x 965 x 1183 mm 242 kg
DX (direct expansion coil) HDR 3500 5153846000 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1558 x 1125 x 1363 mm 323 kg
DX (direct expansion coil) HDR 4500 5153846800 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1558 x 1125 x 1363 mm 326 kg
DX (direct expansion coil) HDR 6000 5153847600 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 1972 x 1315 x 1553 mm 607 kg
DX (direct expansion coil) HDR 8000 5153849200 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2112 x 1565 x 1803 mm 794 kg
DX (direct expansion coil) HDR 10000 5153842800 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2412 x 1735 x 1971 mm 966 kg
DX (direct expansion coil) HDR OI 700 5153848500 700 m³/h 1/230 V, 50 Hz 1 kW 4.2 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DX (direct expansion coil) HDR OI 1300 5153843700 1,300 m³/h 1/230 V, 50 Hz 2 kW 7.3 A Ø 315 mm 1568 x 900 x 1068 mm 192 kg
DX (direct expansion coil) HDR OI 1900 5153844500 1,900 m³/h 1/230 V, 50 Hz 2 kW 7.5 A Ø 355 mm 1719 x 1000 x 1171 mm 239 kg
DX (direct expansion coil) HDR OI 2500 5153845300 2,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.5 A Ø 400 mm 1818 x 1150 x 1276 mm 268 kg
DX (direct expansion coil) HDR OI 3500 5153846100 3,500 m³/h 3/400 V, 50 Hz + N 3 kW 4.6 A Ø 450 mm 1818 x 1309 x 1462 mm 355 kg
DX (direct expansion coil) HDR OI 4500 5153846900 4,500 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A Ø 500 mm 1818 x 1309 x 1462 mm 355 kg
DX (direct expansion coil) HDR OI 6000 5153847700 6,000 m³/h 3/400 V, 50 Hz + N 4 kW 7.2 A 700 x 510 mm 2232 x 1500 x 1659 mm 647 kg
DX (direct expansion coil) HDR OI 8000 5153849300 8,000 m³/h 3/400 V, 50 Hz + N 6 kW 9.8 A 900 x 610 mm 2372 x 1750 x 1917 mm 842 kg
DX (direct expansion coil) HDR OI 10000 5153842900 10,000 m³/h 3/400 V, 50 Hz + N 6.5 kW 10.5 A 1100 x 610 mm 2672 x 1920 x 2093 mm 1023 kg

Features
  • Version DI: Time control (weekly and holiday program), BOOST function, ON/OFF via external signal, free night cooling and control of external motorised outdoor air shut-off dampers (24 V).
  • Versions DC/DF, DFR, DFR4R, DI and DX: CAV with two-stage operation, VAV according to air quality (carbon dioxide, VOC) or relative humidity via a sensor available as an accessory (0 to 10 V), COP via a differential pressure transmitter available as an accessory.
  • Versions D, DI and DX: Set point monitoring (airflow, pressure, temperature), fan run monitoring, sensor function monitoring, potential-free contact (e.g. shutdown in case of fire alarm) and alarm memory for the last 40 messages.
  • Versions D, DC and DI: Among the accessories, S&P lists the MIBL or MIBR recirculation mixing chamber, outdoor and exhaust air hoods, flexible connections (KAA or ELV RHE), the BRL RHE counter flange, the JK RHE N louvre damper, AKM-F motorised shut-off dampers (AKM-WF for outdoor installation), PAVZ vibration dampers and KIT AF adjustable feet.
  • Version DI: Electric heating coil with heating elements made of stainless steel (AISI 430), controlled proportionally via static relay (pulse width modulation, 0 to 10 V); two safety thermostats (70 °C automatic reset, 120 °C manual reset).
  • Version D: Standard according to the manufacturer: one mains connection point with maintenance switch for the entire unit, outdoor air, supply air and exhaust air temperature sensor, filter monitoring with indication on the display.
  • Version DC: Standard according to the manufacturer: one mains connection point with maintenance switch for the entire unit, outdoor air, supply air and exhaust air temperature sensor, filter monitoring with indication on the display, frost protection sensor for the water coil, control of the three-way valve actuator (proportional 0 to 10 V).
  • Versions DC/DF, DFR and DFR4R: Set point monitoring (airflow, pressure, temperature), fan run monitoring, sensor function monitoring, potential-free contact (e.g. shutdown in case of fire alarm) and alarm memory for the last 40 messages; frost protection function with monitoring of the coil return temperature.
  • Version DC/DF: Separate heating and cooling coils with aluminium fins on copper tubes, frost protection function; condensate tray and droplet separator made of stainless steel, condensate drain (siphon available as an accessory). According to the data sheet, the two coils roughly double the air-side pressure drop of the coil section.
  • Versions DC/DF, DFR and DFR4R: According to the manufacturer, three-way valves are not included; they are selected according to the water-side data (temperature difference, output, pressure drop).
  • Versions DC/DF and DFR4R: Replacement filters according to the manufacturer: AFR-RHE filter inserts for the respective size in classes G4, M5, F7 and F9; from size 2500, the filter surfaces consist of several elements.
  • Versions DC/DF, DFR, DFR4R and DX: Characteristic curves and coil performance data are given in the S&P data sheet.
  • Version DFR: Combined heating and cooling coil with aluminium fins on copper tubes, frost protection function, integrated THCO changeover thermostat; condensate tray and droplet separator made of stainless steel, condensate drain (siphon available as an accessory).
  • Version DFR4R: Combined heating and cooling coil with aluminium fins on copper tubes (four rows), frost protection function, integrated THCO changeover thermostat; condensate tray and droplet separator made of stainless steel, condensate drain (siphon available as an accessory).

¹ Dimensions according to dimension drawing A x B x C, for the designs with rain roof (OI) according to dimension drawing N x P x H1. ² Weight according to data sheet; for sizes 6000 to 15000 total weight of both modules. ³ According to the manufacturer, the electric heating coil of the RHE 15000 DI is connected directly via a separate maintenance switch (3/400 V, 50 Hz, 104 A); total power and total current in the table exclude the heating coil.

Data sheets and manuals (PDF)

Note on reviews: Any visitor can submit a review using the form; a purchase is not required. Anyone who submits a review receives an email to confirm their email address. Reviews marked “Verified” come from customers who bought the product from us. We do not check other reviews for a purchase.

Recommendations

From our range

Selected products from ventilation, filter and pipe technology.

View all recommendations →
