S&P Deutschland GmbH  |  SKU: 5133033223

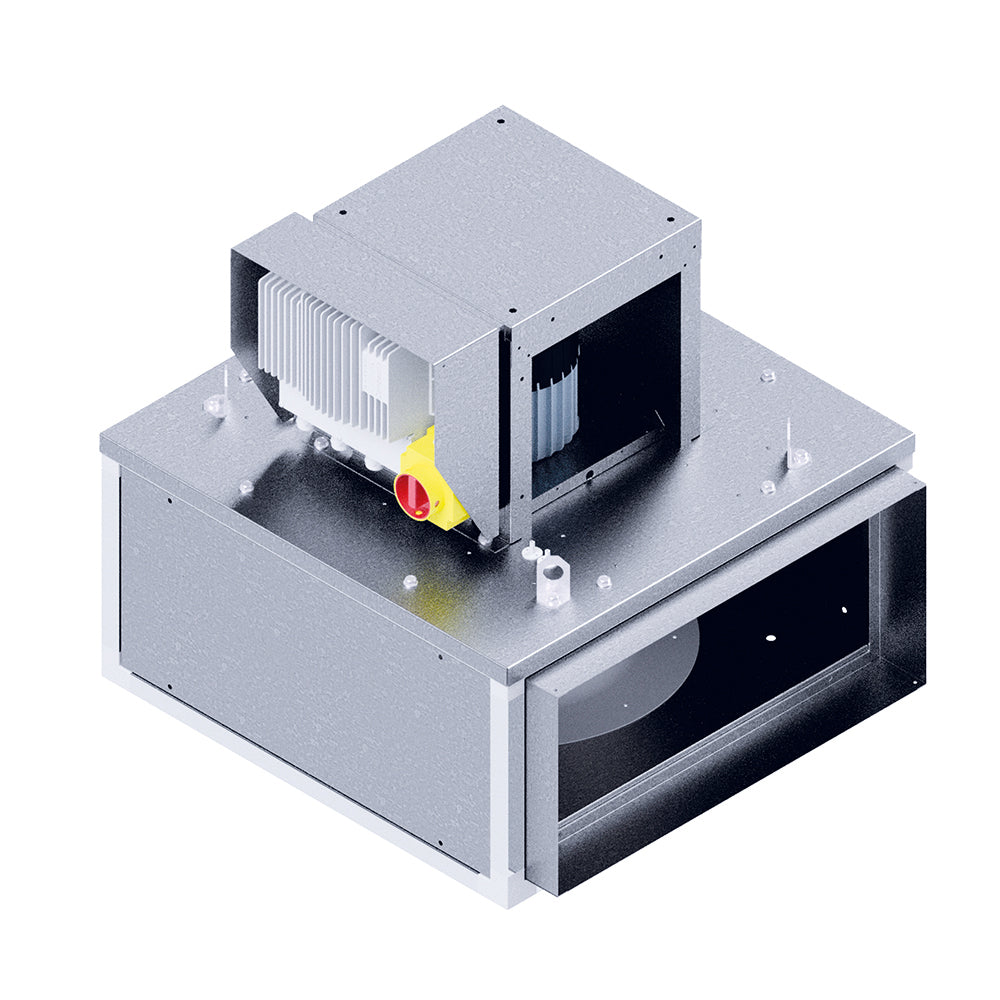

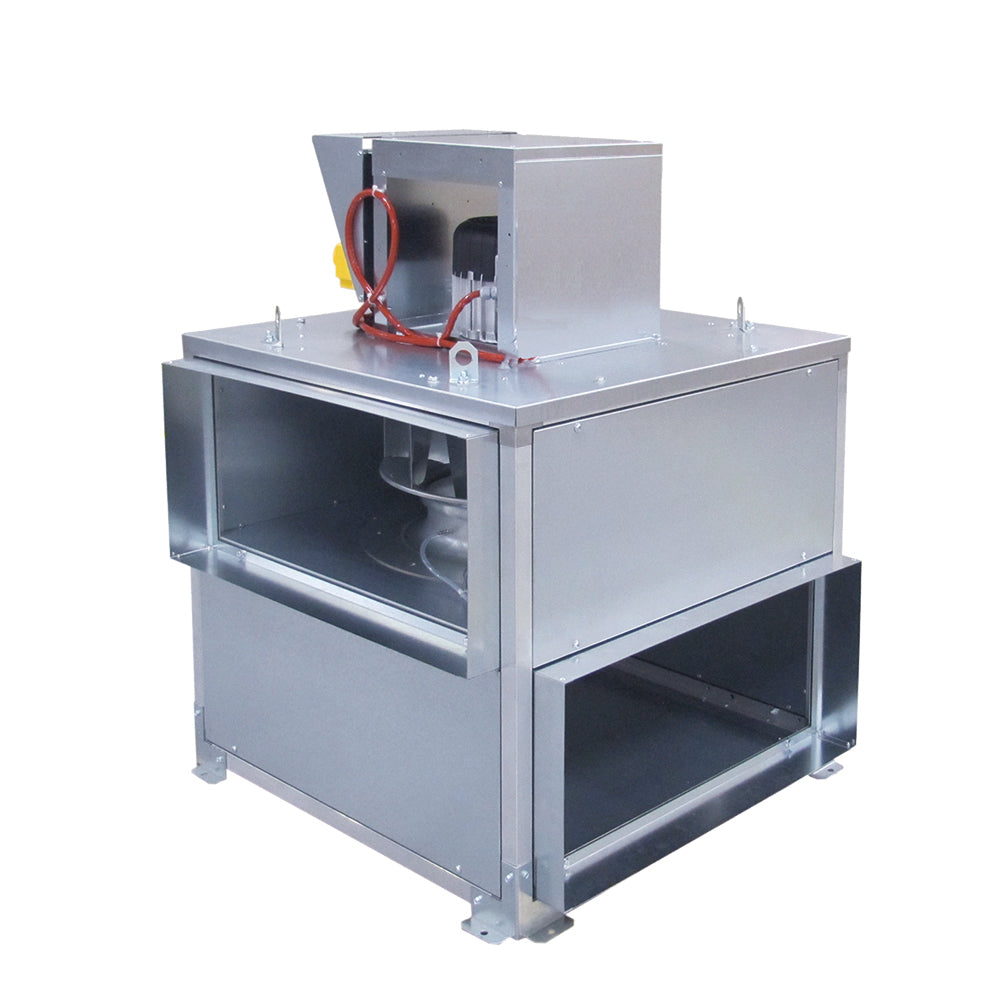

S&P ILHB/ILHT Duct Fan, EC Motor

3.89949 € 5.57396 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P ILHB/ILHT: Duct Fan, EC Motor. Available are the versions ILHB CC ECOWATT ASR, ILHB CC ECOWATT VAV, ILHB MV ECOWATT ASR, ILHB MV ECOWATT VAV, ILHT CC ECOWATT ASR, ILHT CC ECOWATT VAV, ILHT MV ECOWATT ASR and ILHT MV ECOWATT VAV as well as 12 sizes.

Technical data
Manufacturer S&P
Casing modular frame made of hollow aluminium profiles, side panels of galvanised sheet steel, removable side panels and cover
Sound insulation 25 mm lining, non-combustible (M0)
Impeller backward curved centrifugal impeller
Motor EC external rotor motor separated from the airflow and externally ventilated, insulation class F, protection class IP55, internal thermal contacts, continuous duty S1
Speed control 0 to 100% via 0-10 V signal
Control ASR system, only in combination with a supply air unit from the S&P CAIB / CAIT PRO-REG series; terminal box with maintenance switch
Air temperature -20 °C to +120 °C
Installation indoors or outdoors, motor axis horizontal or vertical

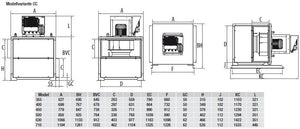

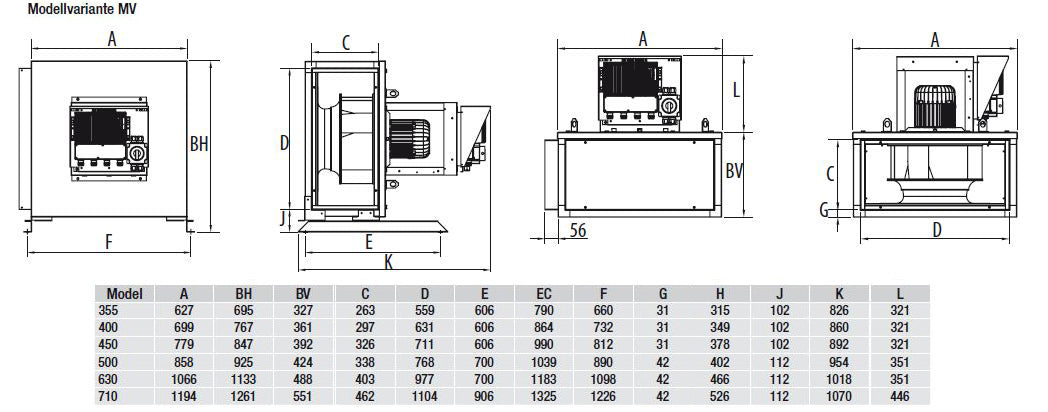

S&P typeItem numberVersionSizeSpeedMotor currentAirflow (free-blowing)Sound pressure level inlet/casing/outlet¹Duct connectionWeightSeriesPower supply
ILHB-355 CC ECOWATT ASR 09 145133033223ILHB CC ECOWATT ASR355 09 141,420 rpm3.1 A3,980 m³/h63 / 55 / 68 dB(A)559 x 263 mm65 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-400 CC ECOWATT ASR 09 145133033323ILHB CC ECOWATT ASR400 09 141,500 rpm3.1 A5,060 m³/h61 / 53 / 67 dB(A)631 x 297 mm78 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-450 CC ECOWATT ASR 09 145133033423ILHB CC ECOWATT ASR450 09 141,500 rpm5.4 A7,300 m³/h66 / 59 / 72 dB(A)711 x 326 mm98 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-355 CC ECOWATT VAV 095133859723ILHB CC ECOWATT VAV355 091,420 rpm3.1 A3,980 m³/h63 / 55 / 68 dB(A)559 x 263 mm65 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHB-400 CC ECOWATT VAV 095133860023ILHB CC ECOWATT VAV400 091,500 rpm3.1 A5,060 m³/h61 / 53 / 67 dB(A)631 x 297 mm78 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHB-450 CC ECOWATT VAV 095133860323ILHB CC ECOWATT VAV450 091,500 rpm5.4 A7,300 m³/h66 / 59 / 72 dB(A)711 x 326 mm98 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHB-355 MV ECOWATT ASR 09 145133032423ILHB MV ECOWATT ASR355 09 141,830 rpm3.1 A4,230 m³/h62 / 51 / 64 dB(A)559 x 263 mm44 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-400 MV ECOWATT ASR 09 145133032523ILHB MV ECOWATT ASR400 09 141,500 rpm3.1 A5,390 m³/h62 / 50 / 63 dB(A)631 x 297 mm55 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-450 MV ECOWATT ASR 09 145133032623ILHB MV ECOWATT ASR450 09 141,500 rpm5.4 A7,870 m³/h66 / 55 / 67 dB(A)711 x 326 mm72 kgILHB / ILHT ECOWATT ASR1~ 230 V, 50/60 Hz
ILHB-355 MV ECOWATT VAV 095133861523ILHB MV ECOWATT VAV355 091,830 rpm3.1 A4,230 m³/h62 / 51 / 64 dB(A)559 x 263 mm44 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHB-400 MV ECOWATT VAV 095133861823ILHB MV ECOWATT VAV400 091,500 rpm3.1 A5,390 m³/h62 / 50 / 63 dB(A)631 x 297 mm55 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHB-450 MV ECOWATT VAV 095133862123ILHB MV ECOWATT VAV450 091,500 rpm5.4 A7,870 m³/h66 / 55 / 67 dB(A)711 x 326 mm72 kgILHB / ILHT ECOWATT VAV1~ 230 V, 50/60 Hz
ILHT-500 CC ECOWATT ASR 09 145133033523ILHT CC ECOWATT ASR500 09 141,500 rpm3.5 A9,140 m³/h67 / 59 / 75 dB(A)768 x 338 mm120 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-630 CC ECOWATT ASR 09 145133033623ILHT CC ECOWATT ASR630 09 141,130 rpm7.0 A11,820 m³/h68 / 58 / 72 dB(A)977 x 403 mm177 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-710 CC ECOWATT ASR 09 145133033723ILHT CC ECOWATT ASR710 09 141,250 rpm12.4 A24,120 m³/h73 / 66 / 79 dB(A)1104 x 462 mm279 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-500 CC ECOWATT VAV 095133860623ILHT CC ECOWATT VAV500 091,500 rpm3.5 A9,140 m³/h67 / 59 / 75 dB(A)768 x 338 mm120 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz
ILHT-630 CC ECOWATT VAV 095133860923ILHT CC ECOWATT VAV630 091,130 rpm7.0 A11,820 m³/h68 / 58 / 72 dB(A)977 x 403 mm177 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz
ILHT-710 CC ECOWATT VAV 095133861223ILHT CC ECOWATT VAV710 091,250 rpm12.4 A24,120 m³/h73 / 66 / 79 dB(A)1104 x 462 mm279 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz
ILHT-500 MV ECOWATT ASR 09 145133032723ILHT MV ECOWATT ASR500 09 141,500 rpm3.5 A9,790 m³/h68 / 58 / 70 dB(A)768 x 338 mm94 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-630 MV ECOWATT ASR 09 145133032823ILHT MV ECOWATT ASR630 09 141,130 rpm7.0 A13,060 m³/h68 / 59 / 69 dB(A)977 x 403 mm132 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-710 MV ECOWATT ASR 09 145133032923ILHT MV ECOWATT ASR710 09 141,250 rpm12.4 A25,150 m³/h73 / 68 / 77 dB(A)1104 x 462 mm158 kgILHB / ILHT ECOWATT ASR3~ 400 V, 50/60 Hz
ILHT-500 MV ECOWATT VAV 095133862423ILHT MV ECOWATT VAV500 091,500 rpm3.5 A9,790 m³/h68 / 58 / 70 dB(A)768 x 338 mm94 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz
ILHT-630 MV ECOWATT VAV 095133862723ILHT MV ECOWATT VAV630 091,130 rpm7.0 A13,060 m³/h68 / 59 / 69 dB(A)977 x 403 mm132 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz
ILHT-710 MV ECOWATT VAV 095133863023ILHT MV ECOWATT VAV710 091,250 rpm12.4 A25,150 m³/h73 / 68 / 77 dB(A)1104 x 462 mm158 kgILHB / ILHT ECOWATT VAV3~ 400 V, 50/60 Hz

¹ Measured at a distance of 1.5 m in free field. Duct connection: dimensions A x B of the matching ILBR counter flange according to the S&P accessory table.

Features
  • Side panels and cover removable for inspection.
  • 100% speed controllable via 0-10 V signal.
  • Matching supply air units according to the wiring diagram: CAIB/T PRO-REG 10 to 50 and CAIT PRO-REG 48, 88 and 120.
  • Scope of delivery according to the manufacturer: two ILBA duct connection spigots (rectangular) and four mounting brackets; the condensate drain spigot is supplied loose and fitted depending on installation.
  • Performance data according to the manufacturer to ISO 5801 and AMCA 210-99; characteristic curves and sound power spectra are given in the S&P data sheet.
  • Accessories listed by S&P include ILBR counter flanges, ILAE flexible connections, ILVH/ILVV 45° outlet spigots with bird guard, ILSH mounting brackets, ILTI weather protection roofs and ILRC transition pieces to round.
  • Terminal box with maintenance switch, integrated speed potentiometer, 0 to 10 V signal input and Modbus RTU interface (RS485).

Note on variants

The table above lists the S&P type and the item number for each option.
