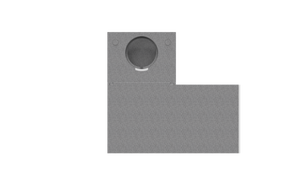

S&P GS Mounting and Sound Insulation Parts for Outdoor Air Inlets: mounting and sound insulation parts for installing the S&P outdoor air inlets (ALD) EASY and SMART with reveal solution: wind pressure protection, sound insulation element, silentAir reveal element and sound insulation mat, mounting block, mounting adhesive, mounting pipe, mounting stone and plaster cover. 9 versions are available under part.

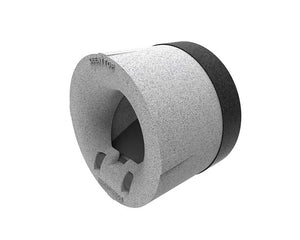

Wind pressure protection GS-ALD: S&P GS-ALD Winddrucksicherung is the wind pressure protection with insect protection for the S&P EASY and SMART outdoor air inlets (ALD). According to S&P it has a non-return flap that closes automatically at high air flows to prevent draughts and cooling of the living spaces at high wind loads.

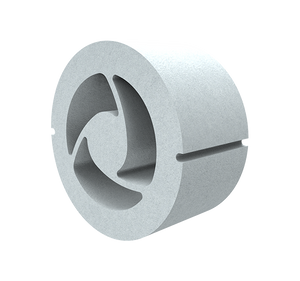

Sound insulation element 3K: S&P GS-Schalldämmelement 3K is the sound attenuation ring with 3-chamber system for the S&P EASY and SMART outdoor air inlets (ALD). According to S&P each chamber can be opened separately, so air flow and sound insulation can be adjusted during installation.

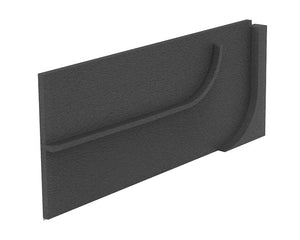

silentAir sound insulation mat for the reveal: S&P GS silentAir Reveal Sound Insulation Mat, for Outdoor Air Inlet. GS-LAIBUNG reveal solution for outside duct

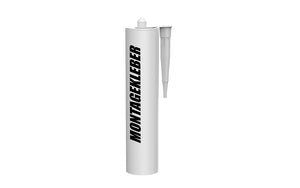

Mounting adhesive: S&P GS-Montagekleber is the construction adhesive for the S&P window reveal solution for outdoor air inlets (ALD). According to the S&P installation instructions, the mounting tube is bonded with a non-expanding construction adhesive; observe the curing time.

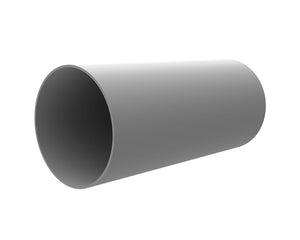

Mounting pipe 500-16, length 500 mm: S&P GS-Montagerohr 500-16 is the 500 mm long mounting tube for the S&P outdoor air inlets (ALD) with window reveal solution. According to the S&P installation instructions it is cut to the measured wall thickness plus 5 mm, bonded in place and closed on the inside with the plaster cover until the finishing set is installed.

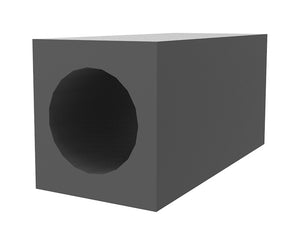

Mounting stone: S&P GS-Montagestein is the wall installation block for the S&P window reveal solution for outdoor air inlets (ALD). According to the S&P installation instructions it is cut to the measured wall thickness and installed flush in the masonry; it must lie against the reveal element and the integrated fall points outwards.

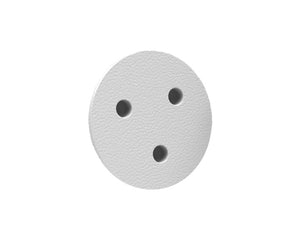

Plaster cover, Ø 160 mm: S&P GS-Putzdeckel is the plaster cover with a diameter of 160 mm for the S&P outdoor air inlets (ALD). According to the S&P installation instructions it closes the mounting tube or the reveal channel during plastering and façade work until the finishing set is installed.

Data per version:

Select the required version under Part.

• Wind pressure protection GS-ALD: Pre-filter unit for insect protection, replaceable by the user according to S&P.
• Wind pressure protection GS-ALD: Included in the EASY or SMART ALD-1SDE to ALD-3SDE finishing sets; offered here as a single part.
• Sound insulation element 3K: According to S&P, the ALD-1SDE, -2SDE and -3SDE finishing sets contain 1, 2 or 3 sound attenuation elements.
• Mounting adhesive: Accessory, not included in the scope of delivery of the window reveal solution.
• Mounting stone: Alternative to core drilling (with a fall of 1 to 3° to the outside).
• Mounting stone: Accessory, not included in the scope of delivery of the window reveal solution.
