S&P ERL Fan Insert for Single-Duct Fans

Name: S&P ERL Fan Insert for Single-Duct Fans
Brand: S&P Deutschland GmbH
SKU: 8020283602
Price: 214.99 EUR
Availability: InStock

214^{99 €} ~~273^{70 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

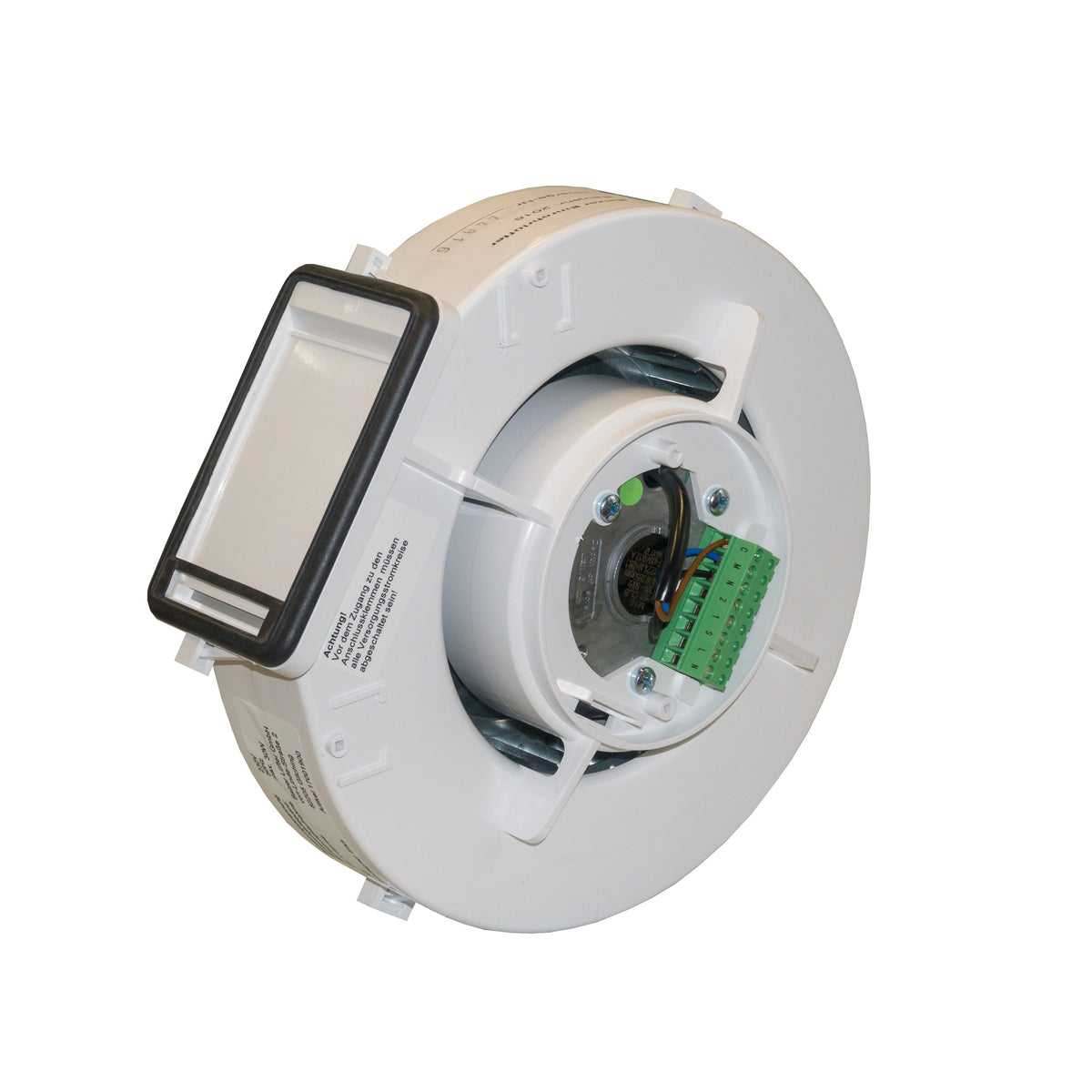

S&P ERL: Fan Insert for Single-Duct Fans. Available are the versions ERL L-G, ERL L-G-EC, ERL L-SPIRALE and ERL L-W.

Technical data

Manufacturer	S&P
Air flow (free blowing)	30 / 60 / 100 m³/h (depending on control module)

S&P type	Item number	Version	Voltage	Protection rating	Operating temperature	Mounting	Minimum wall thickness	Colour	Approval

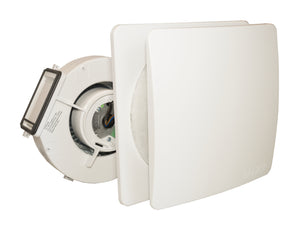

ERL L-G	8020283602	ERL L-G	230 V / 50 Hz	IPX5	0 to 40 °C	wall or ceiling	90 mm	white	Z-51.1-97 DIBt Berlin
ERL L-G-EC	L012110404	ERL L-G-EC	230 V / 50 Hz	IPX5	0 to 40 °C	wall or ceiling	90 mm	white	type L: Z-51.1-97 DIBt Berlin
ERL L-SPIRALE	L012110401	ERL L-SPIRALE	n/a	n/a	n/a	n/a	n/a	n/a	n/a

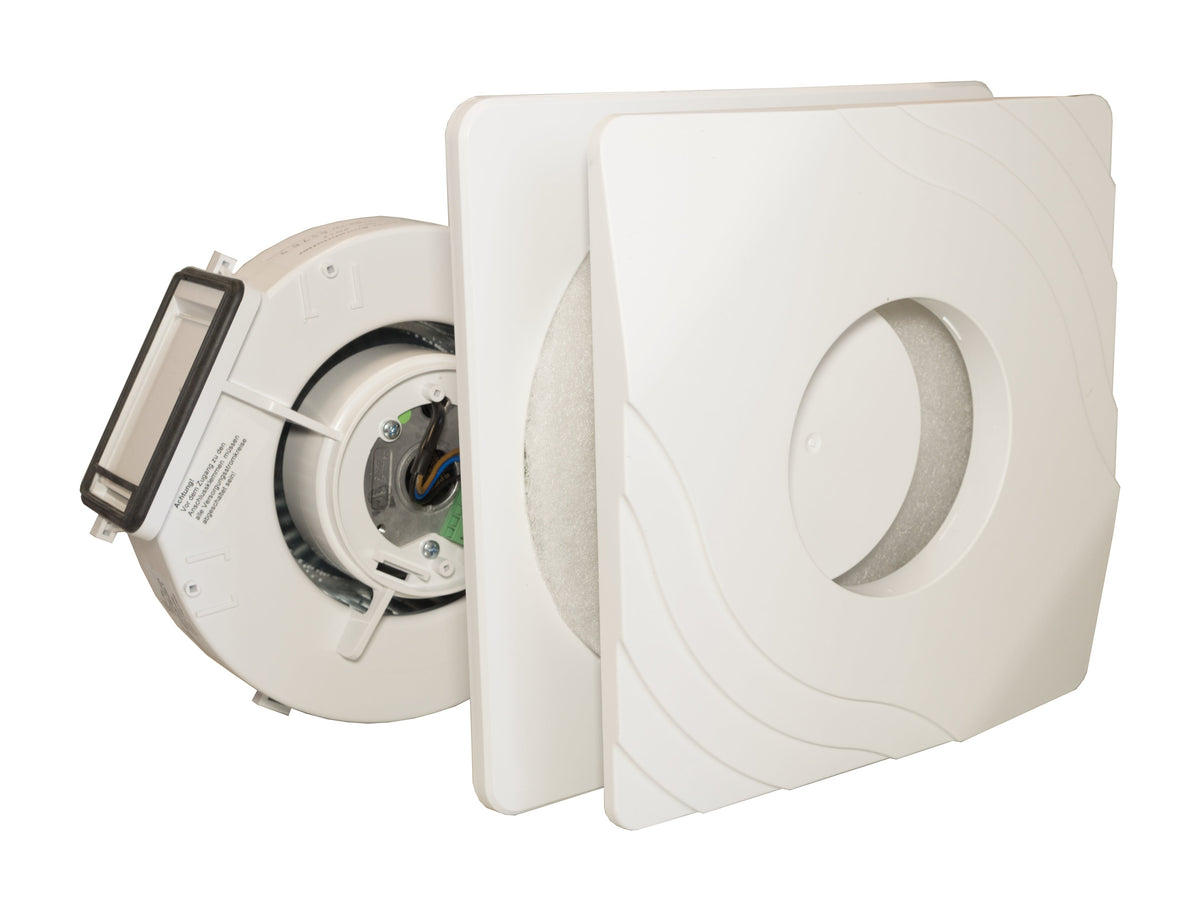

ERL L-W	8020283601	ERL L-W	230 V / 50 Hz	IPX5	0 to 40 °C	wall or ceiling	90 mm	white	Z-51.1-97 DIBt Berlin

Features

Scope of delivery according to S&P: fan scroll, filter carrier, filter and facade.
Suitable for air flows up to 60 m³/h and up to 100 m³/h.
Replaceable filter, tool-free filter change by removing the plug-on facade.
Protected against water jets (IPX5), protective insulation (protection class II), approved for protection zone 1 of wet rooms.
All plastic parts made of impact-resistant ABS.
According to S&P, air flow and leakage rate tested by TÜV Süd.
Tool-free filter change by removing the plug-on facade.

Note on variants

The table above lists the S&P type and the item number for each option.
