S&P Deutschland GmbH | SKU: 5153821100

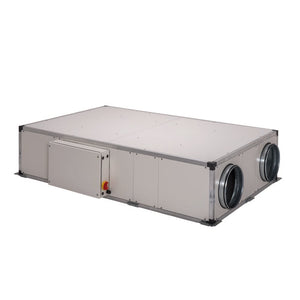

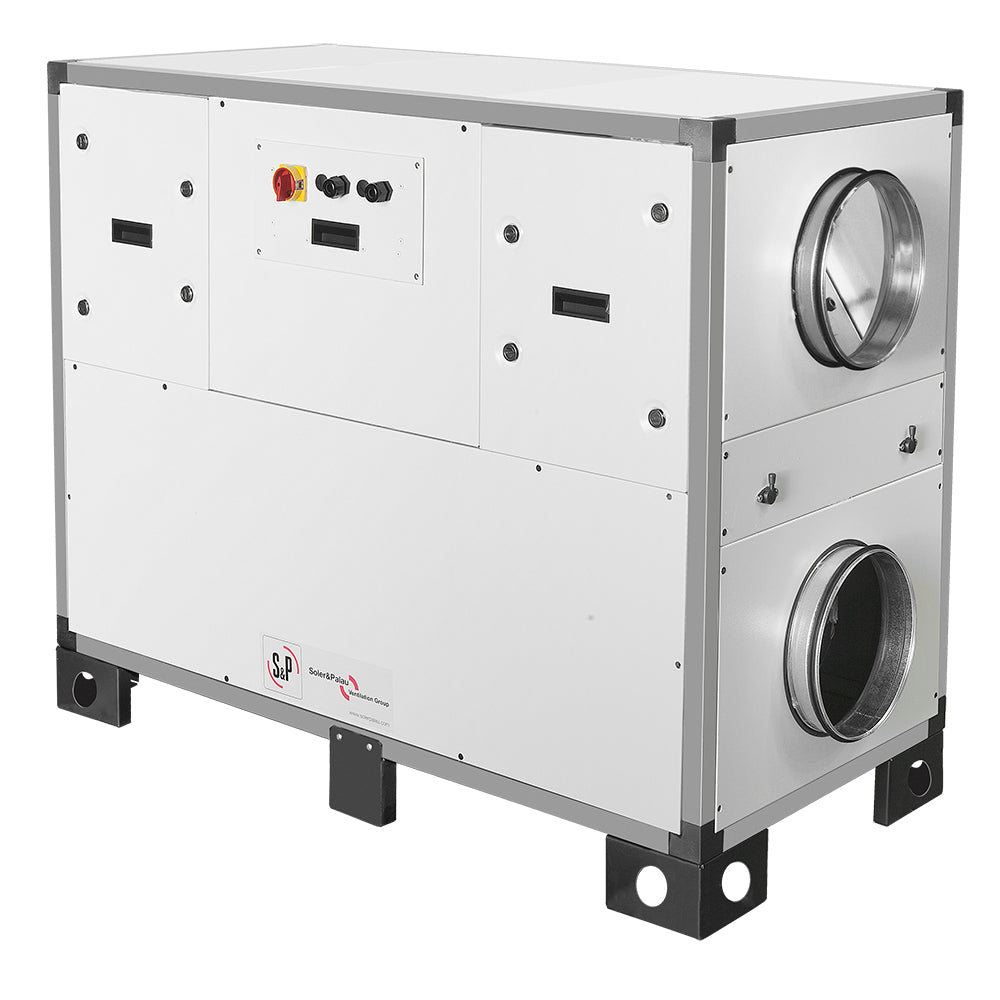

S&P CADB/T-HE PRO-REG Ventilation Unit with Counterflow Heat Exchanger

Name: S&P CADB/T-HE PRO-REG Ventilation Unit with Counterflow Heat Exchanger
Brand: S&P Deutschland GmbH
SKU: 5153821100
Availability: InStock

7.884^{49 €} ~~11.306^{19 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P CADB/T-HE PRO-REG: Ventilation Unit with Counterflow Heat Exchanger. Available are 9 versions as well as 10 sizes as well as the orientations "left, horizontal", "left, vertical", "right, horizontal" and "right, vertical".

Technical data

Manufacturer	S&P
Heat exchanger	counterflow, aluminium, EUROVENT certified according to the manufacturer
Bypass	motorised bypass damper as standard (approx. 75% of nominal airflow)
Fans	plug fan with backward curved centrifugal impeller made of galvanised sheet steel, EC motor, thermal contacts integrated in the electronics
Housing	self-supporting, double-walled, aluminium profiles; side panels plastic coated on the outside, galvanised sheet steel on the inside
Operation	ETD touch display, 10 m cable with RJ10 plug (maximum 50 m)
Building management	Modbus RTU (RS485), BACnet TCP/IP, web server TCP/IP
Series	CADB/T-HE PRO-REG
Supply air filter	F7 (ePM1 ≥ 70%)
Extract air filter	M5 (ePM10 ≥ 50%)
Control	PRO-REG, integrated

S&P type	Item number	Version	Size	Orientation	Airflow¹	Connection size	Heat recovery efficiency²	Total current	Weight	Air connections	Operating side (in supply air direction)	Power supply	Manufacturer
CADB-HE-D 04 LH PRO-REG	5153821100	CADB-HE-D PRO-REG	04	left, horizontal	450 m³/h	200 mm	87%	2.2 A	147 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 04 LV PRO-REG	5153825900	CADB-HE-D PRO-REG	04	left, vertical	450 m³/h	200 mm	87%	2.2 A	147 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 04 RH PRO-REG	5153821900	CADB-HE-D PRO-REG	04	right, horizontal	450 m³/h	200 mm	87%	2.2 A	147 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 04 RV PRO-REG	5153826700	CADB-HE-D PRO-REG	04	right, vertical	450 m³/h	200 mm	87%	2.2 A	147 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 08 LH PRO-REG	5153821200	CADB-HE-D PRO-REG	08	left, horizontal	800 m³/h	250 mm	86.4%	2.9 A	183 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 08 LV PRO-REG	5153826000	CADB-HE-D PRO-REG	08	left, vertical	800 m³/h	250 mm	86.4%	2.9 A	183 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 08 RH PRO-REG	5153822000	CADB-HE-D PRO-REG	08	right, horizontal	800 m³/h	250 mm	86.4%	2.9 A	183 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 08 RV PRO-REG	5153826800	CADB-HE-D PRO-REG	08	right, vertical	800 m³/h	250 mm	86.4%	2.9 A	183 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 12 LH PRO-REG	5153821300	CADB-HE-D PRO-REG	12	left, horizontal	1,200 m³/h	315 mm	85.3%	3.5 A	190 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 12 LV PRO-REG	5153826100	CADB-HE-D PRO-REG	12	left, vertical	1,200 m³/h	315 mm	85.3%	3.5 A	190 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 12 RH PRO-REG	5153822100	CADB-HE-D PRO-REG	12	right, horizontal	1,200 m³/h	315 mm	85.3%	3.5 A	190 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 12 RV PRO-REG	5153826900	CADB-HE-D PRO-REG	12	right, vertical	1,200 m³/h	315 mm	85.3%	3.5 A	190 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 16 LH PRO-REG	5153821400	CADB-HE-D PRO-REG	16	left, horizontal	1,600 m³/h	315 mm	85.5%	4.3 A	235 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 16 LV PRO-REG	5153826200	CADB-HE-D PRO-REG	16	left, vertical	1,600 m³/h	315 mm	85.5%	4.3 A	235 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 16 RH PRO-REG	5153822200	CADB-HE-D PRO-REG	16	right, horizontal	1,600 m³/h	315 mm	85.5%	4.3 A	235 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 16 RV PRO-REG	5153827000	CADB-HE-D PRO-REG	16	right, vertical	1,600 m³/h	315 mm	85.5%	4.3 A	235 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 21 LH PRO-REG	5153821500	CADB-HE-D PRO-REG	21	left, horizontal	2,100 m³/h	400 mm	86.5%	4.7 A	333 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 21 LV PRO-REG	5153826300	CADB-HE-D PRO-REG	21	left, vertical	2,100 m³/h	400 mm	86.5%	4.7 A	333 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 21 RH PRO-REG	5153822300	CADB-HE-D PRO-REG	21	right, horizontal	2,100 m³/h	400 mm	86.5%	4.7 A	333 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 21 RV PRO-REG	5153827100	CADB-HE-D PRO-REG	21	right, vertical	2,100 m³/h	400 mm	86.5%	4.7 A	333 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 27 LH PRO-REG	5153853700	CADB-HE-D PRO-REG	27	left, horizontal	2,700 m³/h	400 mm	83.8%	7.5 A	367 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 27 LV PRO-REG	5153854300	CADB-HE-D PRO-REG	27	left, vertical	2,700 m³/h	400 mm	83.8%	7.5 A	367 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-D 27 RH PRO-REG	5153853800	CADB-HE-D PRO-REG	27	right, horizontal	2,700 m³/h	400 mm	83.8%	7.5 A	367 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 27 RV PRO-REG	5153854400	CADB-HE-D PRO-REG	27	right, vertical	2,700 m³/h	400 mm	83.8%	7.5 A	367 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-D 33 LH PRO-REG N8	5153149200	CADB-HE-D PRO-REG N8	33	left, horizontal	n/a	400 mm	n/a	9.6 A	420 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	n/a
CADB-HE-D 33 LV PRO-REG N8	5153149800	CADB-HE-D PRO-REG N8	33	left, vertical	n/a	400 mm	n/a	9.6 A	420 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	n/a
CADB-HE-D 33 RH PRO-REG N8	5153149300	CADB-HE-D PRO-REG N8	33	right, horizontal	n/a	400 mm	n/a	9.6 A	420 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	n/a
CADB-HE-D 33 RV PRO-REG N8	5153149900	CADB-HE-D PRO-REG N8	33	right, vertical	n/a	400 mm	n/a	9.6 A	420 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	n/a
CADB-HE-DC 04 LH PRO-REG	5153822700	CADB-HE-DC PRO-REG	04	left, horizontal	450 m³/h	200 mm	87%	2.2 A	149 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 04 LV PRO-REG	5153827500	CADB-HE-DC PRO-REG	04	left, vertical	450 m³/h	200 mm	87%	2.2 A	149 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 04 RH PRO-REG	5153823500	CADB-HE-DC PRO-REG	04	right, horizontal	450 m³/h	200 mm	87%	2.2 A	149 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 04 RV PRO-REG	5153828300	CADB-HE-DC PRO-REG	04	right, vertical	450 m³/h	200 mm	87%	2.2 A	149 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 08 LH PRO-REG	5153822800	CADB-HE-DC PRO-REG	08	left, horizontal	800 m³/h	250 mm	86.4%	2.9 A	186 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 08 LV PRO-REG	5153827600	CADB-HE-DC PRO-REG	08	left, vertical	800 m³/h	250 mm	86.4%	2.9 A	186 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 08 RH PRO-REG	5153823600	CADB-HE-DC PRO-REG	08	right, horizontal	800 m³/h	250 mm	86.4%	2.9 A	186 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 08 RV PRO-REG	5153828400	CADB-HE-DC PRO-REG	08	right, vertical	800 m³/h	250 mm	86.4%	2.9 A	186 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 12 LH PRO-REG	5153822900	CADB-HE-DC PRO-REG	12	left, horizontal	1,200 m³/h	315 mm	85.3%	3.5 A	193 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 12 LV PRO-REG	5153827700	CADB-HE-DC PRO-REG	12	left, vertical	1,200 m³/h	315 mm	85.3%	3.5 A	193 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 12 RH PRO-REG	5153823700	CADB-HE-DC PRO-REG	12	right, horizontal	1,200 m³/h	315 mm	85.3%	3.5 A	193 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 12 RV PRO-REG	5153828500	CADB-HE-DC PRO-REG	12	right, vertical	1,200 m³/h	315 mm	85.3%	3.5 A	193 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 16 LH PRO-REG	5153823000	CADB-HE-DC PRO-REG	16	left, horizontal	1,600 m³/h	315 mm	85.5%	4.3 A	239 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 16 LV PRO-REG	5153827800	CADB-HE-DC PRO-REG	16	left, vertical	1,600 m³/h	315 mm	85.5%	4.3 A	239 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 16 RH PRO-REG	5153823800	CADB-HE-DC PRO-REG	16	right, horizontal	1,600 m³/h	315 mm	85.5%	4.3 A	239 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 16 RV PRO-REG	5153828600	CADB-HE-DC PRO-REG	16	right, vertical	1,600 m³/h	315 mm	85.5%	4.3 A	239 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 21 LH PRO-REG	5153823100	CADB-HE-DC PRO-REG	21	left, horizontal	2,100 m³/h	400 mm	86.5%	4.7 A	338 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 21 LV PRO-REG	5153827900	CADB-HE-DC PRO-REG	21	left, vertical	2,100 m³/h	400 mm	86.5%	4.7 A	338 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 21 RH PRO-REG	5153823900	CADB-HE-DC PRO-REG	21	right, horizontal	2,100 m³/h	400 mm	86.5%	4.7 A	338 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 21 RV PRO-REG	5153828700	CADB-HE-DC PRO-REG	21	right, vertical	2,100 m³/h	400 mm	86.5%	4.7 A	338 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 27 LH PRO-REG	5153853900	CADB-HE-DC PRO-REG	27	left, horizontal	2,700 m³/h	400 mm	83.8%	7.5 A	375 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 27 LV PRO-REG	5153854500	CADB-HE-DC PRO-REG	27	left, vertical	2,700 m³/h	400 mm	83.8%	7.5 A	375 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DC 27 RH PRO-REG	5153854000	CADB-HE-DC PRO-REG	27	right, horizontal	2,700 m³/h	400 mm	83.8%	7.5 A	375 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 27 RV PRO-REG	5153854600	CADB-HE-DC PRO-REG	27	right, vertical	2,700 m³/h	400 mm	83.8%	7.5 A	375 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DC 33 LH PRO-REG N8	5153149400	CADB-HE-DC PRO-REG N8	33	left, horizontal	n/a	400 mm	n/a	9.6 A	427 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	n/a
CADB-HE-DC 33 LV PRO-REG N8	5153150000	CADB-HE-DC PRO-REG N8	33	left, vertical	n/a	400 mm	n/a	9.6 A	427 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	n/a
CADB-HE-DC 33 RH PRO-REG N8	5153149500	CADB-HE-DC PRO-REG N8	33	right, horizontal	n/a	400 mm	n/a	9.6 A	427 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	n/a
CADB-HE-DC 33 RV PRO-REG N8	5153150100	CADB-HE-DC PRO-REG N8	33	right, vertical	n/a	400 mm	n/a	9.6 A	427 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	n/a
CADB-HE-DI 04 LH PRO-REG	5153824300	CADB-HE-DI PRO-REG	04	left, horizontal	450 m³/h	200 mm	87.0%	6.7 A	148 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 04 LV PRO-REG	5153829100	CADB-HE-DI PRO-REG	04	left, vertical	450 m³/h	200 mm	87.0%	6.7 A	148 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 04 RH PRO-REG	5153825100	CADB-HE-DI PRO-REG	04	right, horizontal	450 m³/h	200 mm	87.0%	6.7 A	148 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 04 RV PRO-REG	5153829900	CADB-HE-DI PRO-REG	04	right, vertical	450 m³/h	200 mm	87.0%	6.7 A	148 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 08 LH PRO-REG	5153824400	CADB-HE-DI PRO-REG	08	left, horizontal	800 m³/h	250 mm	86.4%	12.0 A	185 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 08 LV PRO-REG	5153829200	CADB-HE-DI PRO-REG	08	left, vertical	800 m³/h	250 mm	86.4%	12.0 A	185 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 08 RH PRO-REG	5153825200	CADB-HE-DI PRO-REG	08	right, horizontal	800 m³/h	250 mm	86.4%	12.0 A	185 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 08 RV PRO-REG	5153830000	CADB-HE-DI PRO-REG	08	right, vertical	800 m³/h	250 mm	86.4%	12.0 A	185 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 12 LH PRO-REG	5153824500	CADB-HE-DI PRO-REG	12	left, horizontal	1,200 m³/h	315 mm	85.3%	14.9 A	192 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 12 LV PRO-REG	5153829300	CADB-HE-DI PRO-REG	12	left, vertical	1,200 m³/h	315 mm	85.3%	14.9 A	192 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 12 RH PRO-REG	5153825300	CADB-HE-DI PRO-REG	12	right, horizontal	1,200 m³/h	315 mm	85.3%	14.9 A	192 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 12 RV PRO-REG	5153830100	CADB-HE-DI PRO-REG	12	right, vertical	1,200 m³/h	315 mm	85.3%	14.9 A	192 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 16 LH PRO-REG	5153824600	CADB-HE-DI PRO-REG	16	left, horizontal	1,600 m³/h	315 mm	85.5%	20.2 A	237 kg	side, next to each other (horizontal)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 16 LV PRO-REG	5153829400	CADB-HE-DI PRO-REG	16	left, vertical	1,600 m³/h	315 mm	85.5%	20.2 A	237 kg	side, one above the other (vertical)	left	1/230 V, 50 Hz	S&P
CADB-HE-DI 16 RH PRO-REG	5153825400	CADB-HE-DI PRO-REG	16	right, horizontal	1,600 m³/h	315 mm	85.5%	20.2 A	237 kg	side, next to each other (horizontal)	right	1/230 V, 50 Hz	S&P
CADB-HE-DI 16 RV PRO-REG	5153830200	CADB-HE-DI PRO-REG	16	right, vertical	1,600 m³/h	315 mm	85.5%	20.2 A	237 kg	side, one above the other (vertical)	right	1/230 V, 50 Hz	S&P
CADT-HE-D 33 LH PRO-REG	5153821600	CADT-HE-D PRO-REG	33	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 33 LV PRO-REG	5153826400	CADT-HE-D PRO-REG	33	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 33 RH PRO-REG	5153822400	CADT-HE-D PRO-REG	33	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 33 RV PRO-REG	5153827200	CADT-HE-D PRO-REG	33	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 45 LH PRO-REG	5153838100	CADT-HE-D PRO-REG	45	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 45 LV PRO-REG	5153839300	CADT-HE-D PRO-REG	45	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 45 RH PRO-REG	5153838300	CADT-HE-D PRO-REG	45	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 45 RV PRO-REG	5153839500	CADT-HE-D PRO-REG	45	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 60 LH PRO-REG	5153838200	CADT-HE-D PRO-REG	60	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 60 LV PRO-REG	5153839400	CADT-HE-D PRO-REG	60	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 60 RH PRO-REG	5153838400	CADT-HE-D PRO-REG	60	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-D 60 RV PRO-REG	5153839600	CADT-HE-D PRO-REG	60	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 100 LV PRO-REG	5153855500	CADT-HE-D PRO-REG	100	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-D 100 RV PRO-REG	5153855600	CADT-HE-D PRO-REG	100	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 33 LH PRO-REG	5153823200	CADT-HE-DC PRO-REG	33	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 33 LV PRO-REG	5153828000	CADT-HE-DC PRO-REG	33	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 33 RH PRO-REG	5153824000	CADT-HE-DC PRO-REG	33	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 33 RV PRO-REG	5153828800	CADT-HE-DC PRO-REG	33	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 45 LH PRO-REG	5153838500	CADT-HE-DC PRO-REG	45	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 45 LV PRO-REG	5153839700	CADT-HE-DC PRO-REG	45	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 45 RH PRO-REG	5153838700	CADT-HE-DC PRO-REG	45	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 45 RV PRO-REG	5153839900	CADT-HE-DC PRO-REG	45	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 60 LH PRO-REG	5153838600	CADT-HE-DC PRO-REG	60	left, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 60 LV PRO-REG	5153839800	CADT-HE-DC PRO-REG	60	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 60 RH PRO-REG	5153838800	CADT-HE-DC PRO-REG	60	right, horizontal	n/a	n/a	n/a	n/a	n/a	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N (sizes 45 and 60 according to the data sheet)	S&P
CADT-HE-DC 60 RV PRO-REG	5153840000	CADT-HE-DC PRO-REG	60	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 100 LV PRO-REG	5153855700	CADT-HE-DC PRO-REG	100	left, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	left	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DC 100 RV PRO-REG	5153855800	CADT-HE-DC PRO-REG	100	right, vertical	n/a	n/a	n/a	n/a	n/a	side, one above the other (vertical)	right	3/400 V, 50 Hz + N (sizes 45, 60 and 100 according to the data sheet)	S&P
CADT-HE-DI 21 LH PRO-REG	5153824700	CADT-HE-DI PRO-REG	21	left, horizontal	2,100 m³/h	400 mm	86.5%	13.8 A	336 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 21 LV PRO-REG	5153829500	CADT-HE-DI PRO-REG	21	left, vertical	2,100 m³/h	400 mm	86.5%	13.8 A	336 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 21 RH PRO-REG	5153825500	CADT-HE-DI PRO-REG	21	right, horizontal	2,100 m³/h	400 mm	86.5%	13.8 A	336 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 21 RV PRO-REG	5153830300	CADT-HE-DI PRO-REG	21	right, vertical	2,100 m³/h	400 mm	86.5%	13.8 A	336 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 27 LH PRO-REG	5153854100	CADT-HE-DI PRO-REG	27	left, horizontal	2,700 m³/h	400 mm	83.8%	16.6 A	373 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 27 LV PRO-REG	5153854700	CADT-HE-DI PRO-REG	27	left, vertical	2,700 m³/h	400 mm	83.8%	16.6 A	373 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 27 RH PRO-REG	5153854200	CADT-HE-DI PRO-REG	27	right, horizontal	2,700 m³/h	400 mm	83.8%	16.6 A	373 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 27 RV PRO-REG	5153854800	CADT-HE-DI PRO-REG	27	right, vertical	2,700 m³/h	400 mm	83.8%	16.6 A	373 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 33 LH PRO-REG	5153824800	CADT-HE-DI PRO-REG	33	left, horizontal	3,300 m³/h	400 mm	88.4%	21.0 A	424 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 33 LV PRO-REG	5153829600	CADT-HE-DI PRO-REG	33	left, vertical	3,300 m³/h	400 mm	88.4%	21.0 A	424 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 33 RH PRO-REG	5153825600	CADT-HE-DI PRO-REG	33	right, horizontal	3,300 m³/h	400 mm	88.4%	21.0 A	424 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 33 RV PRO-REG	5153830400	CADT-HE-DI PRO-REG	33	right, vertical	3,300 m³/h	400 mm	88.4%	21.0 A	424 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 45 LH PRO-REG	5153838900	CADT-HE-DI PRO-REG	45	left, horizontal	4,500 m³/h	400 x 600 mm	89.0%	20.0 A	602 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 45 LV PRO-REG	5153840100	CADT-HE-DI PRO-REG	45	left, vertical	4,500 m³/h	400 x 600 mm	89.0%	20.0 A	602 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 45 RH PRO-REG	5153839100	CADT-HE-DI PRO-REG	45	right, horizontal	4,500 m³/h	400 x 600 mm	89.0%	20.0 A	602 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 45 RV PRO-REG	5153840300	CADT-HE-DI PRO-REG	45	right, vertical	4,500 m³/h	400 x 600 mm	89.0%	20.0 A	602 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 60 LH PRO-REG	5153839000	CADT-HE-DI PRO-REG	60	left, horizontal	6,100 m³/h	500 x 700 mm	88.9%	24.5 A	737 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 60 LV PRO-REG	5153840200	CADT-HE-DI PRO-REG	60	left, vertical	6,100 m³/h	500 x 700 mm	88.9%	24.5 A	737 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 60 RH PRO-REG	5153839200	CADT-HE-DI PRO-REG	60	right, horizontal	6,100 m³/h	500 x 700 mm	88.9%	24.5 A	737 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 60 RV PRO-REG	5153840400	CADT-HE-DI PRO-REG	60	right, vertical	6,100 m³/h	500 x 700 mm	88.9%	24.5 A	737 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 100 LV PRO-REG	5153855900	CADT-HE-DI PRO-REG	100	left, vertical	10,000 m³/h	1100 x 610 mm	87.9%	48.3 A	874 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 100 RV PRO-REG	5153856000	CADT-HE-DI PRO-REG	100	right, vertical	10,000 m³/h	1100 x 610 mm	87.9%	48.3 A	874 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	S&P
CADT-HE-DI 33 LH PRO-REG N8	5153149600	CADT-HE-DI PRO-REG N8	33	left, horizontal	n/a	400 mm	n/a	21.0 A	424 kg	side, next to each other (horizontal)	left	3/400 V, 50 Hz + N	n/a
CADT-HE-DI 33 LV PRO-REG N8	5153150200	CADT-HE-DI PRO-REG N8	33	left, vertical	n/a	400 mm	n/a	21.0 A	424 kg	side, one above the other (vertical)	left	3/400 V, 50 Hz + N	n/a
CADT-HE-DI 33 RH PRO-REG N8	5153149700	CADT-HE-DI PRO-REG N8	33	right, horizontal	n/a	400 mm	n/a	21.0 A	424 kg	side, next to each other (horizontal)	right	3/400 V, 50 Hz + N	n/a
CADT-HE-DI 33 RV PRO-REG N8	5153150300	CADT-HE-DI PRO-REG N8	33	right, vertical	n/a	400 mm	n/a	21.0 A	424 kg	side, one above the other (vertical)	right	3/400 V, 50 Hz + N	n/a

¹ Airflow according to the data sheet at approx. 150 Pa. ² At -5 °C/80% relative humidity outside and 20 °C/50% relative humidity inside.

¹ Airflow at approx. 150 Pa (sizes 21 to 33 and 60), at 450 Pa (size 45) or 300 Pa (size 100). ² At -5 °C/80% relative humidity outside and 20 °C/50% relative humidity inside.

¹ Airflow at approx. 150 Pa (sizes 21 to 33 and 60), at 450 Pa (size 45). ² At -5 °C/80% relative humidity outside and 20 °C/50% relative humidity inside.

Features

Temperature sensors for outdoor, exhaust, supply and extract air pre-installed; supply air temperature control according to set point.
Automatic bypass function for free cooling and heating as well as icing protection of the heat exchanger, free night cooling, manual control possible.
One mains connection point with maintenance switch for the entire unit.
Among the accessories, S&P lists sensors for air quality (carbon dioxide) or humidity for VAV operation, a differential pressure transmitter for COP operation, the BCCA 2V two-stage switch and shut-off dampers with actuator.

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)

Datasheet CADB/CADT-HE PRO-REG (PDF)
