S&P Deutschland GmbH | SKU: 5407026900

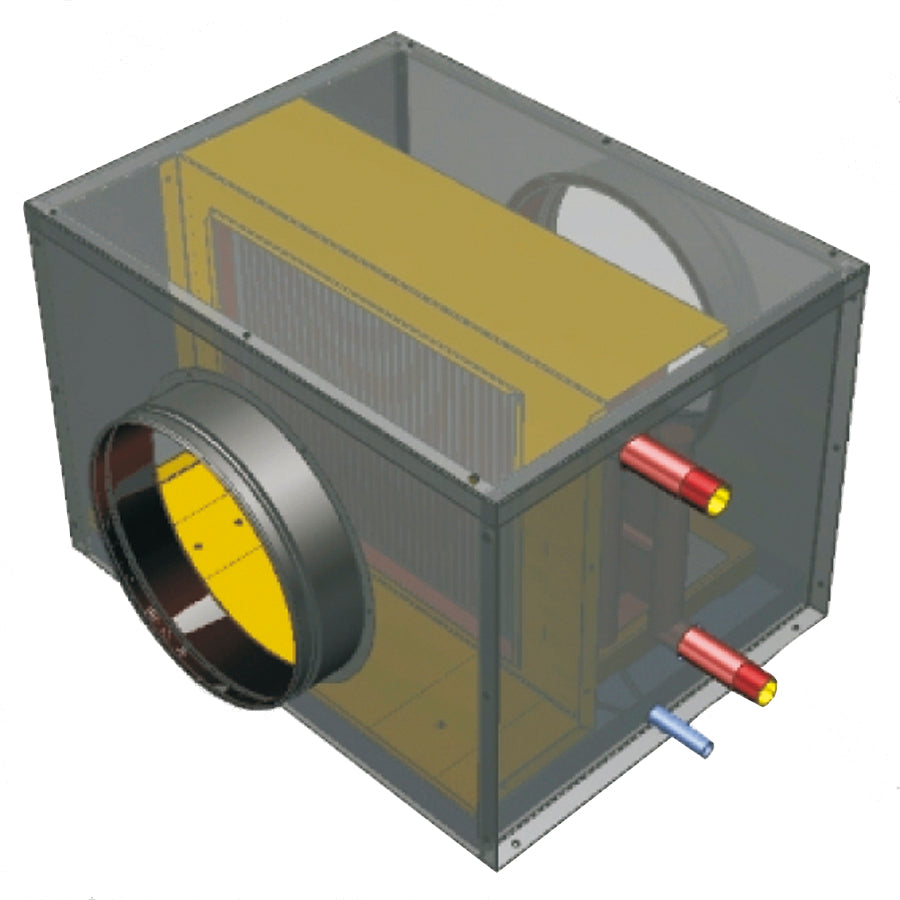

S&P BA-AF Chilled Water Cooling Coil

Name: S&P BA-AF Chilled Water Cooling Coil
Brand: S&P Deutschland GmbH
SKU: 5407026900
Price: 796.49 EUR
Availability: InStock

796^{49 €} ~~1.109^{08 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Size

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P BA-AF: Chilled Water Cooling Coil. Available are the sizes 200, 250, 315, 355/18, 355/23, 400, 450, 500 and 630 as well as the versions left and right.

Technical data

Manufacturer	S&P
Casing	galvanised sheet steel, insulation lining 10 mm
Heat exchanger	aluminium fins pressed onto copper tubes
Reference conditions	air inlet 27 °C / 50 % RH, water flow/return 7 °C / 12 °C
Series	BA-AF
Condensate tray	with 16 mm connection
Mounting position	horizontal only

S&P type	Item number	Size	Version	Connection	Max. airflow [m³/h]	Air pressure drop [Pa]	Cooling capacity [kW]	Air outlet [°C/% RH]	Water flow [l/h]	Water pressure drop [kPa]	Weight [kg]
BA-AF 200 L	5407026900	200	left	DN 200	450	90	2.3	16/83	402	23.3	13
BA-AF 200 R	5407027000	200	right	DN 200	450	90	2.3	16/83	402	23.3	13
BA-AF 250 L	5407027100	250	left	DN 250	900	100	4.5	16/82	765	14.12	17
BA-AF 250 R	5407027200	250	right	DN 250	900	100	4.5	16/82	765	14.12	17
BA-AF 315 L	5407027300	315	left	DN 315	1,200	100	5.6	17/80	960	9.51	22
BA-AF 315 R	5407027400	315	right	DN 315	1,200	100	5.6	17/80	960	9.51	22
BA-AF 355/18 L	5407027500	355/18	left	DN 355	1,900	100	9.5	16/82	1,630	14.49	30
BA-AF 355/18 R	5407027600	355/18	right	DN 355	1,900	100	9.5	16/82	1,630	14.49	30
BA-AF 355/23 L	5407027700	355/23	left	DN 355	2,400	100	12.2	16/82	2,085	18.8	38
BA-AF 355/23 R	5407027800	355/23	right	DN 355	2,400	100	12.2	16/82	2,085	18.8	38
BA-AF 400 L	5407027900	400	left	DN 400	3,000	100	15	16/82	2,570	14.27	45
BA-AF 400 R	5407028000	400	right	DN 400	3,000	100	15	16/82	2,570	14.27	45
BA-AF 450 L	5407028100	450	left	DN 450	4,400	100	23.2	16/83	3,980	27.88	74
BA-AF 450 R	5407028200	450	right	DN 450	4,400	100	23.2	16/83	3,980	27.88	74
BA-AF 500 L	5407028300	500	left	DN 500	5,500	100	29	16/83	4,930	24.46	86
BA-AF 500 R	5407028400	500	right	DN 500	5,500	100	29	16/83	4,930	24.46	86
BA-AF 630 L	5407028700	630	left	DN 630	8,000	100	40	16/82	6,925	15.29	106
BA-AF 630 R	5407028800	630	right	DN 630	8,000	100	40	16/82	6,925	15.29	106

Features

According to S&P, the airflow stated for each size must not be exceeded.
According to the manufacturer, the coil may only be installed horizontally.
Dimensions and pressure drop curves are given in the S&P data sheet.

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)

Datasheet BA-AF L (PDF)
