InoxAir GmbH | SKU: EW08523-200-1

InoxAir Cleaning Element for Stainless Steel Pipe Systems

Name: InoxAir Cleaning Element for Stainless Steel Pipe Systems
Brand: InoxAir GmbH
SKU: EW08523-200-1
Availability: InStock

125^{49 €} ~~219^{00 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Cleaning Element for Stainless Steel Pipe Systems: cleaning element for the InoxAir stainless steel pipe systems, double-walled (DW) or single-walled (EW), as pressure-tight element with cover up to 200 °C or with metal seal up to 600 °C (type 523) or with rectangular door. Options under version: up to 200 °C (type 523-200), metal seal up to 600 °C (type 523-600) and with rectangular door (type 052/522).

The versions in detail

pressure-tight with cover (type 523): InoxAir cleaning element is a pressure-tight cleaning element with cover for the InoxAir stainless steel pipe systems. Type 523-200 is available for the double-walled (DW) and the single-walled pipe system (EW); in the double-walled version the cover has a silicone seal up to 200 °C according to the catalogue. Type 523-600 for the double-walled DW pipe system has a metal seal up to 600 °C according to the catalogue.

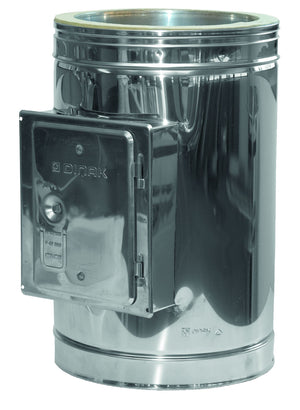

with rectangular door: InoxAir Cleaning Element is an inspection element with square door for InoxAir's stainless steel pipe systems, either for the double-walled (DW, type 052) or the single-walled pipe system (EW, type 522).

Technical data

Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source	InoxAir catalogue Stainless steel pipes, pp. 187, 190, 199 and 202; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 187 and 190; InoxAir catalogue Stainless steel pipes, pp. 187, 190, 199 and 203

Data per version:

Feature	pressure-tight with cover (type 523)	with rectangular door
Design	not specified	inspection element with square door
Height according to the catalogue	not specified	440 mm
Pipe systems	not specified	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline

Note on variants

Select version and size. Not every combination is available.

Features

Dimensions per diameter see catalogue page.
Double-walled fittings on this catalogue page include a locking band according to the catalogue.
According to the catalogue, the double-walled pipe system allows for the linear expansion of the inner pipe and has continuous thermal insulation without cold bridges; connection via push-fit sockets.
According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.

Data sheets and manuals (PDF)

InoxAir Catalogue Stainless Steel Pipes (PDF)
