Nilan | SKU: 620084

Nilan Accessories for HMI Panel

Name: Nilan Accessories for HMI Panel
Brand: Nilan
SKU: 620084
Price: 77.49 EUR
Availability: InStock

77^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Accessory part

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Nilan Accessories for HMI Panel combines the following versions in one product: cover for external HMI panel, extension cable for HMI panel, cover plate for panel removal. Select the required version under Accessory part and then the matching variant under Version. The details for each version are given below.

The versions in detail

cover for external HMI panel: Nilan Cover for External HMI Panel. Manufacturer: Nilan (Nilan A/S). Replacement part for Nilan systems with HMI touch panel. The compatible units are not listed in the Nilan documents available to us; please clarify the fit with us before ordering.

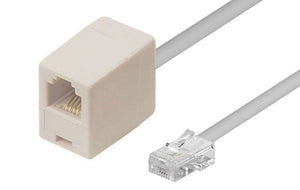

extension cable for HMI panel: Nilan Verlängerungskabel für HMI Panel (extension cable) is a 15 m cable with plugs for the HMI control panel of Nilan ventilation units. The control panel is connected to a short cable at the factory so that it can be mounted in the immediate vicinity of the unit. If the unit is located where the control panel is difficult to see, for example in a cabinet or in an unused attic, the extension cable allows the panel to be mounted elsewhere.

cover plate for panel removal: Nilan Abdeckblech für Panelausbau (cover plate) is a cover plate for the front panel of a Nilan Compact P2. If the HMI control panel is placed elsewhere, according to the Nilan installation instructions, this plate can be used to cover the resulting hole in the front panel.

Technical data

Data per version:

Feature	cover for external HMI panel	extension cable for HMI panel	cover plate for panel removal
Length	not specified	15 m	not specified
Design	not specified	with plugs	not specified
Suitable for	not specified	not specified	Compact P2 (according to the Nilan installation instructions for the Compact P2)

Note on variants

Select accessory part and version. Not every combination is available.

Accessory part	Version	Item number
Abdeckung für externes HMI Panel	Standard	620084
Verlängerungskabel für HMI Panel	Standard	9104
Abdeckblech für Panelausbau	Standard	9111

Features

extension cable for HMI panel: According to Nilan, the control panel must be placed so that the user can see alarm messages such as the filter change.
extension cable for HMI panel: In the data sheets of numerous Comfort units (for example Comfort 300LR, 350 Top, 450, 600 and CT500), Nilan lists the HMI panel extension cable as an accessory.
cover plate for panel removal: For the remote control panel, Nilan offers a 15 m extension cable with plugs.

Data sheets and manuals (PDF)

On request, we will gladly send you the data sheet, manual and further technical documents for this item. Contact us.
