InoxAir GmbH | SKU: VRBEC-EVO-UE5031

InoxAir Accessories for Kitchen Exhaust Boxes VRB / VRBEC / VRBEC-EVO

Name: InoxAir Accessories for Kitchen Exhaust Boxes VRB / VRBEC / VRBEC-EVO
Brand: InoxAir GmbH
SKU: VRBEC-EVO-UE5031
Price: 108.99 EUR
Availability: InStock

108^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir accessories for kitchen exhaust boxes combines the add-on accessories for InoxAir kitchen exhaust boxes (airboxes) of the VRB, VRBEC and VRBEC-EVO series: outlet spigots and transition spigots for the duct connection, side panel with outlet spigot, outlet/weather protection hood, motor protection cover, base frame and rain roof.

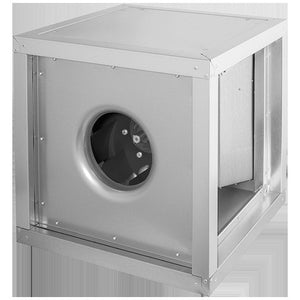

First select the accessory part, then the series of your airbox and the size or duct connection. The product image shows the kitchen exhaust box, not the individual accessory part.

Technical data

Source	InoxAir catalogue Fans, p. 114; InoxAir catalogue Fans, p. 99

Data per version:

Feature	Conical outlet spigot	Side panel with outlet spigot	Outlet/weather protection hood	Transition spigot	Motor protection cover	Base frame	Rain roof
Line	PROFIline	PROFIline	not specified	not specified	PROFIline	PROFIline	PROFIline
Design	outlet connection, tapered	side panel with outlet connection	outlet/weather protection hood	housing cover with seal and connecting piece for ducts	not specified	not specified	not specified
Flange	20 mm, rectangular	20 mm, rectangular	not specified	not specified	not specified	not specified	not specified
Transition	rectangular to round for air ducts	rectangular to round for air ducts	not specified	not specified	not specified	not specified	not specified
Seal	rubber lip seal	rubber lip seal	not specified	not specified	not specified	not specified	not specified
Duct connection	Ø 315 to 450 mm	Ø 315 to 450 mm	not specified	Ø 315 to 710 mm depending on the variant	not specified	not specified	not specified
Material	not specified	not specified	galvanised steel sheet	not specified	not specified	not specified	not specified
Outlet connection	not specified	not specified	rectangular	not specified	not specified	not specified	not specified
Protective grille	not specified	not specified	with bird screen	not specified	not specified	not specified	not specified
Height	not specified	not specified	not specified	77 mm	not specified	not specified	not specified
Material	not specified	not specified	not specified	not specified	not specified	galvanised sheet steel	galvanized steel sheet

Note on variants

Select accessory part, series and version (airbox size and, where applicable, duct connection Ø). Not every combination is available.

Accessory part	Series	Version	Item number	For model according to the catalogue	Dimensions W x D x H
Conical outlet spigot	VRBEC-EVO	Airbox 500 mm, Ø 315 mm	VRBEC-EVO-UE5031	airbox 500 mm
Conical outlet spigot	VRBEC-EVO	Airbox 500 mm, Ø 355 mm	VRBEC-EVO-UE5035	airbox 500 mm
Conical outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 355 mm	VRBEC-EVO-UE7035	airbox 700 mm
Conical outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 400 mm	VRBEC-EVO-UE7040	airbox 700 mm
Conical outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 450 mm	VRBEC-EVO-UE7045	airbox 700 mm
Side panel with outlet spigot	VRBEC-EVO	Airbox 500 mm, Ø 315 mm	VRBEC-EVO-ST5031	airbox 500 mm
Side panel with outlet spigot	VRBEC-EVO	Airbox 500 mm, Ø 355 mm	VRBEC-EVO-ST5035	airbox 500 mm
Side panel with outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 355 mm	VRBEC-EVO-ST7035	airbox 700 mm
Side panel with outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 400 mm	VRBEC-EVO-ST7040	airbox 700 mm
Side panel with outlet spigot	VRBEC-EVO	Airbox 700 mm, Ø 450 mm	VRBEC-EVO-ST7045	airbox 700 mm
Outlet/weather protection hood	VRBEC-EVO	Airbox 700 mm	VRBEC-EVO-WSH70
Transition spigot	VRB / VRBEC	Airbox 1200 mm, Ø 710 mm	VRB-ST12071	VRB 19000/22000	1114 x 1114 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 500 mm, Ø 315 mm	VRB-ST5031	VRBEC 2500/3500/4600	414 x 414 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 500 mm, Ø 355 mm	VRB-ST5035	VRBEC 2500/3500/4600	414 x 414 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 700 mm, Ø 400 mm	VRB-ST7040	VRBEC 4500/6500/8100	614 x 614 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 700 mm, Ø 450 mm	VRB-ST7045	VRBEC 4500/6500/8100	614 x 614 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 700 mm, Ø 500 mm	VRB-ST7050	VRBEC 4500/6500/8100	614 x 614 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 900 mm, Ø 500 mm	VRB-ST9050	VRB 13000/17000, VRBEC 14000/19000	814 x 814 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 900 mm, Ø 560 mm	VRB-ST9056	VRB 13000/17000, VRBEC 14000/19000	814 x 814 x 77 mm
Transition spigot	VRB / VRBEC	Airbox 900 mm, Ø 630 mm	VRB-ST9063	VRB 13000/17000, VRBEC 14000/19000	814 x 814 x 77 mm
Motor protection cover	VRB / VRBEC	Airbox 500 mm	VRB-MSB50	VRBEC 2500/3500/4600	416 x 386 x 38 mm
Motor protection cover	VRB / VRBEC	Airbox 700 mm	VRB-MSB70	VRBEC 4500/6500/8100	616 x 586 x 38 mm
Motor protection cover	VRB / VRBEC	Airbox 900 mm	VRB-MSB90	VRB 13000/17000, VRBEC 14000/19000	816 x 786 x 38 mm
Motor protection cover	VRBEC-EVO	Airbox 700 mm	VRBEC-EVO-MSB70
Base frame	VRB / VRBEC	Airbox 500 mm	VRB-GR50	VRBEC 2500/3500/4600	500 x 500 x 100 mm
Base frame	VRB / VRBEC	Airbox 700 mm	VRB-GR70	VRBEC 4500/6500/8100	700 x 700 x 100 mm
Base frame	VRB / VRBEC	Airbox 900 mm	VRB-GR90	VRB 13000/17000, VRBEC 14000/19000	900 x 900 x 100 mm
Base frame	VRBEC-EVO	Airbox 700 mm	VRBEC-EVO-GR70
Rain roof	VRB / VRBEC	Airbox 500 mm	VRB-RD50	VRBEC 2500/3500/4600	500 x 664 x 52 mm
Rain roof	VRB / VRBEC	Airbox 700 mm	VRB-RD70	VRBEC 4500/6500/8100	700 x 865 x 60 mm
Rain roof	VRB / VRBEC	Airbox 900 mm	VRB-RD90	VRB 13000/17000, VRBEC 14000/19000	900 x 1065 x 72 mm
Rain roof	VRBEC-EVO	Airbox 700 mm	VRBEC-EVO-RD70

Features

Conical outlet spigot: Accessory for VRBEC-EVO kitchen extractor boxes according to the InoxAir Fans catalogue.
Conical outlet spigot: Alternatively, the catalogue lists a side panel with outlet connection (VRBEC-EVO-ST).
Side panel with outlet spigot: Accessory for VRBEC-EVO kitchen extractor boxes according to the InoxAir Fans catalogue.
Side panel with outlet spigot: Alternatively, the catalogue lists a tapered outlet connection (VRBEC-EVO-UE).
Outlet/weather protection hood: With bird screen and rectangular outlet connection.
Outlet/weather protection hood: For the 500 mm VRBEC-EVO airboxes, the catalogue lists the hood VRBEC-EVO-WSH 50.
Transition spigot: Housing cover with seal.
Transition spigot: Matching the housing size of the airbox (500, 700, 900 or 1200 mm).
Motor protection cover: Accessory for kitchen extractor boxes according to the InoxAir Fans catalogue.
Motor protection cover: The catalogue lists the version for the 1200 mm airbox (VRB 19000/22000) as VRB-MSB 120; it is not included in this product.
Motor protection cover: Accessory for VRBEC-EVO kitchen extractor boxes according to the InoxAir Fans catalogue.
Base frame: Base frame VRB-GR according to the InoxAir catalogue Fans, p. 99.
Base frame: Frame height 100 mm; footprint according to the airbox size.
Base frame: Base frame VRBEC-EVO-GR 70 according to the InoxAir catalogue Fans, p. 114.
Rain roof: Including roof girder.
Rain roof: The catalogue lists the version for the 1200 mm airbox (VRB 19000/22000) as VRB-RD120; it is not included in this product.

Data sheets and manuals (PDF)

InoxAir Catalogue Fans (PDF)
