fothermo solar hybrid boiler with direct PV connection and 230 V backup heating, 30 l or 80 l
● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
For business customers, larger quantities or projects, we will be happy to prepare a quote for you.
The price for this version is available on request. We will be happy to send you a quote.
You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.
Description
Description

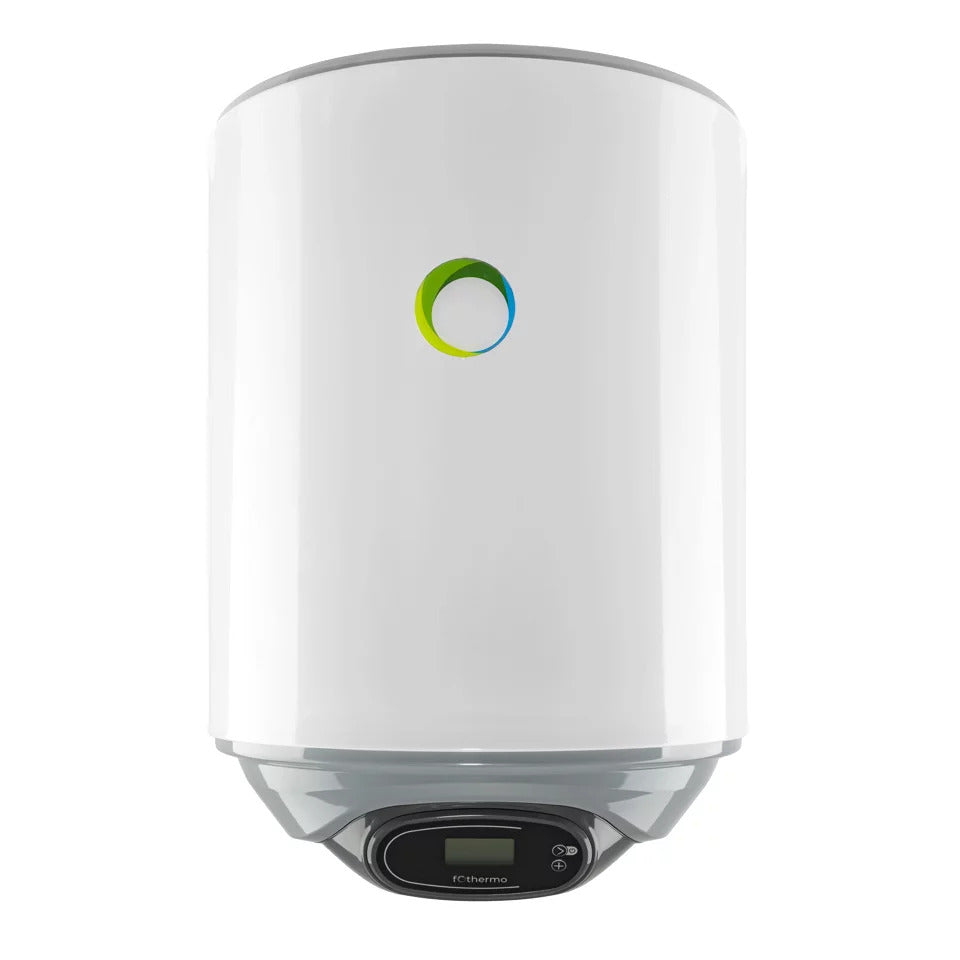

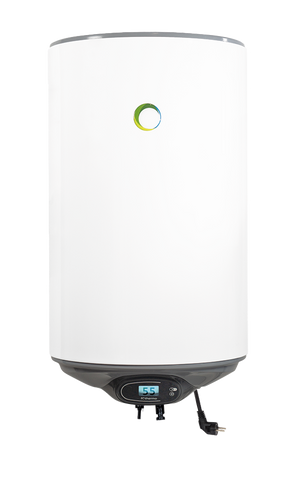

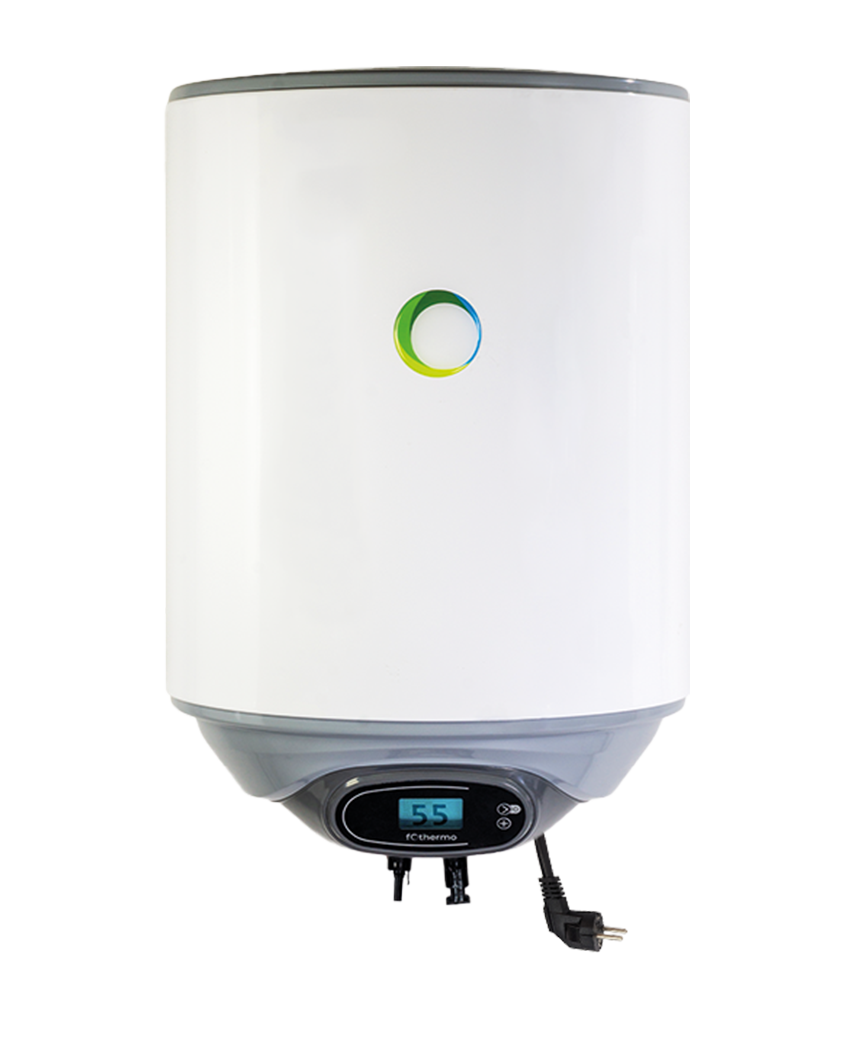

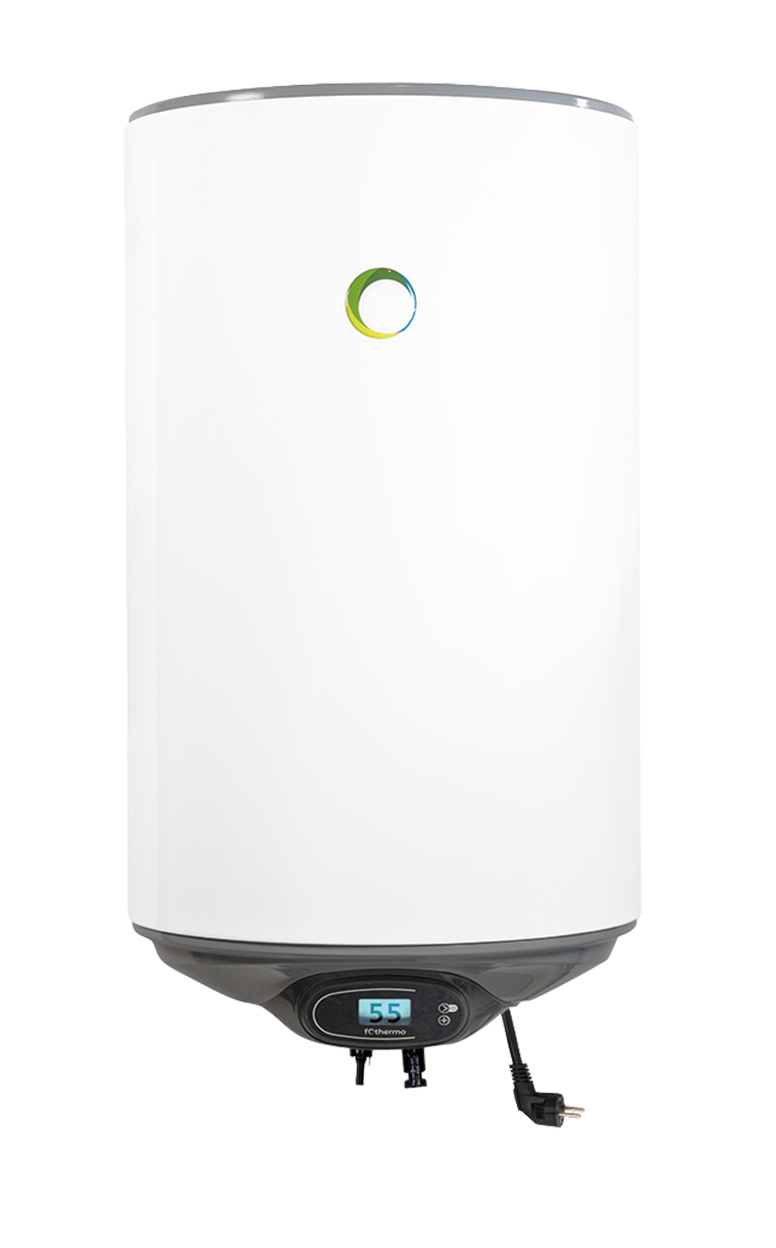

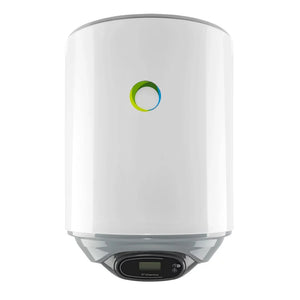

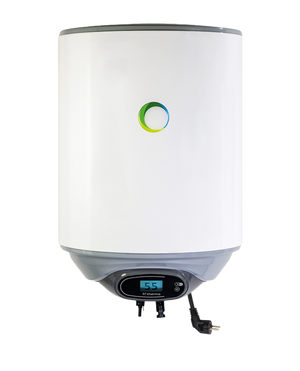

The fothermo solar hybrid boiler is a wall-mounted electric water heater that uses solar power directly for hot water. PV modules are connected to the boiler via MC4 solar connectors without an inverter and without a battery. An integrated MPP tracker controls the PV heating power continuously up to 550 W. If the solar yield is not sufficient, the 230 V backup heater with 1,500 W heats up as soon as the water falls below the minimum temperature set on the thermostat. Without a grid connection the boiler works on solar power alone. The boiler is available with 30 l or 80 l nominal volume.
Features
Features
- Direct PV connection without inverter and without battery, MC4 solar connectors
- Continuously variable PV heating power from 0 to 550 W via one MPP tracker
- Automatic 230 V backup heating with 1,500 W, thermostat with rotary knob

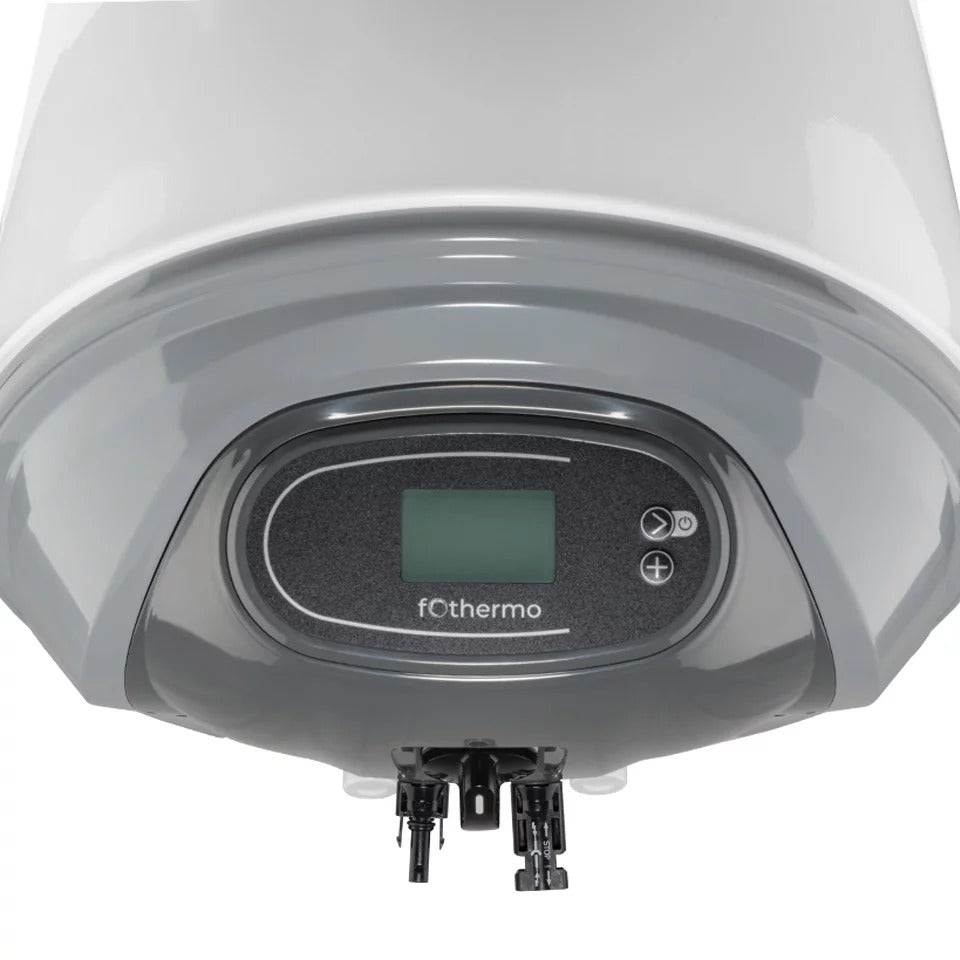

- Digital display for water temperature, PV power and solar yield
- Enamelled steel tank with magnesium anode, polyurethane foam insulation
- 30 l for small draw-off quantities, 80 l for regular showering
Technical data according to the manufacturer
Technical data according to the manufacturer
| 30 l | 80 l | |
|---|---|---|
| Item number | PVB-30-AC | PVB-80-AC |
| EAN | 4260714970136 | 4260714970150 |
| Storage volume | 29 l | 77 l |
| Mixed water 40 °C (calculated, tank 65 °C, cold water 15 °C) | approx. 58 l | approx. 154 l |
| PV heating power | 0 to 550 W, continuously variable | 0 to 550 W, continuously variable |
| Recommended PV power | 400 to 800 W | 600 to 1,200 W |
| Max. PV input power | 2,000 Wp | 2,000 Wp |
| Max. PV open circuit voltage (Voc) | 50 V DC | 50 V DC |
| Recommended module voltage (Vmpp) | 35 to 40 V | 35 to 40 V |
| Max. PV current | 15.5 A, current limited | 15.5 A, current limited |
| PV wiring | parallel only | parallel only |

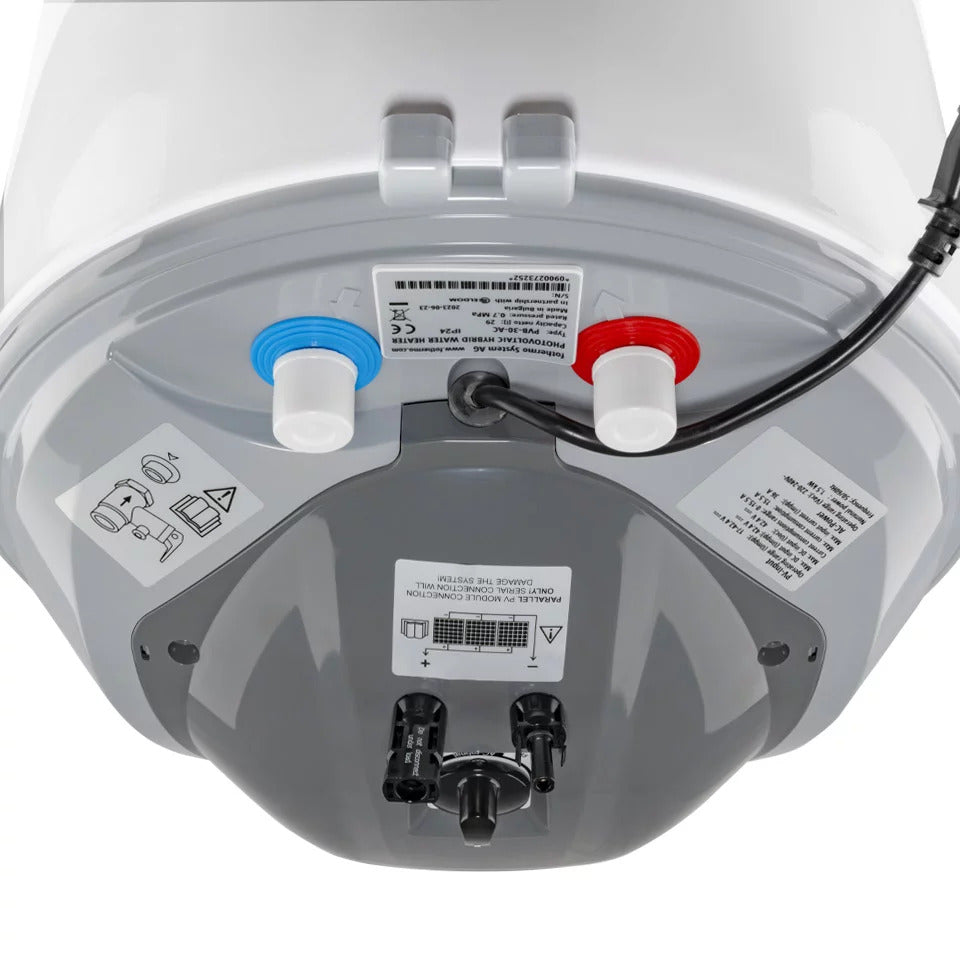

| PV connection | MC4 solar connectors, 1 MPP tracker | MC4 solar connectors, 1 MPP tracker |
| Adjustable PV temperature | 5 to 65 °C | 5 to 65 °C |
| Grid backup heating | 1,500 W, 230 V, plug | 1,500 W, 230 V, plug |
| Adjustable backup temperature | 10 to 75 °C | 10 to 75 °C |
| Nominal pressure | 0.7 MPa (7 bar) | 0.7 MPa (7 bar) |
| Water connection | G ½ male thread | G ½ male thread |
| Tank | enamelled steel, magnesium anode | enamelled steel, magnesium anode |
| Insulation | polyurethane foam | polyurethane foam |
| Temperature loss | approx. 0.42 °C/h | approx. 0.25 °C/h |
| Protection class | IP24 | IP24 |
| Energy efficiency class (water heating) | C, load profile S | C, load profile M |
| Annual electricity consumption | 548 kWh | 1,366 kWh |
| Dimensions L × W × H | 400 × 400 × 600 mm | 470 × 480 × 900 mm |
| Empty weight / filled (calculated) | approx. 15 kg / approx. 44 kg | approx. 25 kg / approx. 102 kg |
| Mounting | wall mounting, vertical, frost-free | wall mounting, vertical, frost-free |
Scope of delivery
Scope of delivery
- Solar hybrid boiler PVB-30-AC or PVB-80-AC
- Safety and quick guide

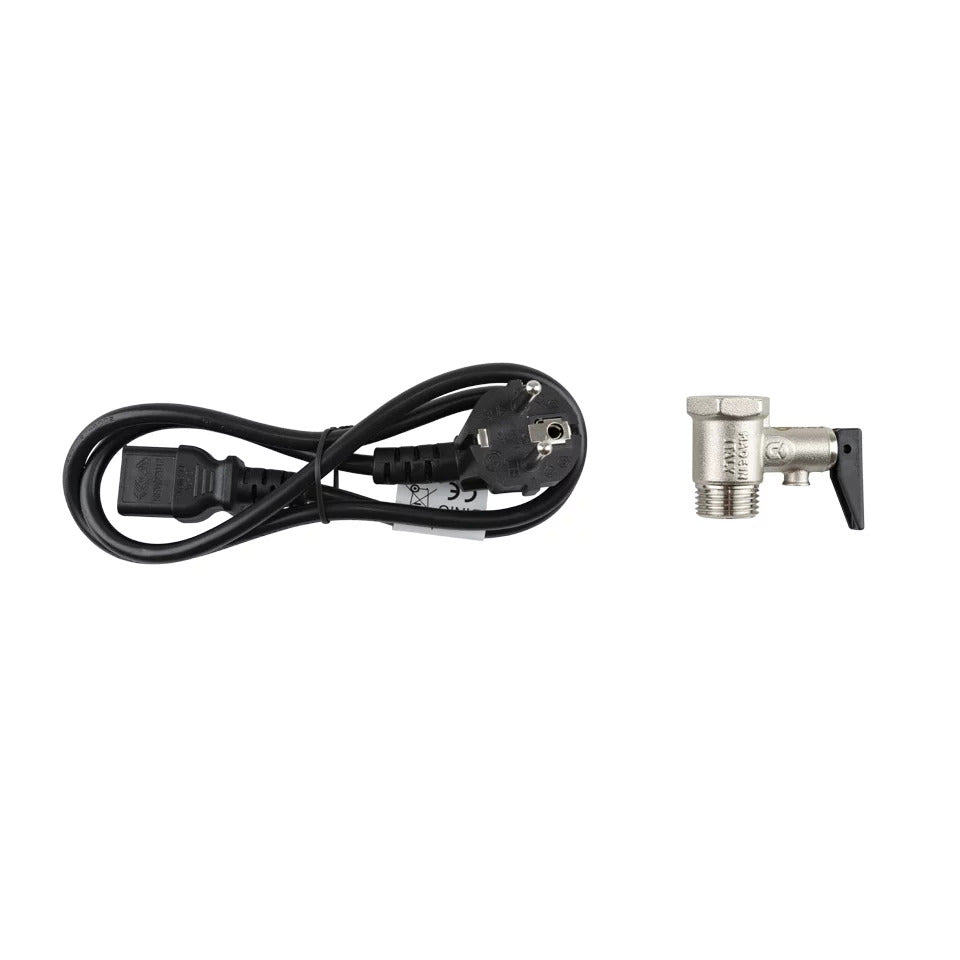

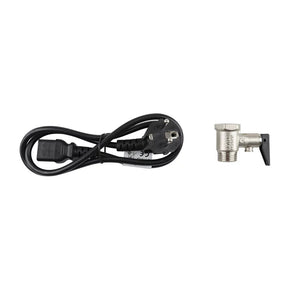

- Non-return and pressure relief valve
- Power cable and PV warning label
Also required
Also required
- PV modules with mounting material, solar cables and parallel connectors if needed
- Wall and water connection material, valve drain and pressure reducer if required
Notes
Notes
- Connect PV modules in parallel only. The open circuit voltage must not exceed 50 V, even in cold weather.

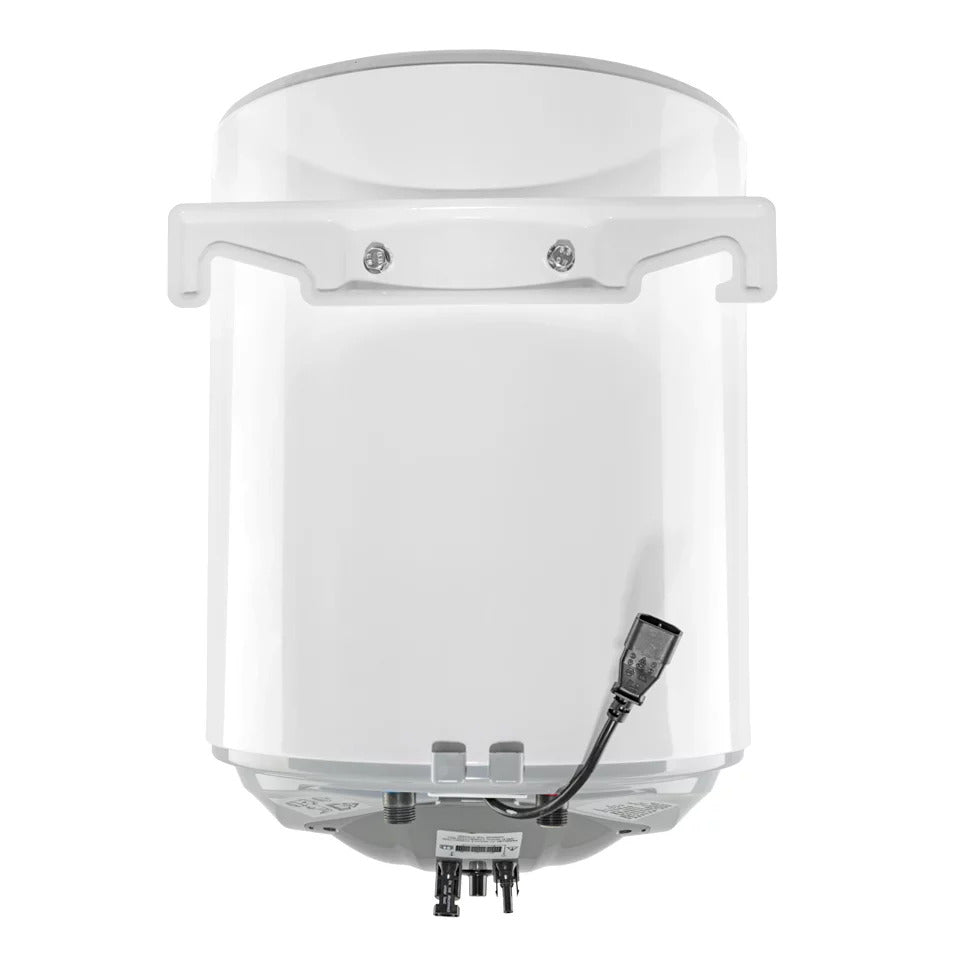

- Wall mounting vertical and frost-free, check the load-bearing capacity of the wall (filled approx. 44 kg or approx. 102 kg).
- Provide a safety valve with drain. Fill the boiler completely with water before connecting it electrically.
- Heating times and mixed water quantities are guide values of the manufacturer and depend on solar power, environment and water draw-off.
- Technical data according to the manufacturer fothermo. The operating instructions are authoritative.
Note: Mounting, water and electrical connection by a qualified installer. On request our experienced installation partners take care of mounting, installation and maintenance at the customer site.
Manufacturer information and safety (GPSR)
Manufacturer information and safety (GPSR)
Manufacturer
fothermo System AG
Im Starkfeld 45b
89231 Neu-Ulm
Germany
Email: info@fothermo.com
Web: fothermo.com
Seller
Dalakakis & Qureshi GbR (wohnungstechnik.de)
Rosensteinstraße 21
70191 Stuttgart
Germany
Email: info@wohnungstechnik.de
Product identification: fothermo solar hybrid boiler with direct PV connection and 230 V backup heating, 30 l or 80 l, item no. PVB-30-AC
Safety information
- Electrical connection only by a qualified electrician in accordance with the applicable regulations (e.g. DIN VDE 0100).
- Disconnect the device from the mains on all poles before installation, maintenance or cleaning and secure it against being switched on again.
- Installation by a qualified installer in accordance with recognised engineering practice (for drinking water installations e.g. DIN EN 806 and DIN 1988).
- Observe the permissible operating pressure and temperature specified by the manufacturer. Depressurise the system and let it cool down before working on it.
- Read the manufacturer's instructions and safety information before use and keep them. Data sheets and manuals, where available, can be found under "Data sheets and manuals (PDF)".
