InoxAir Roof Penetration for EW and DW Stainless Steel Pipe Systems

Name: InoxAir Roof Penetration for EW and DW Stainless Steel Pipe Systems
Brand: InoxAir GmbH
SKU: EW08019-1
Availability: InStock

156^{49 €} ~~185^{00 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Roof Penetration for EW and DW Stainless Steel Pipe Systems combines the following versions in one product: 5° to 30°, 0° (flat roof), 30° to 45°. Select the required version under Roof pitch and then the matching variant under Size. The details for each version are given below.

The versions in detail

5° to 30°: InoxAir roof penetration 5°/30° is a roof penetration with lead base plate and weather collar for the InoxAir stainless steel pipe systems, available for the single-walled pipe system EW (type 018) or the double-walled pipe system DW (type 118). According to inoxair.de, it is intended for roof pitches from 5° to 30°.

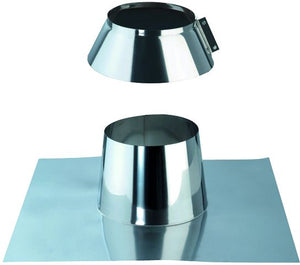

0° (flat roof): InoxAir Roof Duct 0° is a flat roof flashing with chromium-nickel steel (CNS) base plate and storm collar for InoxAir's stainless steel pipe systems, either for the double-walled (DW) or the single-walled pipe system (EW).

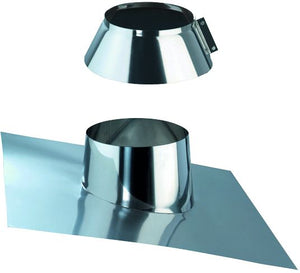

30° to 45°: InoxAir Roof Ducting 30°/45° is an adjustable roof flashing 30/45° with lead base plate and storm collar for InoxAir's stainless steel pipe systems, either for the single-walled (EW) or the double-walled pipe system (DW). According to inoxair.de, it is intended for roof pitches from 30° to 45°.

Technical data

Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source	InoxAir catalogue Stainless steel pipes, pp. 199 and 207; InoxAir catalogue Duct materials, p. 174; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 187 and 192; InoxAir catalogue Stainless steel pipes, pp. 187, 192, 199 and 207

Data per version:

Feature	5° to 30°	0° (flat roof)	30° to 45°
Design	roof penetration 5°/30° with lead base plate and weather collar	flat roof flashing with CNS base plate and storm collar	adjustable roof flashing 30/45° with lead base plate and storm collar
Roof pitch according to inoxair.de	5° to 30°	not specified	30° to 45°
Material	EW: 1.4404; DW: inner pipe 1.4404, outer pipe 1.4301	not specified	not specified
Roof pitch	not specified	0° (flat roof)	not specified
Pipe systems	not specified	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline

Note on variants

Select roof pitch and size. Not every combination is available.

Features

5° to 30°: Lead base plate, with storm collar.
Dimensions per diameter see catalogue page.
5° to 30°: Connection via push-fit sockets according to the catalogue.
According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
5° to 30°: According to the catalogue, with allowance for the linear expansion of the inner pipe and continuous thermal insulation without cold bridges; connection via push-fit sockets.
Double-walled fittings including locking band according to the catalogue.
0° (flat roof): Chromium-nickel steel base plate, with storm collar.
30° to 45°: Lead base plate, with storm collar.
