InoxAir Bend 15°, 30°, 45° and 90°

Name: InoxAir Bend 15°, 30°, 45° and 90°
Brand: InoxAir GmbH
SKU: DW08044-1
Availability: InStock

98^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Bend 15°, 30°, 45° and 90° combines the following versions in one product: 90°, 45°, 30°, 15°. Select the required version under Angle and then the matching variant under Size. The details for each version are given below.

The versions in detail

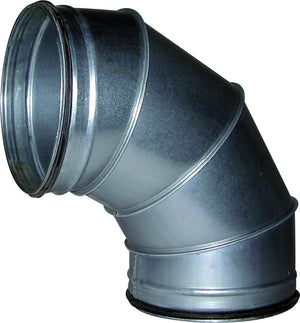

90°: InoxAir 90° bend is a duct bend for a change of direction by 90°. This product combines two systems: bends made of galvanised steel sheet for ventilation ducts (BOG) and bends of InoxAir's stainless steel pipe systems, double-walled (DW) or single-walled (EW). For the stainless steel bends, there are versions with a cleaning or inspection opening in addition to the bend without opening.

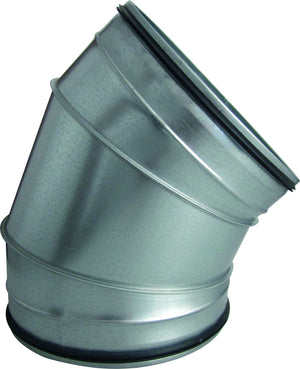

45°: InoxAir Bend 45° is a duct bend for a change of direction by 45°. This product combines two systems: bends made of galvanised steel sheet for ventilation ducts (BOG) and bends of InoxAir's stainless steel pipe systems, double-walled (DW) or single-walled (EW).

30°: InoxAir 30° bend is a duct bend for a change of direction by 30°. This product combines two systems: bends made of galvanised steel sheet for ventilation ducts (BOG) and bends of InoxAir's stainless steel pipe systems, double-walled (DW) or single-walled (EW).

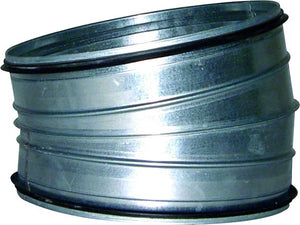

15°: InoxAir Bend 15° is a duct bend for a change of direction by 15°. This product combines two systems: bends made of galvanised steel sheet for ventilation ducts (BOG) and bends of InoxAir's stainless steel pipe systems, double-walled (DW) or single-walled (EW).

Technical data

Steel sheet BOG	half-shell or segmental bend with rubber lip seal, according to inoxair.de on both sides, male-male, galvanised steel sheet
Pipe systems	double-walled DW (inner pipe 1.4404, outer pipe 1.4301) and single-walled EW (1.4404), PROFIline
Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source	InoxAir catalogue Duct materials, p. 167; InoxAir catalogue Stainless steel pipes, pp. 187, 189, 190, 199, 200 and 203; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 187, 189, 199 and 201

Data per version:

Feature	90°	45°	30°	15°
Angle	90°	45°	30°	15°

Note on variants

Select angle and size. Not every combination is available.

Features

BOG: for round ventilation ducts made of galvanised steel sheet.
90°: DW and EW: fittings of the stainless steel pipe systems in three designs (type 433, 431 and 432, see table); dimensions per diameter see catalogue page.
Double-walled fittings including locking band according to the catalogue.
According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
45°: DW and EW: fittings of the stainless steel pipe systems; dimensions per diameter see catalogue page.
30°: DW and EW: fittings of the stainless steel pipe systems; dimensions per diameter see catalogue page.
15°: DW and EW: fittings of the stainless steel pipe systems; dimensions per diameter see catalogue page.
