Blauberg VKA

Name: Blauberg VKA
Brand: Blauberg Ventilatoren GmbH
SKU: 8063466
Price: 95.15 EUR
Availability: InStock

95^{15 €} ~~112^{49 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Connection diameter (Ø mm)

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

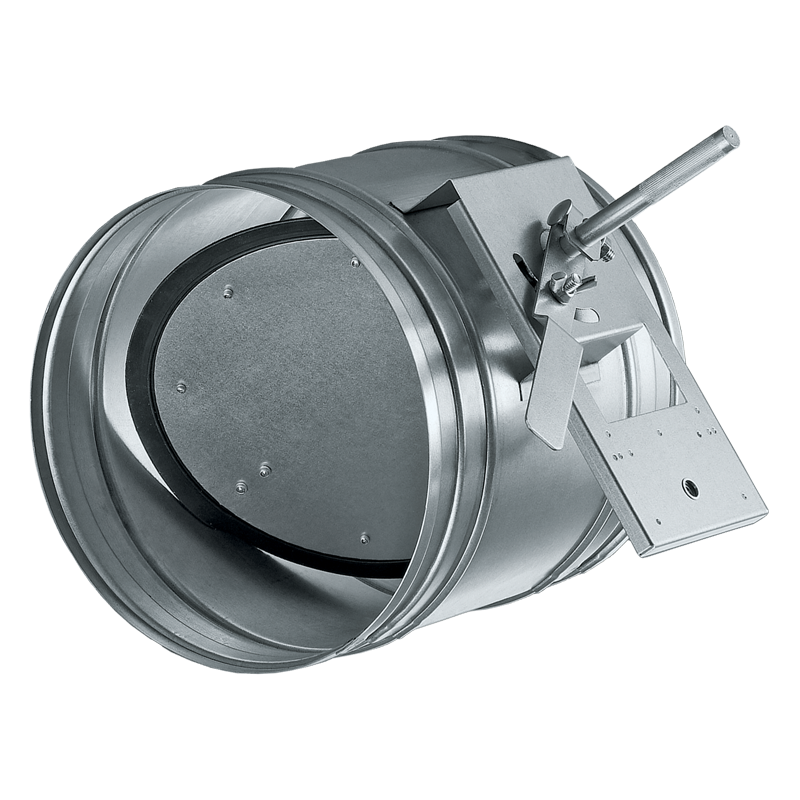

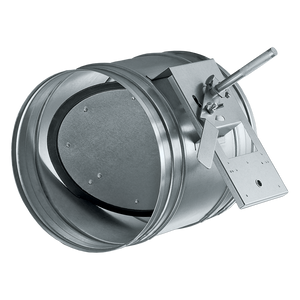

Blauberg VKA is a shut-off damper for round ventilation ducts. According to the data sheet, it is used for automatic shut-off of ventilation ducts in ventilation systems of different rooms. Housing and damper blade are made of galvanised steel; a fixture for mounting a BELIMO electric actuator is provided.

Technical data

Type	Shut-off damper for ventilation ducts, prepared for actuator
Housing and damper blade	Galvanised steel
Seal	Rubber seals to the duct
Compatible actuators according to Blauberg (VKA 100 to 315)	CM230 / LM230A (230 V), TF230 (230 V with spring return), CM24 / LM24A (24 V), TF24 (24 V with spring return)

Option in the shop	Model	Spigot Ø D	W	L	H	Weight	Article number
80 mm	VKA 80	79 mm	190 mm	200 mm	170 mm	0.6 kg	8063466
100 mm	VKA 100	99 mm	220 mm	200 mm	180 mm	0.72 kg	8042362
125 mm	VKA 125	124 mm	245 mm	200 mm	195 mm	0.86 kg	8042379
150 mm	VKA 150	149 mm	270 mm	200 mm	205 mm	1.01 kg	8042386
160 mm	VKA 160	159 mm	280 mm	200 mm	210 mm	1.07 kg	8042393
200 mm	VKA 200	199 mm	320 mm	200 mm	230 mm	1.33 kg	8038631
250 mm	VKA 250	249 mm	370 mm	200 mm	255 mm	1.68 kg	8042409
315 mm	VKA 315	314 mm	435 mm	240 mm	not stated	2.44 kg	8042416
355 mm	VKA 355	348 mm	475 mm	240 mm	not stated	2.75 kg	8063435
400 mm	VKA 400	399 mm	520 mm	240 mm	not stated	3.26 kg	8063442
450 mm	VKA 450	449 mm	570 mm	240 mm	not stated	3.78 kg	8063459

Features

Fixed to the ventilation ducts with hose clamps
Allow sufficient space for connecting and servicing the electric actuator during installation
Actuator not included; BELIMO actuators are available as a separate product in the shop

Note on variants

The option corresponds to the duct connection. The compatibility table in the data sheet lists the actuators for VKA 100 to 315; for VKA 80, 355, 400 and 450 the dimensions are taken from the Blauberg model pages, which do not state an actuator assignment. Dimensions W, L and H refer to the dimensional drawing in the data sheet.

Data sheets and manuals (PDF)

Data sheet VKA (round) (PDF)
