Blauberg Valeo2 Single-Pipe Ventilation: AC or EC Fan Unit and Control Module

Blauberg Valeo2 Single-Pipe Ventilation: AC or EC Fan Unit and Control Module: modular single-pipe ventilation system according to DIN 18017-3 for extracting air from bathrooms and toilets without windows and from kitchen-living rooms; available are the AC and EC fan units and the control module for the AC fan unit. The flush-mounted or surface-mounted housing is available separately. Options under type: AC fan unit, AC 30/60 control module and EC fan unit, 20 to 100 m³/h.

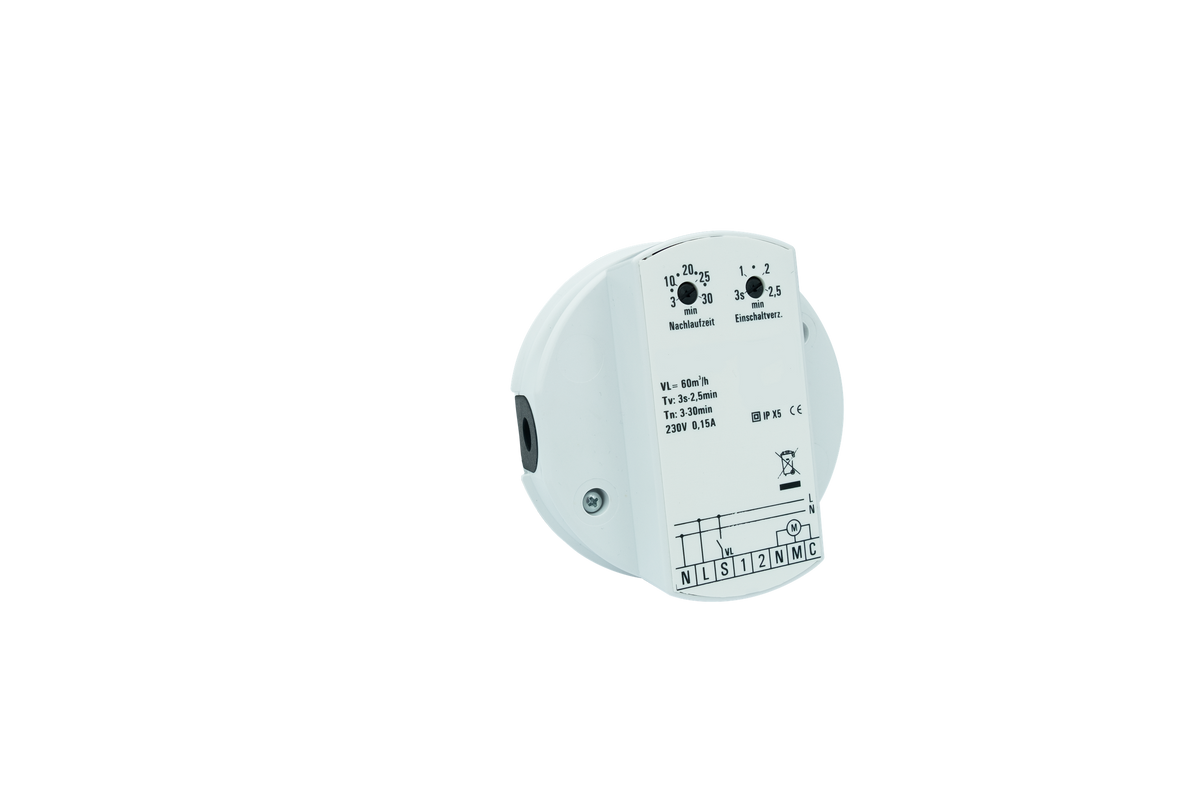

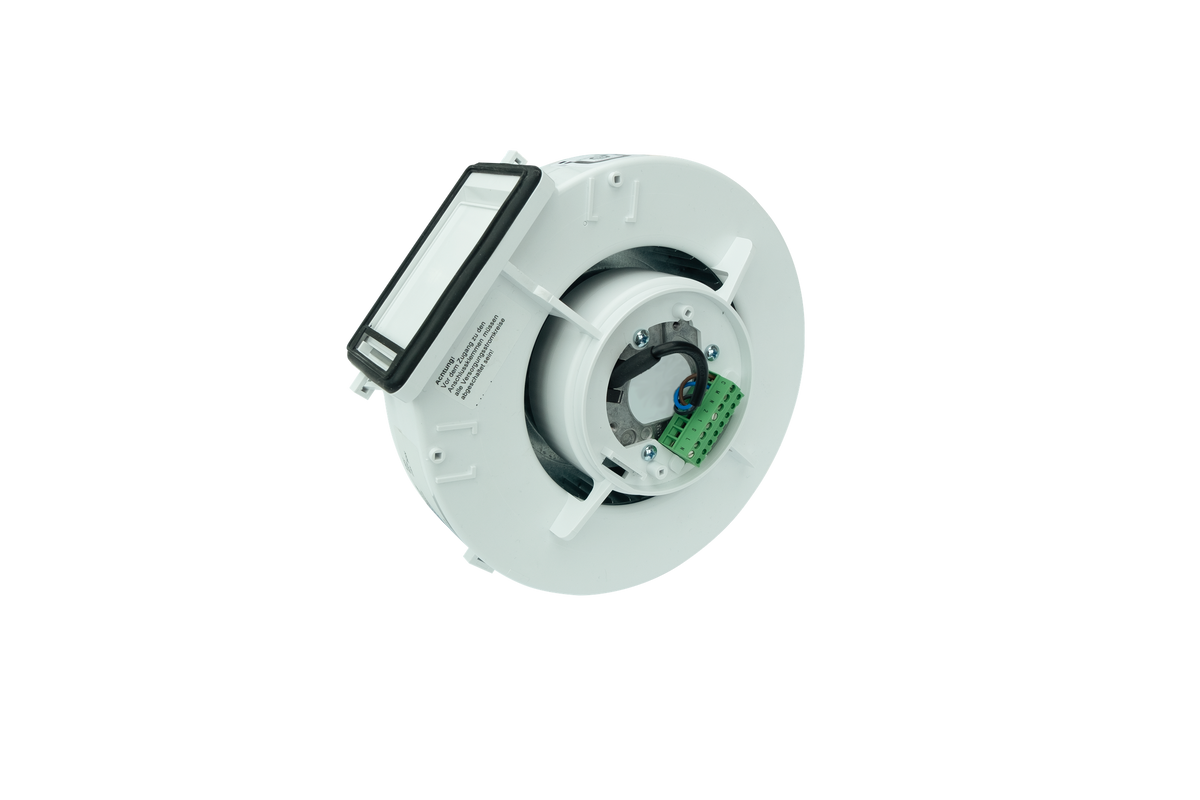

Valeo2 AC: Blauberg Valeo2 is a modular single-duct ventilation system according to DIN 18017-3 for extracting air from bathrooms and toilets without windows as well as from kitchen-living rooms. According to the manufacturer, a complete unit consists of a fan unit, a plug-on control module and a flush-mounted or surface-mounted housing. This offer comprises the Valeo2 AC fan unit and the Valeo2 30/60 control module in the basic version; the housing is not included.

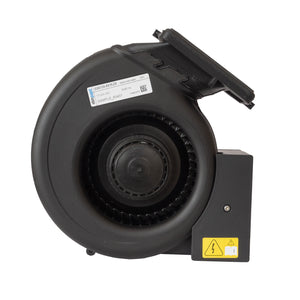

Valeo2 EC: Blauberg Valeo2 EC fan unit is a fan unit with EC motor and inner panel for single-duct ventilation according to DIN 18017-3. According to the manufacturer, it is intended for extracting air from bathrooms and toilets without windows as well as from kitchen-living rooms. The airflow can be set in steps between 20 and 100 m³/h via DIP switches; switch-on and switch-off delays are integrated. A flush-mounted or surface-mounted housing is required for installation (not included). Article number: 8070174.

Data per version:

Select the required version under Type.

• Valeo2 AC: Fan unit with inner panel; protected against water jets according to IPX5 and therefore, according to the manufacturer, approved for installation in protection zone 1 of wet rooms.
• Designed for continuous operation with permanent power supply (manufacturer's information).
• Valeo2 AC: A housing is required for installation (not included): flush-mounted housing Valeo2 BP2 without fire protection, Valeo2 BF with fire protection or surface-mounted housing Valeo2 E2.
• Valeo2 AC: According to the manufacturer, the front panel can be removed without tools for cleaning and filter replacement; the control module and functions can also be retrofitted when installed.
• Valeo2 EC: Single-speed or two-speed operation; time programmes and airflows via two DIP switches on the electronics compartment.
• Valeo2 EC: Protected against water jets according to IPX5 and therefore, according to the manufacturer, approved for installation in protection zone 1 of wet rooms.
• Valeo2 EC: Optional extension with the Valeo2 EC H add-on board for humidity control (8070235) or Valeo2 EC IR for motion detector (8086519), each not included.
• Valeo2 EC: Matching housings according to the manufacturer: flush-mounted housing Valeo2 BP2 without fire protection, Valeo2 BF with fire protection or surface-mounted housing Valeo2 E2 (not included).
• Valeo2 EC: Scope of delivery according to the operating manual: fan insert, filter holder with filter, inner panel.
