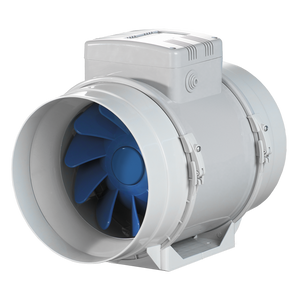

Blauberg Turbo Duct Fan

Name: Blauberg Turbo Duct Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8030697
Price: 342.44 EUR
Availability: InStock

342^{44 €} ~~456^{99 €}~~

Product information sheet

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Connection diameter (Ø mm)

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Turbo Duct Fan: Blauberg Turbo duct fans for round ducts, either with AC motor (standard or with overrun function) or with EC motor. Selectable are connection diameter and version.

Technical data

Power supply	1 phase, 230 V, 50/60 Hz

Data per variant:

Connection diameter (Ø mm)	Version	Article number	Speed control	Impeller	Housing	Air temperature	Ambient temperature	Degree of protection	Mounting position	Power	Current consumption	Max. airflow	Speed	Sound pressure level at 3 m	Weight	W × H × L	Motor	Max. air temperature
100 mm	EC motor	8030697	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	30 W	0.29 A	300 m³/h	3,680 min⁻¹	47 dB(A)	1.75 kg	192 × 241 × 302.5 mm	n/a	n/a
100 mm	With overrun function	8018145	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
100 mm	Standard	8018060	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
125 mm	EC motor	8046681	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	40 W	0.37 A	450 m³/h	3,750 min⁻¹	49 dB(A)	2.15 kg	193 × 241 × 258.5 mm	n/a	n/a
125 mm	With overrun function	8018282	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
125 mm	Standard	8018190	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
150 mm	EC motor	8046698	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	55 W	0.48 A	600 m³/h	3,390 min⁻¹	46 dB(A)	2.30 kg	216.5 × 253.5 × 289 mm	n/a	n/a
150 mm	With overrun function	8018411	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
150 mm	Standard	8018343	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
160 mm	EC motor	8050497	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	55 W	0.48 A	600 m³/h	3,390 min⁻¹	46 dB(A)	3.25 kg	216.5 × 253.5 × 289 mm	n/a	n/a
160 mm	With overrun function	8018558	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
160 mm	Standard	8018480	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
200 mm	EC motor	8046704	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	123 W	1.02 A	1,040 m³/h	3,390 min⁻¹	49 dB(A)	3.95 kg	239 × 277.5 × 295.5 mm	n/a	n/a
200 mm	With overrun function	8018688	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
200 mm	Standard	8018602	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
250 mm	EC motor	8046711	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	169 W	1.38 A	1,285 m³/h	2,870 min⁻¹	53 dB(A)	7.80 kg	288 × 339 × 383 mm	n/a	n/a
250 mm	With overrun function	8018886	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
250 mm	Standard	8018763	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
315 mm	EC motor	8030680	external control signal 0 to 10 V	mixed-flow, plastic	polypropylene, flame-retardant	-25 to 55 °C	1 to 40 °C	IPX4, motor IP44	any	284 W	1.25 A	1,970 m³/h	2,826 min⁻¹	55 dB(A)	11.95 kg	360 × 423 × 443 mm	n/a	n/a
315 mm	With overrun function	8019036	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C
315 mm	Standard	8018893	n/a	mixed-flow, plastic	flame-retardant polypropylene	n/a	n/a	IPX4	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	two-speed, ball bearings, thermal overload protection	+60 °C

Features

Fan unit with terminal box, can be rotated as required.
According to the manufacturer, the impeller and motor block can be removed for maintenance without removing the entire fan from the duct.
Speed control (two speeds and off) via an external switch for multi-speed fans; steplessly via an external thyristor controller or an external autotransformer (available separately).
Installation at any suitable point of the ventilation duct, for example above suspended ceilings; fixing to the wall or ceiling with a mounting plate. Mounting kits for parallel installation (kit TD) or series installation (kit TL) of fans of the same size are available separately.
Removable central unit with motor, impeller and terminal box; it is attached to the spigots with snap-lock hose clamps and can be removed for maintenance without dismantling other components.
Inlet spigot, conical impeller with profiled blades, diffuser and straightener for an even airflow (manufacturer's information).
Can be installed at any point of the duct system without restriction of the mounting angle; flat mounting plate on the housing for wall fixing.
According to the manufacturer: parallel installation of multiple fans for a higher airflow, series installation for a higher pressure.

Note on variants

Select the connection diameter (ø mm) and version. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.

The characteristics according to the data sheet apply per size; the article numbers are given in the order Standard / With run-on function.

Installation notes

According to the operating manual, the fan is suitable for vertical and horizontal installation on the floor, wall or ceiling. The direction of airflow is indicated by an arrow on the housing.
Additional protection against water ingress according to the manufacturer: fit a protective hood when installed vertically; connect a ventilation duct on both sides in every mounting position.
Connect to the mains only with the power switched off and according to the wiring diagram on the terminal box.
