Blauberg T-Piece 90° TSM-90 and TSZ-90

Name: Blauberg T-Piece 90° TSM-90 and TSZ-90
Brand: Blauberg Ventilatoren GmbH
SKU: 8037931
Price: 44.37 EUR
Availability: InStock

44^{37 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Material

Connection diameter (Ø mm)

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg T-Piece 90° TSM-90 and TSZ-90: T-piece for circular ventilation ducts with three connections of equal size, made of polymer-coated, white painted steel (TSM-90) or galvanised steel (TSZ-90). Options under material: polymer-coated steel, white painted (TSM-90) and galvanised steel (TSZ-90).

The versions in detail

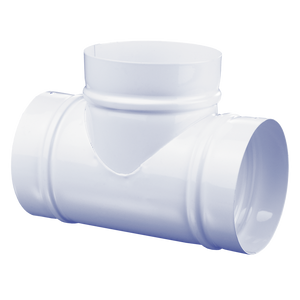

TSM-90: Blauberg TSM-90° is a T-piece for round ventilation pipes made of polymer-coated steel, painted white. All three connections have the same diameter. The version made of galvanised steel is called TSZ-90° by Blauberg.

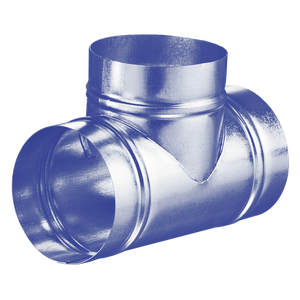

TSZ-90: Blauberg TSZ-90° is a T-piece for round ventilation pipes made of galvanised steel. All three connections have the same diameter. The version made of polymer-coated steel painted white is called TSM-90° by Blauberg.

Technical data

Data per version:

Feature	TSM-90	TSZ-90
Material	polymer-coated steel, painted white	galvanised steel

Note on variants

Select material and connection diameter (ø mm). Not every combination is available.

Material	Connection diameter (Ø mm)	Item number	Model	Length L, mm
polymer-coated steel, white painted (TSM-90)	100 mm	8037863	TSM-90° 100	190
polymer-coated steel, white painted (TSM-90)	125 mm	8037870	TSM-90° 125	215
polymer-coated steel, white painted (TSM-90)	150 mm	8037887	TSM-90° 150	240
polymer-coated steel, white painted (TSM-90)	160 mm	8037894	TSM-90° 160	250
polymer-coated steel, white painted (TSM-90)	200 mm	8037900	TSM-90° 200	300
polymer-coated steel, white painted (TSM-90)	250 mm	8037917	TSM-90° 250	350
polymer-coated steel, white painted (TSM-90)	315 mm	8037924	TSM-90° 315	415
polymer-coated steel, white painted (TSM-90)	80 mm	8037931	TSM-90° 80	170
galvanised steel (TSZ-90)	100 mm	8037696	TSZ-90° 100	190
galvanised steel (TSZ-90)	160 mm	8037726	TSZ-90° 160	250
galvanised steel (TSZ-90)	125 mm	8037702	TSZ-90° 125	215
galvanised steel (TSZ-90)	150 mm	8037719	TSZ-90° 150	240
galvanised steel (TSZ-90)	200 mm	8037733	TSZ-90° 200	300
galvanised steel (TSZ-90)	250 mm	8037740	TSZ-90° 250	350
galvanised steel (TSZ-90)	315 mm	8037757	TSZ-90° 315	415
