Blauberg Ventilatoren GmbH | SKU: 8039645

Blauberg Decor Ventilation Hoods and Cover Grilles, Plastic, with Round Spigot

Name: Blauberg Decor Ventilation Hoods and Cover Grilles, Plastic, with Round Spigot
Brand: Blauberg Ventilatoren GmbH
SKU: 8039645
Price: 13.1 EUR
Availability: InStock

13^{10 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Decor Ventilation Hoods and Cover Grilles, Plastic, with Round Spigot: square plastic outer covers of the Blauberg Decor series for the outside wall, with round spigot: ventilation hoods with gravity or non-return flaps and cover grilles with insect screen, in the formats 155 x 155 and 185 x 185 mm. 9 versions are available under version.

The versions in detail

Decor H and 185x185/125s: Blauberg Ventilation Hood Decor comprises square plastic outdoor covers from the Blauberg Decor series with round spigot: the cover grille Decor 185x185/125s with insect screen and the Decor H ventilation hoods in the sizes 155 x 155 mm and 185 x 185 mm.

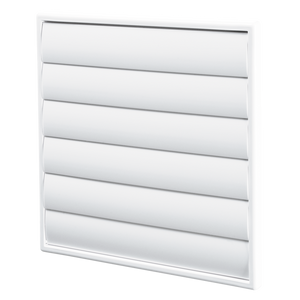

Decor 185x185 with gravity flaps: Blauberg Ventilation Hood Decor is a Blauberg plastic cover grille with gravity flaps for the outer wall, size 185 x 185 mm, in white. According to Blauberg, the shutters prevent backflow. Versions with a ø 125 mm and a ø 150 mm spigot are available.

Decor 155x155/HUK: Blauberg Ventilation Hood Decor 155x155 HUK, White is a square plastic ventilation hood from the Blauberg Decor H series for the outer wall, with non-return flap and universal spigot. According to Blauberg, the non-return flap prevents backflow.

Decor 185x185/150Rs and 150HK: Blauberg Decor 185x185/150 Ventilation Hood or Cover Grille, White is available in two plastic versions from Blauberg for outdoor use, each with a Ø 150 mm connection spigot: as cover grille Decor 185x185/150Rs with insect screen and adjustable free cross-section, or as ventilation hood Decor 185x185/150HK with non-return flap.

Technical data

Data per version:

Feature	Decor H and 185x185/125s	Decor 185x185 with gravity flaps	Decor 155x155/HUK	Decor 185x185/150Rs and 150HK
Material	Plastic, temperature- and UV-resistant, with antistatic effect	Plastic	Plastic	plastic
Colour	not specified	white	white	white
External size	not specified	186 x 186 mm	154 x 154 mm	not specified

Note on variants

Select the required version under Version.

Version	Item number	Type according to data sheet	External size	Spigot	Designation	Design according to Blauberg	Effective cross-section
185x185/125s, cover grille with insect screen	8039645	Cover grille with insect screen	186 x 186 mm	ø 125 mm
185x185/150H	8030437	Ventilation hood Decor H	186 x 186 mm	ø 150 mm
155x155/100H	8026836	Ventilation hood Decor H	154 x 154 mm	ø 100 mm
185x185/125H	8039621	Ventilation hood Decor H	186 x 186 mm	ø 125 mm
185x185, gravity flaps, spigot Ø 125 mm	8039614			ø 125 mm	Decor 185x185/125G
185x185, gravity flaps, spigot Ø 150 mm	8039652			ø 150 mm	Decor 185x185/150G
155x155/HUK, non-return flap, universal spigot	8026898		154 x 154 mm		Decor 155x155/HUK
185x185/150Rs, cover grille with insect screen	8039676					square cover grille, insect screen, manual adjustment of the free cross-section	0.0044 m²
185x185/150HK, non-return flap	8039669					ventilation hood with non-return flap, protective grille against birds and rodents	0.012 m²

Features

Decor H and 185x185/125s: Decor H according to the data sheet: outer wall mounting on ventilation ducts or pipes, protective grille against birds and rodents, flush mounting possible with a flush-mounting bracket.
Decor H and 185x185/125s: Decor 185x185/125s according to the data sheet: wall or ceiling mounting, for covering ventilation openings and connecting to ventilation ducts, with insect screen.
Decor 185x185 with gravity flaps: According to the Decor-G data sheet: outer wall mounting, mounting on ventilation ducts or pipes, temperature- and UV-resistant plastic with antistatic effect, flush-mounting bracket.
Decor 155x155/HUK: Outer wall mounting on ventilation ducts or pipes
Decor 155x155/HUK: Protective grille against birds and rodents
Decor 155x155/HUK: Temperature- and UV-resistant plastic with antistatic effect
Decor 155x155/HUK: Flush mounting possible with a flush-mounting bracket
Decor 185x185/150Rs and 150HK: Temperature- and UV-resistant plastic with antistatic effect
Decor 185x185/150Rs and 150HK: Version HK: non-return flap prevents backflow of air
Decor 185x185/150Rs and 150HK: Version Rs: insect screen and manual adjustment of the free cross-section

Data sheets and manuals (PDF)
