Blauberg Ventilatoren GmbH | SKU: 8041129

Blauberg KZ and KZH Hose Clamp, without or with Mounting Bracket

Name: Blauberg KZ and KZH Hose Clamp, without or with Mounting Bracket
Brand: Blauberg Ventilatoren GmbH
SKU: 8041129
Price: 44.53 EUR
Availability: InStock

44^{53 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Diameter (Ø mm)

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg KZ and KZH Hose Clamp, without or with Mounting Bracket: hose clamp made of galvanised steel strip for circular ventilation ducts, with microporous rubber layer inside for vibration damping, as KZ or as KZH with mounting bracket for fixing to wall or ceiling. Options under version: KZ, without mounting bracket and KZH, with mounting bracket.

The versions in detail

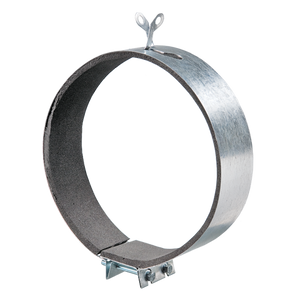

KZ, without mounting bracket: Blauberg KZ is a hose clamp made of galvanised steel band for round ventilation pipes. According to Blauberg, the inside has a microporous rubber layer for vibration damping. The clamp is placed around the pipe and fixed with two clamping screws.

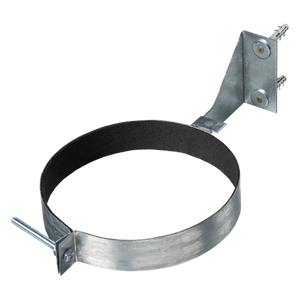

KZH, with mounting bracket: Blauberg KZH is a hose clamp made of galvanised steel band with a mounting bracket for round ventilation pipes. According to Blauberg, the mounting bracket is fastened to the wall or ceiling with dowels; the pipe is fixed in the clamp with one clamping screw. The inside has a microporous rubber layer for vibration damping.

Technical data

Material	galvanised steel band with microporous rubber layer inside
Suitable for ventilation pipes	100 to 315 mm

Note on variants

Select version and diameter (ø mm). Not every combination is available.

Version	Diameter (Ø mm)	Item number	D, mm	H, mm	Weight, kg	L, mm
KZ, without mounting bracket	100 mm	8041129	100	172	0.206
KZ, without mounting bracket	125 mm	8041136	125	198	0.232
KZ, without mounting bracket	150 mm	8041143	150	224	0.296
KZ, without mounting bracket	160 mm	8041150	160	232	0.358
KZ, without mounting bracket	200 mm	8041167	200	274	0.42
KZ, without mounting bracket	250 mm	8041174	250	326	0.55
KZ, without mounting bracket	315 mm	8041181	315	380	0.65
KZH, with mounting bracket	100 mm	8039041	100		0.21	204
KZH, with mounting bracket	125 mm	8031670	125		0.22	229
KZH, with mounting bracket	150 mm	8032608	150		0.25	254
KZH, with mounting bracket	160 mm	8031687	160		0.26	264
KZH, with mounting bracket	200 mm	8038228	200		0.31	304
KZH, with mounting bracket	250 mm	8039058	250		0.35	354
KZH, with mounting bracket	315 mm	8039065	315		0.42	419

Data sheets and manuals (PDF)
