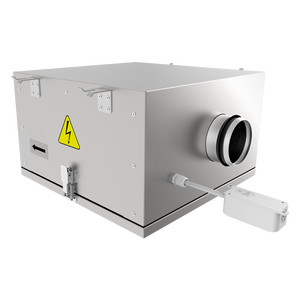

Blauberg Iso-RB Duct Fan

Name: Blauberg Iso-RB Duct Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8052453
Price: 594.37 EUR
Availability: Discontinued

787^{26 €} ~~1.073^{99 €}~~

Product information sheet

Tax included Shipping calculated at checkout.

● Delivery time: 2 to 3 weeks
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Iso-RB Duct Fan: Blauberg Iso-RB sound-insulated duct fans, as Iso-RB with AC motor or Iso-RB EC with EC motor; the predecessor series Iso-B is listed as a discontinued model. Selectable are connection diameter, performance level and model.

Technical data

Temperature of the conveyed medium	-25 to 55 °C
Degree of protection	IPX4 (motor see table)

Data per variant:

Connection diameter (Ø mm)	Performance level	Model	Article number	Successor	Power supply	Power consumption	Current consumption	Maximum airflow	Speed	Sound pressure LpA at 3 m	Motor protection	Weight	SEC class
100 mm	EC	Iso-B (discontinued model)	8052927	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
100 mm	Standard	Iso-B (discontinued model)	8016226	Blauberg Iso-RB, 100 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
125 mm	EC	Iso-B (discontinued model)	8052941	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
125 mm	Standard	Iso-B (discontinued model)	8016233	Blauberg Iso-RB, 125 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
150 mm	EC	Iso-B (discontinued model)	8052965	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
150 mm	Standard	Iso-B (discontinued model)	8016257	Blauberg Iso-RB, 150 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
160 mm	EC	Iso-B (discontinued model)	8052989	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
160 mm	Standard	Iso-B (discontinued model)	8016264	Blauberg Iso-RB, 160 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
200 mm	EC	Iso-B (discontinued model)	8053009	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
200 mm	MAX	Iso-B (discontinued model)	8016295	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
200 mm	Standard	Iso-B (discontinued model)	8016271	Blauberg Iso-RB, 200 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
250 mm	EC	Iso-B (discontinued model)	8053023	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
250 mm	Standard	Iso-B (discontinued model)	8016325	Blauberg Iso-RB, 250 mm / Standard	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
315 mm	EC	Iso-B (discontinued model)	8053047	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
315 mm	Standard	Iso-B (discontinued model)	8016349	Blauberg Iso-RB	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
100 mm	Standard	Iso-RB	8051418	n/a	1 phase, 230 V, 50 Hz	58 W	0.25 A	285 m³/h	2530 min⁻¹	34 dB(A)	IP44	13 kg	C
125 mm	MAX	Iso-RB	8051432	n/a	1 phase, 230 V, 50 Hz	88 W	0.37 A	484 m³/h	2670 min⁻¹	40 dB(A)	IP44	19 kg	C
125 mm	Standard	Iso-RB	8051425	n/a	1 phase, 230 V, 50 Hz	61 W	0.28 A	330 m³/h	2560 min⁻¹	35 dB(A)	IP44	13 kg	C
150 mm	Standard	Iso-RB	8051449	n/a	1 phase, 230 V, 50 Hz	84 W	0.37 A	485 m³/h	2620 min⁻¹	38 dB(A)	IP44	17 kg	C
160 mm	Standard	Iso-RB	8051456	n/a	1 phase, 230 V, 50 Hz	86 W	0.38 A	500 m³/h	2670 min⁻¹	38 dB(A)	IP44	17 kg	C
200 mm	Standard	Iso-RB	8051463	n/a	1 phase, 230 V, 50 Hz	164 W	0.71 A	770 m³/h	2580 min⁻¹	42 dB(A)	IP44	22.6 kg	C
250 mm	Standard	Iso-RB	8051470	n/a	1 phase, 230 V, 50 Hz	320 W	1.40 A	1515 m³/h	2615 min⁻¹	45 dB(A)	IP44	33 kg
355 mm	Standard	Iso-RB	8051494	n/a	1 phase, 230 V, 50 Hz	202 W	0.89 A	2235 m³/h	1330 min⁻¹	48 dB(A)	IP44	58 kg
400 mm	Standard	Iso-RB	8051500	n/a	1 phase, 230 V, 50 Hz	349 W	2.00 A	2860 m³/h	1380 min⁻¹	48 dB(A)	IP54	not stated
450 mm	Standard	Iso-RB	8051517	n/a	1 phase, 230 V, 50 Hz	482 W	2.13 A	3750 m³/h	1350 min⁻¹	50 dB(A)	IP54	84 kg
500 mm	Standard	Iso-RB	8051524	n/a	3 phases, 230 V, 50 Hz	730 W	2.82 A	7000 m³/h	980 min⁻¹	56 dB(A)	IP54	129 kg
100 mm	EC	Iso-RB EC	8052453	n/a	1 phase, 230 V, 50/60 Hz	69 W	0.55 A	341 m³/h	3270 min⁻¹	37 dB(A)	IP44	12 kg	B
125 mm	EC	Iso-RB EC	8052460	n/a	1 phase, 230 V, 50/60 Hz	78 W	0.59 A	444 m³/h	3270 min⁻¹	39 dB(A)	IP44	12 kg	B
150 mm	EC	Iso-RB EC	8052477	n/a	1 phase, 230 V, 50/60 Hz	81 W	0.61 A	495 m³/h	3270 min⁻¹	40 dB(A)	IP44	12 kg	B
160 mm	EC	Iso-RB EC	8052484	n/a	1 phase, 230 V, 50/60 Hz	85 W	0.76 A	454 m³/h	3600 min⁻¹	40 dB(A)	IP44	12 kg	B
200 mm	EC	Iso-RB EC	8052491	n/a	1 phase, 230 V, 50/60 Hz	111 W	0.88 A	740 m³/h	2400 min⁻¹	42 dB(A)	IP44	20 kg	B
250 mm	EC	Iso-RB EC	8052507	n/a	1 phase, 230 V, 50/60 Hz	164 W	1.32 A	1097 m³/h	2800 min⁻¹	45 dB(A)	IP44	27 kg	B
315 mm	EC	Iso-RB EC	8052514	n/a	1 phase, 230 V, 50/60 Hz	531 W	2.32 A	3053 m³/h	2360 min⁻¹	47 dB(A)	IP54	47 kg
355 mm	EC	Iso-RB EC	8052521	n/a	1 phase, 230 V, 50/60 Hz	527 W	2.31 A	3417 m³/h	2360 min⁻¹	50 dB(A)	IP54	47 kg
400 mm	EC	Iso-RB EC	8052538	n/a	1 phase, 230 V, 50/60 Hz	513 W	2.25 A	3633 m³/h	2360 min⁻¹	51 dB(A)	IP54	47 kg
450 mm	EC	Iso-RB EC	8052545	n/a	3 phases, 400 V, 50/60 Hz	1200 W	1.95 A	5620 m³/h	2580 min⁻¹	54 dB(A)	IP54	60 kg
500 mm	EC	Iso-RB EC	8052552	n/a	1 phase, 230 V, 50/60 Hz	752 W	3.42 A	7145 m³/h	1440 min⁻¹	56 dB(A)	IP54	86 kg

Features

Aluzinc housing; the top cover is secured with a special fastener.
Heat and sound insulation made of non-combustible mineral wool, 50 mm thick; the inner surface of the insulation is covered with perforated sheet metal.
Round, rubber-sealed connection spigots.
External rotor motor with backward-curved impeller, built-in thermal protection with automatic reset, ball bearings.
Speed control continuously or in steps via a thyristor or autotransformer speed controller; several fans can be connected to one controller as long as the total power and operating current do not exceed the rated values of the controller.
EC motor (electronically commutated) with external rotor and backward-curved impeller; overheating protection with automatic restart; the impeller is dynamically balanced.
Scope of delivery according to the operating instructions: fan and operating instructions.

Note on variants

Select the connection diameter (ø mm), performance level and model. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.

Discontinued models

The following variants are no longer produced by the manufacturer and can no longer be ordered. When such a variant is selected, the successor model is shown.

Installation notes

According to the data sheet, the fan is installed between the ventilation ducts; when connected via flexible connectors, it must be fixed to the building with brackets, suspensions or mounting holders. It can be installed at any suitable point in the ventilation system, in the direction of the arrow on the housing; sufficient access for maintenance must be provided.
