Blauberg Room Sensors DPWQ and DPWC for CO2, VOC, Temperature and Humidity

Name: Blauberg Room Sensors DPWQ and DPWC for CO2, VOC, Temperature and Humidity
Brand: Blauberg Ventilatoren GmbH
SKU: 8066658
Price: 734.44 EUR
Availability: InStock

734^{44 €} ~~971^{49 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Measured variable

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Room Sensors DPWQ and DPWC for CO2, VOC, Temperature and Humidity: room sensors from Blauberg for wall mounting for demand-controlled regulation of ventilation systems: DPWQ40200 for carbon dioxide, DPWQ30600 for VOC (air quality) and DPWC11200 for temperature and humidity. Options under measured variable: CO2 (DPWQ40200), VOC (DPWQ30600) and Temperature and humidity (DPWC11200).

The versions in detail

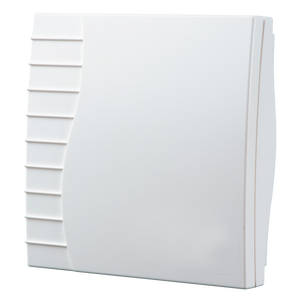

CO2 (DPWQ40200): Blauberg DPWQ40200 is a sensor with self-calibration and microprocessor control for measuring the carbon dioxide content of the air in the range from 0 to 2000 ppm. The carbon dioxide content is measured with a non-dispersive infrared absorption analyser (NDIR). The analogue output allows continuous fan speed control in proportion to the carbon dioxide concentration; this requires a fan with EC motor or frequency drive.

VOC (DPWQ30600): Blauberg DPWQ30600 is a VOC sensor for measuring indoor air quality, with self-calibration and microprocessor control. According to the data sheet, it detects the degree of air saturation with pollutants such as cigarette smoke, exhaled air and solvent and cleaning agent vapours. The analogue output allows continuous fan speed control in proportion to air quality; this requires a fan with EC motor or frequency drive.

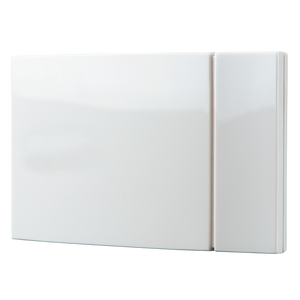

Temperature and humidity (DPWC11200): Blauberg DPWC11200 is a temperature and humidity sensor for wall mounting in the room. According to the data sheet, it is used for temperature control and for controlling humidification and/or dehumidification in ventilation, air conditioning and heating systems. The analogue output allows continuous fan speed control; this requires a fan with EC motor. The speed is controlled in proportion to humidity and temperature.

Technical data

Analogue outputs	0 to 10 V and 4 to 20 mA

Data per version:

Feature	CO2 (DPWQ40200)	VOC (DPWQ30600)	Temperature and humidity (DPWC11200)
Type	Carbon dioxide sensor (NDIR), wall or junction box mounting	VOC sensor, room mounting	Temperature and humidity sensor, wall mounting
Power supply	24 V AC/DC	24 V AC/DC	8 to 30 V DC / 12 to 24 V AC
Measuring range	0 to 2000 ppm	0 to 100 % air quality	not specified
Measuring accuracy	±30 ppm, ±5 % of maximum value	±20 %	not specified
Operating conditions	0 to +50 °C, 10 to 90 % relative humidity without condensation	0 to +50 °C, 10 to 90 % relative humidity without condensation	-10 to +60 °C, 10 to 90 % humidity without condensation
Degree of protection	IP55	IP30	IP30
Outer dimensions	95 × 97 × 30 mm	not specified	127 × 80 × 30 mm

Note on variants

Select the required version under Measured variable.

Measured variable	Item number
CO2 (DPWQ40200)	8066658
VOC (DPWQ30600)	8066641
Temperature and humidity (DPWC11200)	8068249

Features

CO2 (DPWQ40200): Mounting in the room on the wall or in a junction box
CO2 (DPWQ40200): The data sheet (2018/2019) contains wiring diagrams for KOMFORT Roto EC D/S, CIVIC EC L and CIVIC EC D
VOC (DPWQ30600): Sensitivity adjustable to the expected maximum level of air pollution
VOC (DPWQ30600): Air exchange is automatically adapted to the specified level of air pollution
