Blauberg Box Duct Fan

Name: Blauberg Box Duct Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8052200
Price: 660.0 EUR
Availability: InStock

660^{00 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

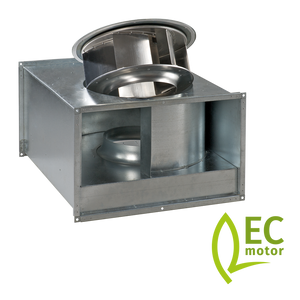

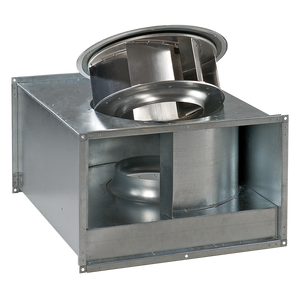

Blauberg Box Duct Fan: Blauberg Box centrifugal duct fans for rectangular ducts, with asynchronous motor or EC motor (speed control via 0 to 10 V). Selectable are duct connection (in cm), motor and version (max denotes the version with high-performance motor).

Technical data

Data per variant:

Duct connection	Motor	Version	Article number	Air temperature	Housing	Type	Degree of protection	Impeller	Connection	Power supply	Power	Current	Max. airflow	Speed	Sound pressure level at 3 m	Motor protection	External dimensions	Weight	Connection cross-section	Power consumption	Current consumption	Maximum airflow	Degree of protection / motor	Mains frequency	Connection flanges	Ambient conditions	Mounting position	LpA at 3 m	SEC class
30x15	EC motor, type 1	Standard	8052200	-25 to +50 °C	galvanised steel	30x15-1	IPX4	plastic for 30x15-1 and 40x20-1	300 x 150 mm	1 phase, 230 V, 50/60 Hz	97 W	0.73 A	565 m³/h	3300 min⁻¹	44 dB(A)	IP55	340 x 228 x 350 mm	5.5 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
40x20	2-pole, 230 V (2E)	Standard	8013782	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	1 phase, 230 V	n/a	n/a	n/a	2600 min⁻¹	n/a	n/a	n/a	11.25 kg	n/a	138 W	0.6 A	930 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	50 dB(A)	B
40x20	EC motor, type 1	Standard	8052224	-25 to +50 °C	galvanised steel	40x20-1	IPX4	plastic for 30x15-1 and 40x20-1	400 x 200 mm	1 phase, 230 V, 50/60 Hz	91 W	0.69 A	810 m³/h	2470 min⁻¹	43 dB(A)	IP55	440 x 278 x 440 mm	8.3 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
50x25	2-pole, 230 V (2E)	Standard	8013799	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	1 phase, 230 V	n/a	n/a	n/a	2550 min⁻¹	n/a	n/a	n/a	17.88 kg	n/a	305 W	1.32 A	1720 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	57 dB(A)	not specified
50x25	EC motor, type 1	Standard	8052248	-25 to +50 °C	galvanised steel	50x25-1	IPX4	plastic for 30x15-1 and 40x20-1	500 x 250 mm	1 phase, 200 to 277 V, 50/60 Hz	252 W	1.85 A	1590 m³/h	2500 min⁻¹	45 dB(A)	IP54	540 x 328 x 530 mm	15.7 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
50x25	EC motor, type 1	max	8052255	-25 to +50 °C	galvanised steel	50x25-1	n/a	n/a	n/a	1 phase, 230 V, 50/60 Hz	n/a	n/a	n/a	3100 min⁻¹	51 dB(A)	n/a	540 x 328 x 530 mm	17.9 kg	500 x 250 mm	555 W	4.1 A	2480 m³/h	IPX4 / IP54	n/a	n/a	n/a	n/a	n/a	n/a
50x30	4-pole, 230 V (4E)	Standard	8013829	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	1 phase, 230 V	n/a	n/a	n/a	1390 min⁻¹	n/a	n/a	n/a	19.8 kg	n/a	140 W	0.57 A	1700 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	53 dB(A)	not specified
50x30	4-pole, 400 V (4D)	Standard	8013805	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	3 phases, 400 V	n/a	n/a	n/a	1360 min⁻¹	n/a	n/a	n/a	19.8 kg	n/a	136 W	0.34 A	1380 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	52 dB(A)	not specified
60x30	4-pole, 230 V (4E)	Standard	8013850	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	1 phase, 230 V	n/a	n/a	n/a	1400 min⁻¹	n/a	n/a	n/a	27.77 kg	n/a	220 W	0.9 A	2470 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	52 dB(A)	not specified
60x30	4-pole, 400 V (4D)	Standard	8013836	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	3 phases, 400 V	n/a	n/a	n/a	1360 min⁻¹	n/a	n/a	n/a	27.77 kg	n/a	230 W	0.52 A	2530 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	51 dB(A)	not specified
60x30	EC motor, type 1	Standard	8052279	-25 to +50 °C	galvanised steel	60x30-1	IPX4	plastic for 30x15-1 and 40x20-1	600 x 300 mm	1 phase, 200 to 277 V, 50/60 Hz	326 W	2.45 A	2545 m³/h	2000 min⁻¹	48 dB(A)	IP54	640 x 407 x 650 mm	24.1 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
60x35	4-pole, 230 V (4E)	Standard	8013881	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	1 phase, 230 V	n/a	n/a	n/a	1370 min⁻¹	n/a	n/a	n/a	36.38 kg	n/a	470 W	2.37 A	2950 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	52 dB(A)	not specified
60x35	4-pole, 230 V (4E)	max	8086861	-30 to +60 °C	galvanised steel	n/a	n/a	n/a	n/a	1 phase, 220 to 240 V	n/a	n/a	n/a	n/a	n/a	n/a	640 x 390 x 652 mm	30 kg	600 x 350 mm	n/a	n/a	n/a	IPX4 / IP44	n/a	n/a	indoor rooms, 0 to +45 °C, max. 80% relative humidity	n/a	n/a	n/a
60x35	4-pole, 400 V (4D)	Standard	8013867	n/a	galvanised steel, with inspection flap	n/a	IPX4, motor IP44	n/a	n/a	3 phases, 400 V (star connection)	n/a	n/a	n/a	1235 min⁻¹	n/a	n/a	n/a	36.38 kg	n/a	380 W	0.7 A	2660 m³/h	n/a	50 Hz (values in the table); according to the operating manual for 50/60 Hz mains	20 mm wide, with holes for fixing bolts	indoor rooms, 0 to 45 °C, relative humidity up to 80%	any	50 dB(A)	not specified
60x35	EC motor, type 1	Standard	8052286	-25 to +50 °C	galvanised steel	60x35-1	IPX4	plastic for 30x15-1 and 40x20-1	600 x 350 mm	1 phase, 200 to 277 V, 50/60 Hz	361 W	2.62 A	2815 m³/h	2000 min⁻¹	49 dB(A)	IP54	640 x 457 x 650 mm	25.2 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
60x35	EC motor, type 3	max	8052293	-25 to +50 °C	galvanised steel	60x35-3	n/a	n/a	n/a	3 phases, 400 V, 50/60 Hz	n/a	n/a	n/a	3160 min⁻¹	55 dB(A)	n/a	640 x 512 x 650 mm	36 kg	600 x 350 mm	1308 W	2.35 A	4290 m³/h	IPX4 / IP54	n/a	n/a	n/a	n/a	n/a	n/a
70x40	4-pole, 400 V (4D)	Standard	8086878	-30 to +60 °C	galvanised steel	n/a	n/a	n/a	n/a	3 phases, 400 V	n/a	n/a	n/a	1418 min⁻¹	57 dB(A)	n/a	740 x 440 x 753 mm	41 kg	700 x 400 mm	828 W	1.62 A	5580 m³/h	IPX4 / IP44	50 Hz	n/a	indoor rooms, 0 to +45 °C, max. 80% relative humidity	n/a	n/a	n/a
70x40	EC motor, type 1	Standard	8052309	-25 to +50 °C	galvanised steel	70x40-1	IPX4	plastic for 30x15-1 and 40x20-1	700 x 400 mm	1 phase, 200 to 277 V, 50/60 Hz	795 W	3.48 A	5710 m³/h	1400 min⁻¹	53 dB(A)	IP54	740 x 496 x 750 mm	42.2 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
70x40	EC motor, type 3	max	8052316	-25 to +50 °C	galvanised steel	70x40-3	n/a	n/a	n/a	3 phases, 400 V, 50/60 Hz	n/a	n/a	n/a	2530 min⁻¹	57 dB(A)	n/a	740 x 555 x 750 mm	43 kg	700 x 400 mm	2748 W	2.8 A	6810 m³/h	IPX4 / IP54	n/a	n/a	n/a	n/a	n/a	n/a
80x50	EC motor, type 3	Standard	8052323	-25 to +50 °C	galvanised steel	80x50-3	IPX4	plastic for 30x15-1 and 40x20-1	800 x 500 mm	3 phases, 380 to 480 V, 50/60 Hz	2025 W	2.01 A	8395 m³/h	1470 min⁻¹	60 dB(A)	IP54	840 x 614 x 850 mm	62.3 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
90x50	EC motor, type 3	max	8052347	-25 to +50 °C	galvanised steel	90x50-3	n/a	n/a	n/a	3 phases, 380 to 480 V, 50/60 Hz	n/a	n/a	n/a	1800 min⁻¹	66 dB(A)	n/a	940 x 656 x 950 mm	72.0 kg	900 x 500 mm	3429 W	5.00 A	11190 m³/h	IPX4 / IP54	n/a	n/a	n/a	n/a	n/a	n/a

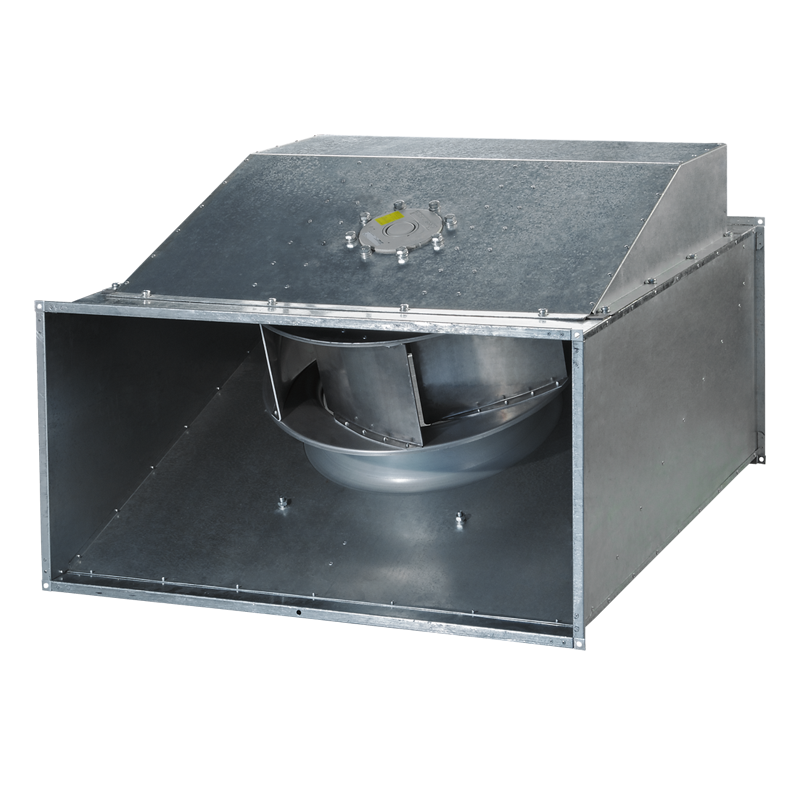

100x50	4-pole, 400 V (4D)	Standard	8055911	-30 to +60 °C	galvanised steel	n/a	n/a	n/a	n/a	3 phases, 400 V, 50 Hz	n/a	n/a	15000 m³/h	1370 min⁻¹	70 dB(A)	n/a	1040 x 720 x 1150 mm	126 kg	1000 x 500 mm	4300 W	6.8 A	n/a	IPX4 / IP44	n/a	n/a	indoor rooms, 0 to +45 °C, max. 80% relative humidity	n/a	n/a	n/a
100x50	6-pole, 400 V (6D)	Standard	8086892	-25 to +50 °C	galvanised steel	n/a	n/a	n/a	n/a	3 phases, 400 V, 50 Hz	n/a	n/a	10500 m³/h	900 min⁻¹	69 dB(A)	n/a	1040 x 720 x 1150 mm	120 kg	1000 x 500 mm	1198 W	2.7 A	n/a	IPX4 / IP44	n/a	n/a	indoor rooms, 0 to +45 °C, max. 80% relative humidity	n/a	n/a	n/a
100x50	EC motor, type 3	max	8052354	-25 to +50 °C	galvanised steel	100x50-3	n/a	n/a	n/a	3 phases, 380 to 480 V, 50/60 Hz	n/a	n/a	n/a	1800 min⁻¹	66 dB(A)	n/a	1040 x 656 x 950 mm	77.0 kg	1000 x 500 mm	3429 W	5.00 A	11190 m³/h	IPX4 / IP54	n/a	n/a	n/a	n/a	n/a	n/a

Applies to 40x20 / 2-pole, 230 V (2E) / Standard, 50x25 / 2-pole, 230 V (2E) / Standard, 50x30 / 4-pole, 230 V (4E) / Standard, 50x30 / 4-pole, 400 V (4D) / Standard, 60x30 / 4-pole, 230 V (4E) / Standard, 60x30 / 4-pole, 400 V (4D) / Standard, 60x35 / 4-pole, 230 V (4E) / Standard, 60x35 / 4-pole, 230 V (4E) / max, 60x35 / 4-pole, 400 V (4D) / Standard, 70x40 / 4-pole, 400 V (4D) / Standard, 100x50 / 4-pole, 400 V (4D) / Standard and 100x50 / 6-pole, 400 V (6D) / Standard:

Mains frequency	Power consumption	Current consumption	Max. airflow	Speed	Sound pressure level at 3 m
50 Hz	447 W	1.97 A	4070 m³/h	1380 min⁻¹	54 dB(A)
60 Hz	679 W	2.99 A	4500 m³/h	1600 min⁻¹	56 dB(A)

Features

Inspection hatch in the housing for inspection and maintenance of the motor; built-in terminal box with sealed cable entry.
Asynchronous external rotor motor with ball bearings, impeller with backward-curved blades, dynamically balanced.
According to the manufacturer, overheating protection is provided, depending on the version, by a built-in thermal switch with automatic restart or by terminals led out for external protective devices.
Speed control steplessly via an external thyristor controller or in steps via an external autotransformer (both available separately).
Installation in the ventilation duct in any position. According to the manufacturer, if the fan is connected via flexible connectors, it must be secured with brackets, suspensions or supports; the inspection hatch must remain accessible. A round duct connection at the outlet flange is possible with a separately available adapter.
According to the operating manual, designed for continuous operation and intended as a component of a ventilation system, not for stand-alone operation.
Scope of delivery according to the operating manual: fan and operating manual.
EC external rotor motor with centrifugal impeller with backward-curved blades, dynamically balanced, with overheating protection and automatic restart.

Note on variants

Select the duct connection, motor and version. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.

The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.
