Blauberg Axis-Q and Axis-QR Axial Wall Fan

Name: Blauberg Axis-Q and Axis-QR Axial Wall Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8013126
Price: 204.68 EUR
Availability: InStock

204^{68 €} ~~267^{49 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Axis-Q and Axis-QR Axial Wall Fan: axial wall fan from Blauberg with external rotor motor, with square (Axis-Q) or round mounting plate (Axis-QR), for supply and exhaust air systems with large air volumes at low resistance. Options under mounting plate: square (Axis-Q) and round (Axis-QR).

The versions in detail

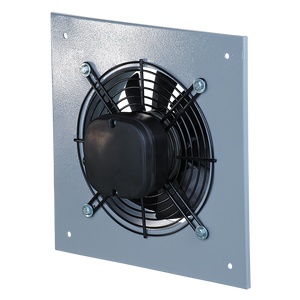

square (Axis-Q): Blauberg Axis-Q is an axial wall fan with a square mounting plate. According to the manufacturer, it is intended for supply and extract air systems of various rooms and for moving large air volumes at low resistance in the ventilation system, as well as for cooling condensing units. It is driven by an asynchronous motor with external rotor, single-phase (E) or three-phase (D) depending on the version.

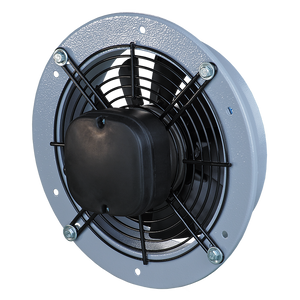

round (Axis-QR): Blauberg Axis-QR is an axial fan with a round mounting plate for wall mounting. According to the operating manual, it consists of a housing with a round flange and a protective grille to which the external rotor motor and impeller are attached; the airflow direction depends on the motor type.

Technical data

Data per version:

Feature	square (Axis-Q)	round (Axis-QR)
Mains frequency	50 Hz (values in the table)	not specified
Temperature of the conveyed air	-30 to 60 °C (at 50 Hz)	not specified
Housing	steel with weather-resistant polymer coating, square mounting plate with round flange	not specified
Impeller	axial impeller made of steel, polymer coated	not specified
Mounting position	any, according to the airflow direction	not specified
Power supply	not specified	single-phase motor (E): 230 V, 50/60 Hz; three-phase motor (D): 400 V, 50/60 Hz
Protection class	not specified	I
Design	not specified	housing with round mounting plate (6 fixing holes), protective grille with external rotor motor and impeller

Note on variants

Select mounting plate, connection diameter (ø mm) and motor version. Not every combination is available.

Mounting plate	Connection diameter (Ø mm)	Motor version	Item number	Power supply	Power consumption	Current consumption	Maximum airflow	Speed	LpA at 3 m	Weight
square (Axis-Q)	200 mm	2-pole (230 V single-phase)	8013126	1 phase, 230 V	55 W	0.26 A	860 m³/h	2300 min⁻¹	48 dB(A)	3.0 kg
square (Axis-Q)	250 mm	2-pole (400 V three-phase)	8013133	3 phases, 400 V	80 W	0.22 A	1060 m³/h	2600 min⁻¹	51 dB(A)	4.0 kg
square (Axis-Q)	250 mm	2-pole (230 V single-phase)	8013140	1 phase, 230 V	80 W	0.4 A	1050 m³/h	2400 min⁻¹	50 dB(A)	4.0 kg
square (Axis-Q)	250 mm	4-pole (400 V three-phase)	8013157	3 phases, 400 V	60 W	0.17 A	850 m³/h	1400 min⁻¹	38 dB(A)	3.5 kg
square (Axis-Q)	250 mm	4-pole (230 V single-phase)	8013164	1 phase, 230 V	50 W	0.22 A	800 m³/h	1380 min⁻¹	38 dB(A)	3.5 kg
square (Axis-Q)	300 mm	2-pole (400 V three-phase)	8013188	3 phases, 400 V	145 W	0.25 A	2310 m³/h	2350 min⁻¹	52 dB(A)	5.4 kg
square (Axis-Q)	300 mm	2-pole (230 V single-phase)	8013195	1 phase, 230 V	145 W	0.66 A	2230 m³/h	2300 min⁻¹	53 dB(A)	6.1 kg
square (Axis-Q)	300 mm	4-pole (400 V three-phase)	8013201	3 phases, 400 V	75 W	0.22 A	1310 m³/h	1380 min⁻¹	45 dB(A)	5.4 kg
square (Axis-Q)	300 mm	4-pole (230 V single-phase)	8013218	1 phase, 230 V	75 W	0.35 A	1340 m³/h	1350 min⁻¹	44 dB(A)	5.0 kg
square (Axis-Q)	350 mm	4-pole (400 V three-phase)	8013232	3 phases, 400 V	140 W	0.38 A	2520 m³/h	1380 min⁻¹	46 dB(A)	7.8 kg
square (Axis-Q)	350 mm	4-pole (230 V single-phase)	8013249	1 phase, 230 V	140 W	0.65 A	2500 m³/h	1380 min⁻¹	46 dB(A)	7.8 kg
square (Axis-Q)	400 mm	4-pole (400 V three-phase)	8013263	3 phases, 400 V	180 W	0.47 A	3740 m³/h	1380 min⁻¹	54 dB(A)	8.8 kg
square (Axis-Q)	400 mm	4-pole (230 V single-phase)	8013270	1 phase, 230 V	180 W	0.82 A	3580 m³/h	1380 min⁻¹	53 dB(A)	8.8 kg
square (Axis-Q)	450 mm	4-pole (400 V three-phase)	8013294	3 phases, 400 V	250 W	0.6 A	5280 m³/h	1360 min⁻¹	56 dB(A)	10.5 kg
square (Axis-Q)	450 mm	4-pole (230 V single-phase)	8013317	1 phase, 230 V	250 W	1.2 A	4680 m³/h	1350 min⁻¹	56 dB(A)	10.5 kg
square (Axis-Q)	500 mm	4-pole (400 V three-phase)	8027895	3 phases, 400 V	450 W	0.9 A	6570 m³/h	1300 min⁻¹	60 dB(A)	14.0 kg
square (Axis-Q)	500 mm	4-pole (230 V single-phase)	8013331	1 phase, 230 V	420 W	1.95 A	7060 m³/h	1300 min⁻¹	58 dB(A)	14.0 kg
square (Axis-Q)	550 mm	4-pole (400 V three-phase)	8029875	3 phases, 400 V	750 W	1.5 A	9700 m³/h	1350 min⁻¹	64 dB(A)	16.5 kg
square (Axis-Q)	550 mm	4-pole (230 V single-phase)	8013348	1 phase, 230 V	550 W	2.55 A	8800 m³/h	1300 min⁻¹	62 dB(A)	16.5 kg
square (Axis-Q)	630 mm	4-pole (400 V three-phase)	8013355	3 phases, 400 V	800 W	1.6 A	12,200 m³/h	1320 min⁻¹	69 dB(A)	20.0 kg
square (Axis-Q)	630 mm	4-pole (230 V single-phase)	8013379	1 phase, 230 V	750 W	3.5 A	11,900 m³/h	1360 min⁻¹	67 dB(A)	20.0 kg
square (Axis-Q)	710 mm	6-pole (400 V three-phase)	8067822	3 phases, 400 V	1150 W	2.0 A	15,440 m³/h	830 min⁻¹	63 dB(A)	33.0 kg
square (Axis-Q)	800 mm	6-pole (400 V three-phase)	8067846	3 phases, 400 V	1850 W	3.7 A	25,000 m³/h	915 min⁻¹	67 dB(A)	44.0 kg
round (Axis-QR)	500 mm	4-pole	8068010							14.0 kg
round (Axis-QR)	550 mm	4-pole	8068034							16.5 kg

Features

square (Axis-Q): With connection cable and external terminal box for the power connection.
square (Axis-Q): Motor with ball bearings for continuous operation; integrated thermal overload protection with automatic restart.
square (Axis-Q): Speed control stepless via an external thyristor controller or in steps via an external autotransformer (both available separately).
square (Axis-Q): Wall mounting via the square mounting plate with 4 fixing holes.
round (Axis-QR): According to the operating manual, some models have a cable with terminal box for external connection.
round (Axis-QR): Earthing via M4 threaded hole on the housing and green-yellow wires.
round (Axis-QR): If water can enter, the fan must be protected against splash water, for example by installing it under a roof.
