InoxAir GmbH  |  SKU: ECF1400-1

InoxAir Exhaust Air Cleaning Unit ECF and ALR

2.26799 € 3.14521 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Exhaust Air Cleaning Unit ECF and ALR combines the following versions in one product: ECF exhaust air cleaning unit, ALR exhaust air cleaning unit with motor. Select the required version under Series and then the matching variant under Size. The details for each version are given below.

The versions in detail

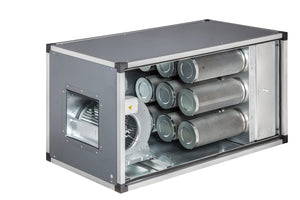

ECF exhaust air cleaning unit: InoxAir Exhaust Air Purification System is an exhaust air cleaning unit with built-in fan, integrated activated carbon filters (activated carbon cartridges) and synthetic heavy particle filters. Available are the ECF compact units with 1400 or 2500 m³/h in single-walled or double-walled design as well as the larger ALR 6000 activated carbon filter module with 6000 m³/h. According to the manufacturer, the units are not suitable for outdoor installation.

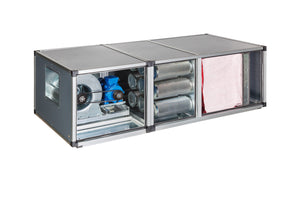

ALR exhaust air cleaning unit with motor: InoxAir exhaust air purification system with motor is an exhaust air cleaning unit of the ALR series (activated carbon filter module) with activated carbon cartridges, pocket filter and built-in fan. It is available for volume flows from 3000 to 12000 m³/h, up to 4500 m³/h either single-walled or double-walled. According to the manufacturer, it is not suitable for outdoor installation.

Technical data
Filters integrated activated carbon filters and synthetic heavy particle filters
Maximum temperature 60 °C at 80% humidity
Installation not suitable for outdoor installation
Source InoxAir catalogue Supply and exhaust ventilation, pp. 216, 217 and 219; inoxair.de; InoxAir catalogue Supply and exhaust ventilation, pp. 218 and 219

Data per version:

Feature ECF exhaust air cleaning unit ALR exhaust air cleaning unit with motor
Design exhaust air cleaning unit with activated carbon filter and fan activated carbon filter module with activated carbon cartridges, pocket filter and fan
Frame aluminium profiles, side panels made of plasticised zinc sheet aluminium profiles, side panels made of plasticised zinc sheet (up to ALR 4500 30 mm, from ALR 6000 40 mm)
Filter capacity per cartridge 200 m³/h at 3 m/s 200 m³/h at up to 3 m/s
Performance data at an air density of 1.2 kg/m³ and clean filters not specified
Speed not specified 1400 rpm
Voltage not specified 400 V, 3 phases, 50 Hz

Note on variants

Select series and size. Not every combination is available.

Series Size Item number Type in the catalogue Max. volume flow Max. pressure Power Activated carbon cartridges Fan Voltage (V/ph/Hz) Dimensions A x B x H Weight Controller according to the catalogue Catalogue page
ECF Abluftreinigungsanlage 1,400 m³/h, double-walled ECF1400-1 ECF 1400 1400 m³/h 100 Pa 0.42 kW 5 VKD 3000 230/1/50 700 x 1300 x 450 mm 65 kg RAE 0500 217
ECF Abluftreinigungsanlage 1,400 m³/h, single-walled ECF1414-1 ECF 1414 1400 m³/h 100 Pa 0.42 kW 5 VKD 3000 230/1/50 700 x 1300 x 450 mm 65 kg RAE 0500 216
ECF Abluftreinigungsanlage 2,500 m³/h, double-walled ECF2500-1 ECF 2500 2500 m³/h 150 Pa 0.42 kW 9 VKD 3001 230/1/50 700 x 1300 x 700 mm 90 kg RAE 0500 217
ECF Abluftreinigungsanlage 2,500 m³/h, single-walled ECF2525-1 ECF 2525 2500 m³/h 150 Pa 0.42 kW 9 VKD 3001 230/1/50 700 x 1300 x 700 mm 90 kg RAE 0500 216
ECF Abluftreinigungsanlage 6,000 m³/h, double-walled ALR6000-1 ALR 6000 6000 m³/h 250 Pa 2.2 kW 18 VT 12/12 400/3/50 1280 x 2150 x 750 mm 310 kg RAD 0700 219
ALR Abluftreinigungsanlage mit Motor 3,000 m³/h, double-walled ALR3000-1 ALR 3000 3000 m³/h 200 Pa 1.1 kW 9 VT 9/9 400/3/50 670 x 2150 x 670 mm 170 kg RAD 0500 219
ALR Abluftreinigungsanlage mit Motor 3,000 m³/h, single-walled ALR3030-1 ALR 3030 3000 m³/h 200 Pa 1.1 kW 9 VT 9/9 400/3/50 670 x 2150 x 670 mm 160 kg RAD 0500 218
ALR Abluftreinigungsanlage mit Motor 4,500 m³/h, double-walled ALR4500-1 ALR 4500 4500 m³/h 200 Pa 1.5 kW 14 VT 10/10 400/3/50 980 x 2150 x 670 mm 215 kg RAD 0500 219
ALR Abluftreinigungsanlage mit Motor 4,500 m³/h, single-walled ALR4545-1 ALR 4545 4500 m³/h 200 Pa 1.5 kW 14 VT 10/10 400/3/50 980 x 2150 x 670 mm 205 kg RAD 0500 218
ALR Abluftreinigungsanlage mit Motor 12,000 m³/h, double-walled ALR12000-1 ALR 12000 12000 m³/h 200 Pa 4.0 kW 36 VT 15/15 400/3/50 1280 x 2300 x 1280 mm 440 kg RAD 1000 219
ALR Abluftreinigungsanlage mit Motor 7,500 m³/h, double-walled ALR7500-1 ALR 7500 7500 m³/h 250 Pa 3.0 kW 23 VT 15/15 400/3/50 1590 x 2200 x 850 mm 350 kg RAD 1000 219
ALR Abluftreinigungsanlage mit Motor 9,000 m³/h, double-walled ALR9000-1 ALR 9000 9000 m³/h 200 Pa 3.0 kW 28 VT 15/15 400/3/50 1280 x 2200 x 980 mm 390 kg RAD 1000 219

Features
  • ECF exhaust air cleaning unit: Single-walled design (ECF 1414, ECF 2525, ECOline according to the catalogue): single-walled panels, removable, with inspection opening.
  • ECF exhaust air cleaning unit: Double-walled design (ECF 1400, ECF 2500, PROFIline): 30 mm panels, double-walled, removable, with inspection opening, heat and sound insulated with polyurethane insulation.
  • Motor mounted on silent blocks.
  • According to inoxair.de, the matching controller is not included in the scope of supply; the catalogue names the associated controller in each case (see table).
  • ECF exhaust air cleaning unit: As accessories, the catalogue lists diffuser chambers for the inlet and outlet side (DFK, reduction of the air velocity to below 3 m/s) and weather protection hoods (WSH).
  • ALR exhaust air cleaning unit with motor: Single-walled design (ALR 3030, ALR 4545, ECOline according to the catalogue): single-walled panels, removable, with inspection opening.
  • ALR exhaust air cleaning unit with motor: Double-walled design (PROFIline): double-walled panels, removable, with inspection opening, heat and sound insulated with polyurethane insulation.
  • ALR exhaust air cleaning unit with motor: Supplied in 2 parts according to the catalogue.
  • ALR exhaust air cleaning unit with motor: As accessories, the catalogue lists diffuser chambers for the inlet and outlet side (DFK) and wall brackets (WKO).
