S&P TG Temperature Sensors for Duct, Room and Pipe Contact

Name: S&P TG Temperature Sensors for Duct, Room and Pipe Contact
Brand: S&P Deutschland GmbH
SKU: 8000132295
Price: 94.99 EUR
Availability: InStock

78^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Type

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

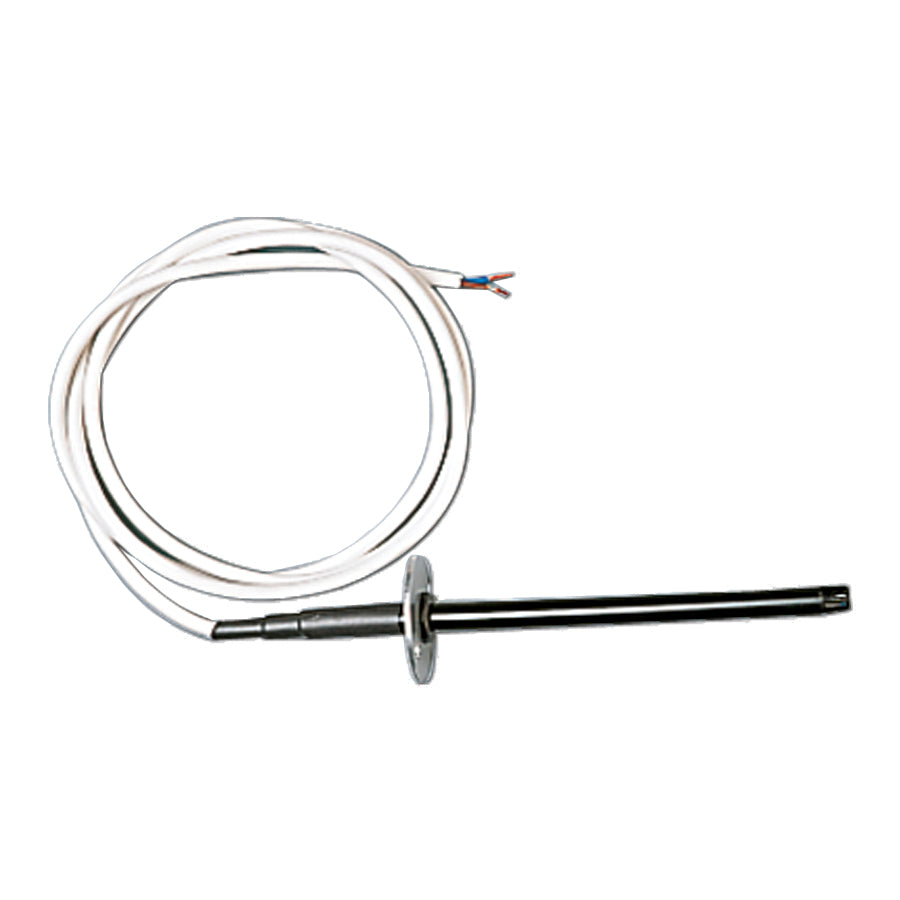

S&P TG Temperature Sensors for Duct, Room and Pipe Contact: temperature sensors from S&P for ventilation controls: duct sensors, contact sensors (also for frost protection) and room temperature sensors. Options under type: TG-K, duct temperature sensor, TG-K NTC 4M, duct temperature sensor, TG-K3/PT1000, duct temperature sensor PT1000, TG-A, contact sensor, TG-A1/PT1000, contact sensor frost protection and TG-R5, room temperature sensor.

The versions in detail

TG-K3/PT1000, duct temperature sensor PT1000: S&P TG-K3/PT1000 is a duct temperature sensor with Pt 1000 sensor from S&P. In the data sheets of the CADB/T-HE PRO-REG ventilation units, S&P lists it as an external supply air sensor that is required as an accessory for the external BA-AF HE, BA-AFC HE and BA-DX HE coils.

TG-A, contact sensor: S&P TG-A is a frost protection sensor (contact sensor) from S&P for the AQUA24 hot water heating coils.

TG-A1/PT1000, contact sensor frost protection: S&P TG-A1/PT1000 is a contact sensor with Pt 1000 sensor from S&P for the frost protection of hot water heating coils on ventilation units with PRO-REG control. In the CADB/T-HE PRO-REG data sheets, S&P lists it as a required accessory for the external BA-AF HE and BA-AFC HE coils, and in the RHE data sheet as a frost protection sensor for an external water coil.

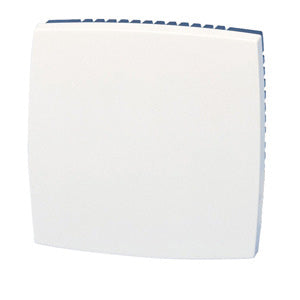

TG-R5, room temperature sensor: S&P TG-R5 is a room temperature sensor (Pt 1000) from S&P. According to S&P, the TG-R5 is only to be used for the CAIB/CAIT PRO-REG series supply air units.

Technical data

Data per version:

Feature	TG-K	TG-K3/PT1000, duct temperature sensor PT1000	TG-A, contact sensor	TG-A1/PT1000, contact sensor frost protection	TG-R5, room temperature sensor
Sensor element	not specified	Pt 1000	not specified	Pt 1000	Pt 1000 Ω
Function	not specified	external supply air sensor	frost protection sensor (contact sensor)	contact sensor for frost protection	not specified
Suitable for	not specified	CADB/T-HE PRO-REG with BA-AF HE, BA-AFC HE or BA-DX HE	AQUA24 hot water heating coils	hot water heating coils on PRO-REG units, for example BA-AF HE and BA-AFC HE (CADB/T-HE PRO-REG) and external water coils on RHE	CAIB/CAIT PRO-REG supply air units

Note on variants

Select the required version under Type.

Type	Item number	Version
TG-K, duct temperature sensor	8000103728	TG-K
TG-K NTC 4M, duct temperature sensor	5416049800	TG-K NTC 4M
TG-K3/PT1000, duct temperature sensor PT1000	8000132257
TG-A, contact sensor	8000102032
TG-A1/PT1000, contact sensor frost protection	8000132295
TG-R5, room temperature sensor	8007030402

Features

TG-K3/PT1000, duct temperature sensor PT1000: According to S&P, required accessory for the external BA-AF HE, BA-AFC HE and BA-DX HE coils on CADB/T-HE PRO-REG
TG-K3/PT1000, duct temperature sensor PT1000: S&P does not state measuring range, degree of protection or dimensions in these documents.
TG-A, contact sensor: Contact sensor for frost protection on hot water heating coils
TG-A, contact sensor: S&P does not state further technical data on the product page.
TG-A1/PT1000, contact sensor frost protection: Contact sensor for monitoring the coil return temperature (frost protection)
TG-A1/PT1000, contact sensor frost protection: S&P does not state measuring range, degree of protection or dimensions in these documents.
TG-R5, room temperature sensor: Only for the CAIB/CAIT PRO-REG supply air units
