S&P ERL Flush-Mounted and Surface-Mounted Housings for Single-Pipe Fans

Name: S&P ERL Flush-Mounted and Surface-Mounted Housings for Single-Pipe Fans
Brand: S&P Deutschland GmbH
SKU: L012110409
Price: 93.49 EUR
Availability: InStock

70^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P ERL Flush-Mounted and Surface-Mounted Housings for Single-Pipe Fans: housings for the S&P ERL single-pipe fans according to DIN 18017 part 3: flush-mounted housings in several versions (also with fire protection) and the surface-mounted housing ERL A without fire protection. 14 versions are available under version.

The versions in detail

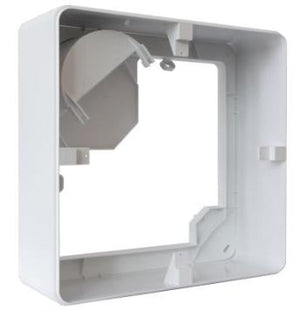

ERL A, surface-mounted housing without fire protection: S&P ERL A is a surface-mounted housing without fire protection made of ABS plastic for the S&P single-duct fans in internal bathrooms, WCs and kitchen-living rooms. Part of the modular S&P single-duct fan system for extracting air from internal bathrooms, WCs and kitchen-living rooms according to DIN 18017 Part 3.

Technical data

Data per version:

Feature	ERL U flush-mounted housings	ERL A, surface-mounted housing without fire protection
Type	not specified	ERL A
Material	not specified	ABS plastic (fire class B2)
Fire protection	not specified	no
Dimensions L x W x D	not specified	260 x 260 x 130 mm
Connection to exhaust duct	not specified	80 to 100 mm
Approval	not specified	Z-51.1-48 DIBt Berlin

Note on variants

Select the required version under Version.

Version	Item number	Material	External dimensions H x W x D	Outlet spigot

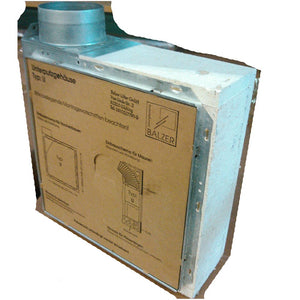

ERL U	8020283603	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75
ERL U/BU	8020283614	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75

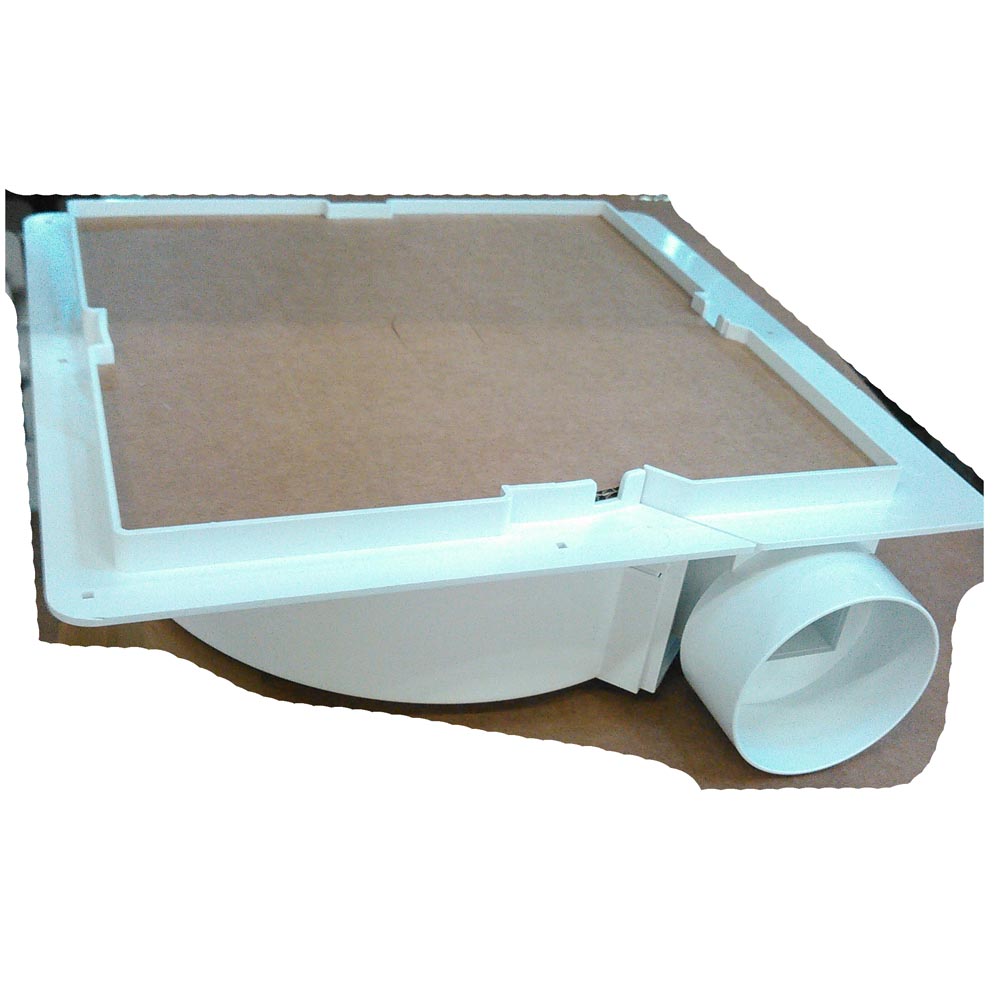

ERL UK-N	L012110407	ABS plastic (fire class B2)	270 x 290 x 83 mm	plastic, DN 75
ERL UKH	L012110414	n/a	n/a	n/a
ERL UKHL	L012110415	n/a	n/a	n/a
ERL UKHR	L012110416	n/a	n/a	n/a
ERL UKL	L012110412	n/a	n/a	n/a
ERL UKR	L012110413	n/a	n/a	n/a
ERL UL	8020283604	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75
ERL UL/BU	8020283615	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75

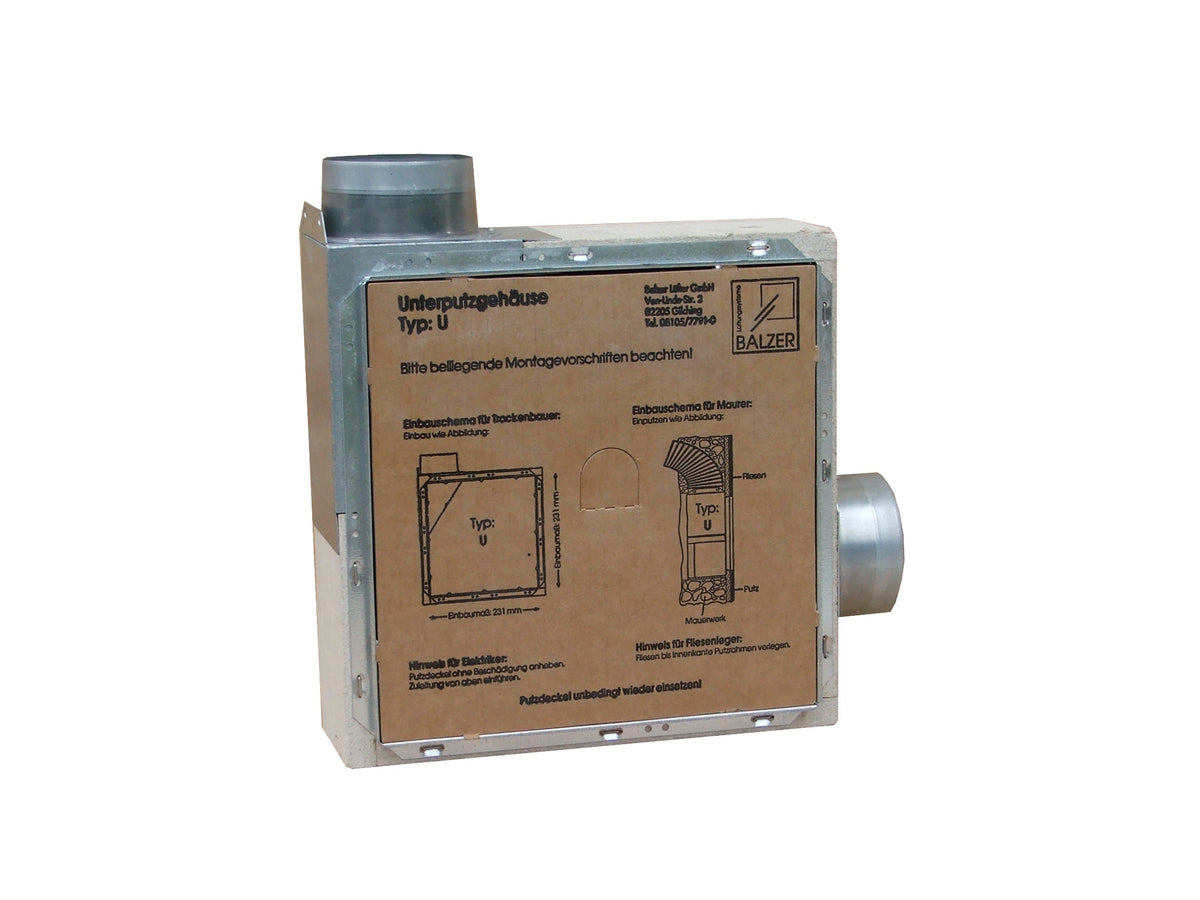

ERL UR	8020283605	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75
ERL UR/BU	8020283616	15 mm A1 calcium silicate fire protection boards	255 x 255 x 95 mm	sheet steel, DN 75

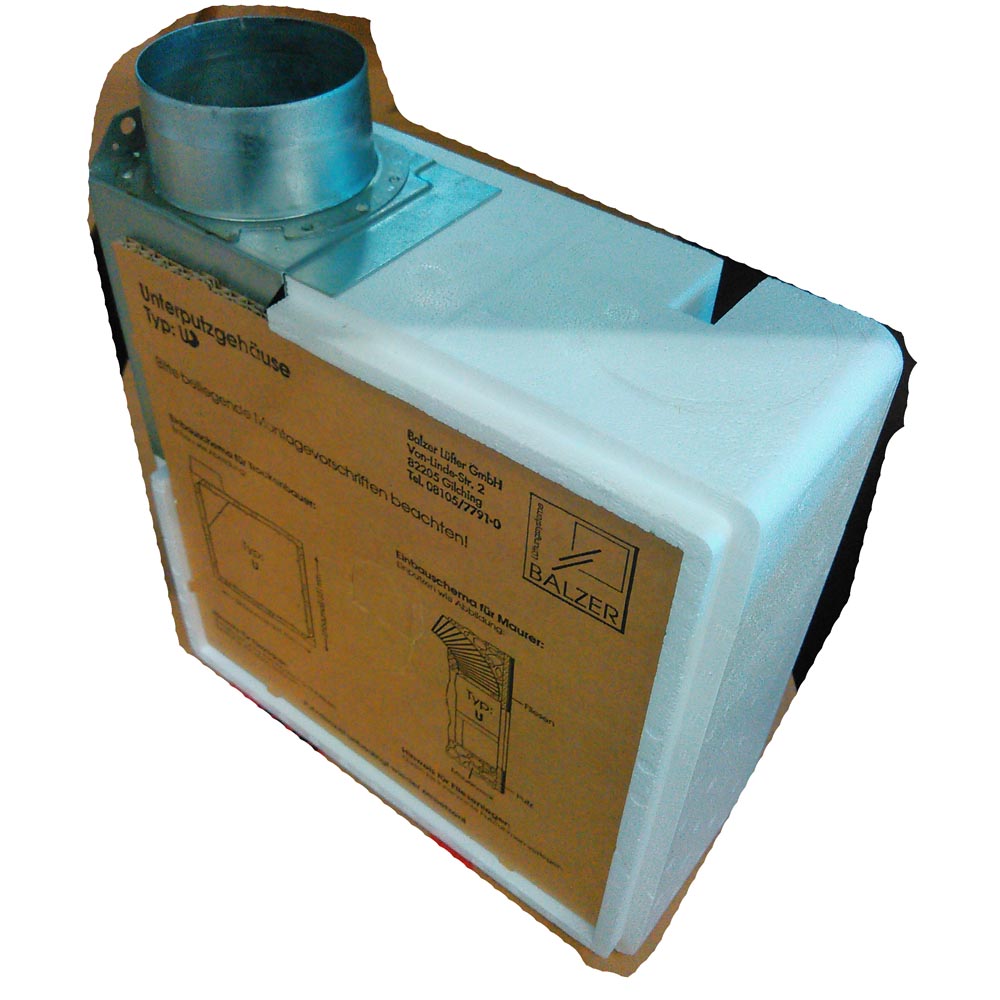

ERL US	8020283617	EPS	255 x 255 x 105 mm	sheet steel, DN 75
ERL A, surface-mounted housing without fire protection	L012110409	ABS plastic (fire class B2)

Features

ERL U flush-mounted housings: Variable installation depth, as no fixed connection to the fan facade is required.
ERL U flush-mounted housings: Supplied with a wet-strength plaster protection cover.
ERL U flush-mounted housings: Fan insert (L-G, L-W or L-G-EC) and, for AC fans, a VENTO.TRONIK control module are required separately.
ERL U flush-mounted housings: Optionally with mounting bracket ERL M for drywall, shafts or suspended ceilings.
ERL A, surface-mounted housing without fire protection: According to S&P, can be combined with the fire protection shut-off device BA.
ERL A, surface-mounted housing without fire protection: A flush exhaust duct DN 80 to 100 is required for installation.
ERL A, surface-mounted housing without fire protection: Suitable for the fan inserts L-G, L-W and L-G-EC; fan insert and, if applicable, control module required separately.
